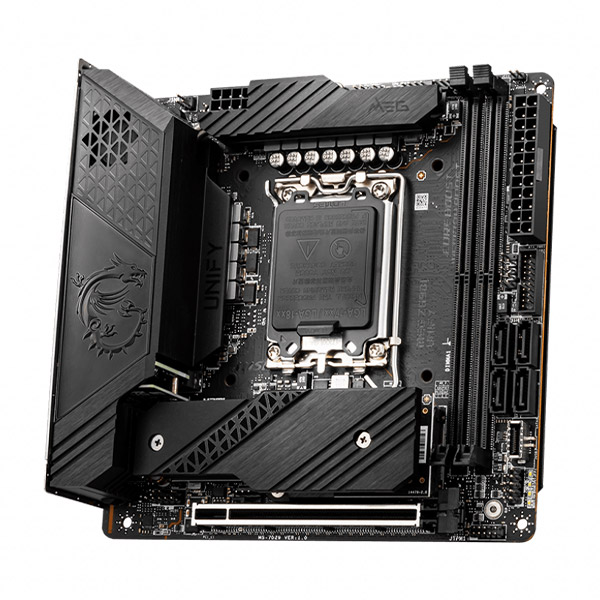

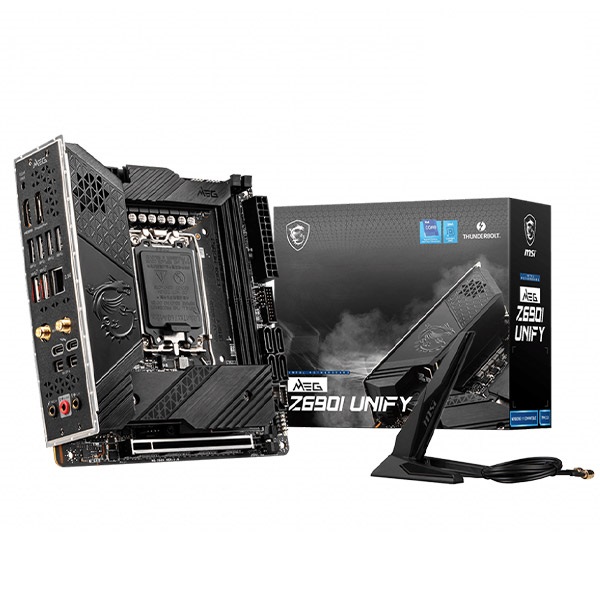

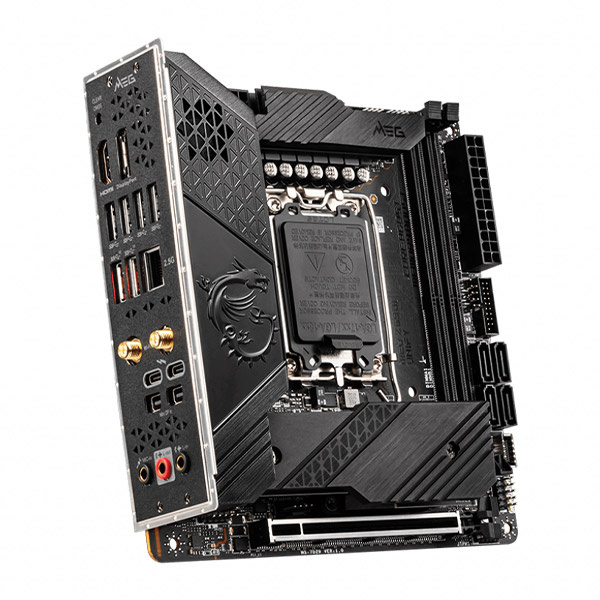

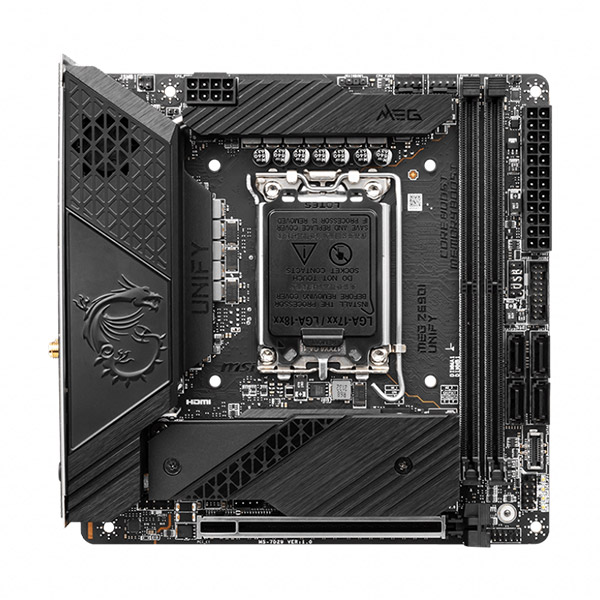

MSI MEG Z690I Unify WiFi INTEL 12TH GENERATION Z690 Mini-ITX LGA 1700 Socket DDR5 RAM and PCIE 5 Support Gaming Motherboard
Features :
- Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance in MSI MEG Z690I Unify WiFi
- Extreme Power Design: Premium digital PWM, direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III to unleash the true power of your processors.
- Triple M.2 Connectors : Onboard triple M.2 connectors for the maximum storage performance with dual Lightning Gen 4 solution.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- 12 Layer Server Grade PCB Design: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
Overview :
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture.
Lightning Gen 5
The latest PCIe 5.0 solution in MSI MEG Z690I Unify WiFi with up to 128GB/s bandwidth for maximum transfer speed.
Direct 10+1+1 Phases with 105A SPS
Extreme direct power solution with 10+1+1 phases and 105A Smart Power Stage unleash the maximum CPU performance.
Triple M.2 Connectors
Onboard 3x M.2 connectors with dual PCIe 4.0 solution, strengthened by M.2 Shield Frozr.
Outstanding Cooling Solution
The MSI MEG Z690I Unify WiFi has Frozr Heatsink, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Cover & Backplate ensure the extreme performance with low temp.
Front Lightning USB 20G
USB 3.2 Gen 2×2 port offers 20Gbps transmission speed, 4x faster then USB 3.2 Gen 1, available when connecting the front USB Type-C.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.
SMT PCIE and Memory Slot
The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, deliver the clean and pure signal in MSI MEG Z690I Unify WiFi.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology in MSI MEG Z690I Unify WiFi
Wi-Fi 6E
The latest wireless solution provided in MSI MEG Z690I Unify WiFi supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1700 |
| CHIPSET | Intel® Z690 Chipset |
| DDR4 MEMORY | 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 |
| SATAIII | 4 |
| M.2 SLOT | 3 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225V 2.5Gbps LAN controller |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E module |

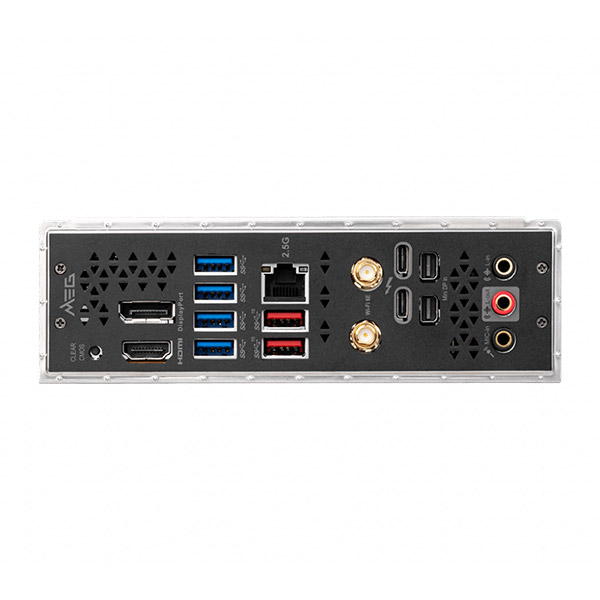

| THUNDERBOLT 4 | 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports |
| USB 3.2 PORTS (FRONT) | 1(Gen2x2, Type C), 2(Gen1, Type A) |
| USB 3.2 PORTS (REAR) | 2(Gen2, Type A), 4(Gen1, Type A) |
| USB 2.0 PORTS (FRONT) | 2 |
| AUDIO PORTS (REAR) | 7.1-Channel High Definition Audio (Realtek® ALC4080 Codec) |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | Mini-ITX |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
