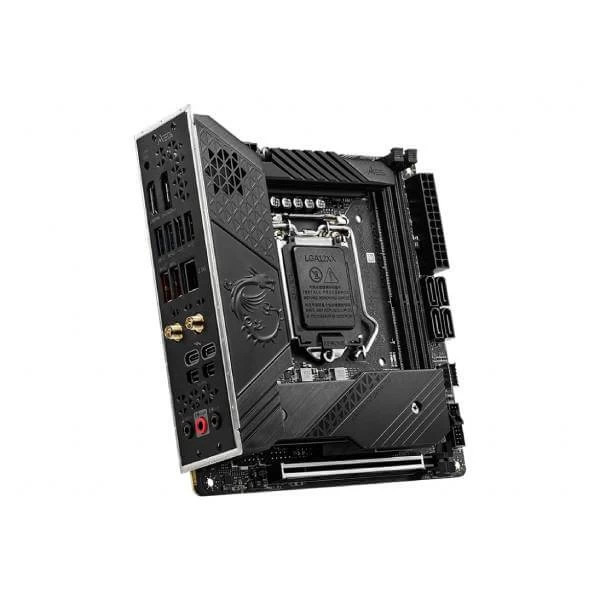

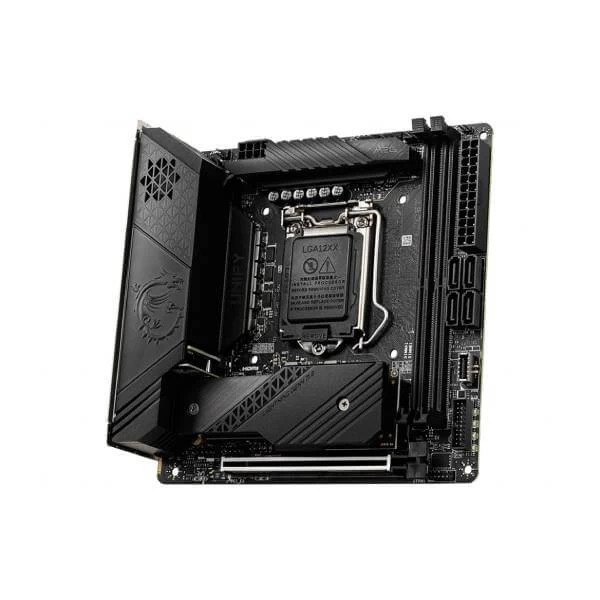

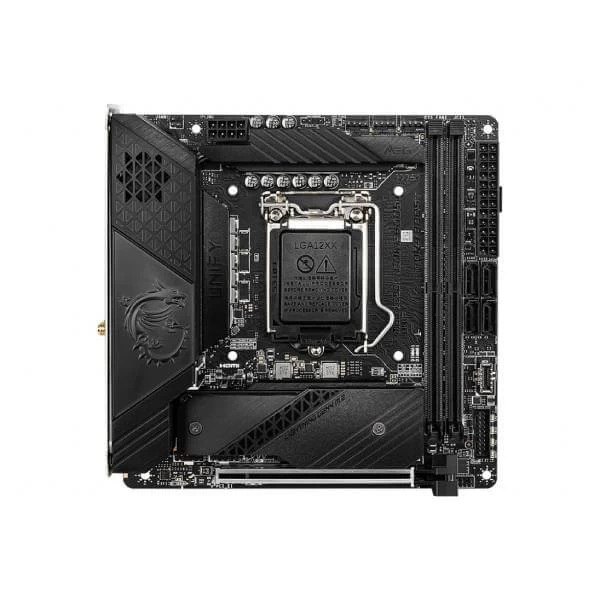

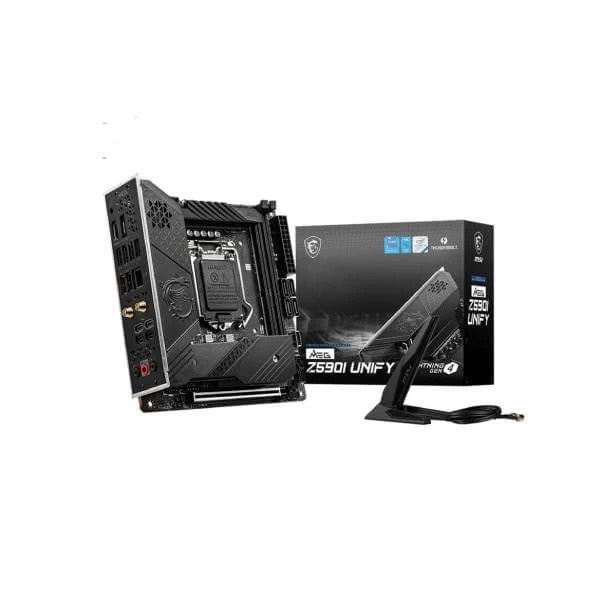

MSI MEG Z590I Unify WiFi INTEL 11TH GENERATION Z590 ATX LGA 1200 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5600(OC) MHz
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Extreme Power Design: INTERSIL digital PWM, direct 8 phases with 90A Smart Power Stage and Titanium Choke III unleash the true power of your processors.
- Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover and M.2 Shield Frozr ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Twin M.2 Connectors : Onboard dual M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution.
- 10 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Pre-installed I/O Shield: Better EMI protection and more convenience for installation
10 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise for MSI MEG Z590I Unify WiFi
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s
bandwidth for maximum transfer speed.
Direct 8 Phases with 90A SPS
INTERSIL digital PWM, direct 8 phases with 90A Smart Power
Stage, Titanium Choke III and Core Boost to unleash the
maximum performance.
Frozr Heatsink Design
Designed with double ball bearings to provide best performance
for enthusiast gamers and prosumers.
Aluminum Cover
Fully aluminum IO cover provide the maximum surface of heat
dissipation, ready for breaking the world record!
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Dual M.2 Connectors
Onboard dual M.2 connectors for the maximum storage
performance with one Lightning Gen 4 solution.
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chaining and Multi-Port
Accessory Architecture.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z590 Chipset |
| DDR4 MEMORY | 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 |
| SATAIII | 4 |
| M.2 SLOT | 2 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210 |

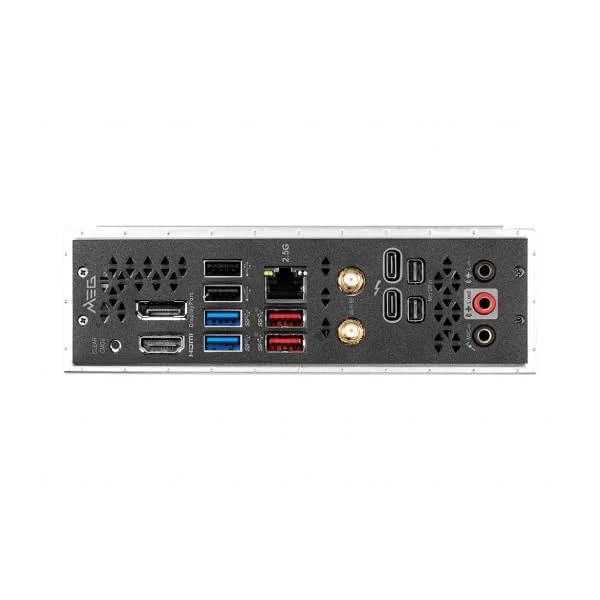

| THUNDERBOLT 4 | 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports |
| USB 3.2 PORTS (FRONT) | 1(Gen2, Type C), 2(Gen1, Type A) |
| USB 3.2 PORTS (REAR) | 2(Gen2, Type A), 2(Gen1, Type A) |
| USB 2.0 PORTS (FRONT) | 2 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | Realtek® ALC1220P Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | Mini-ITX |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
