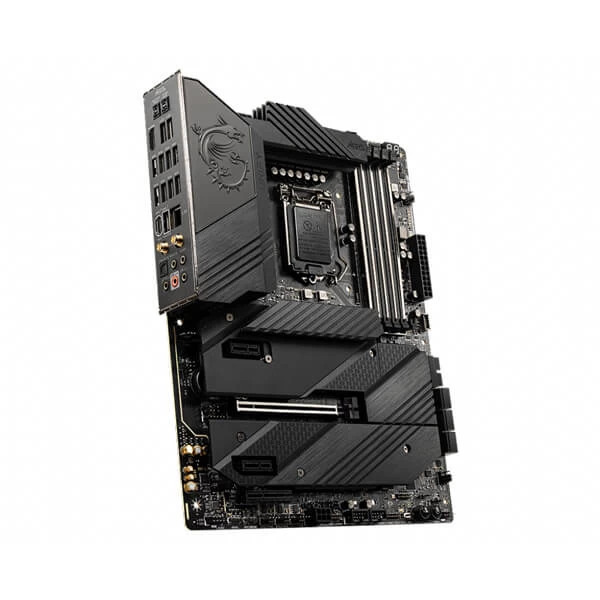

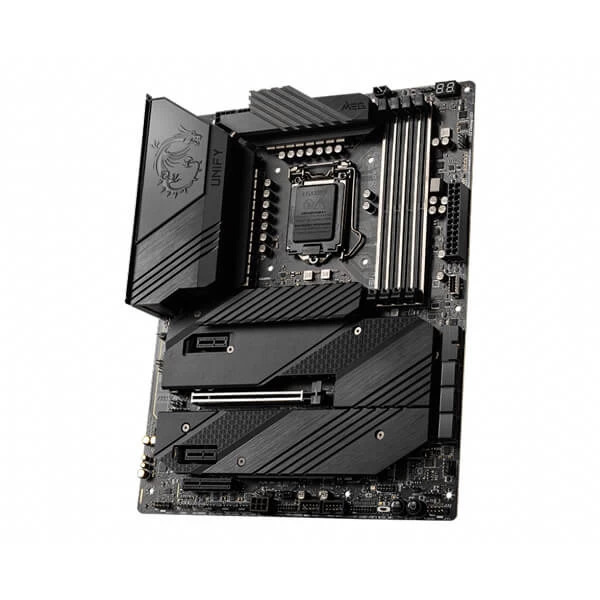

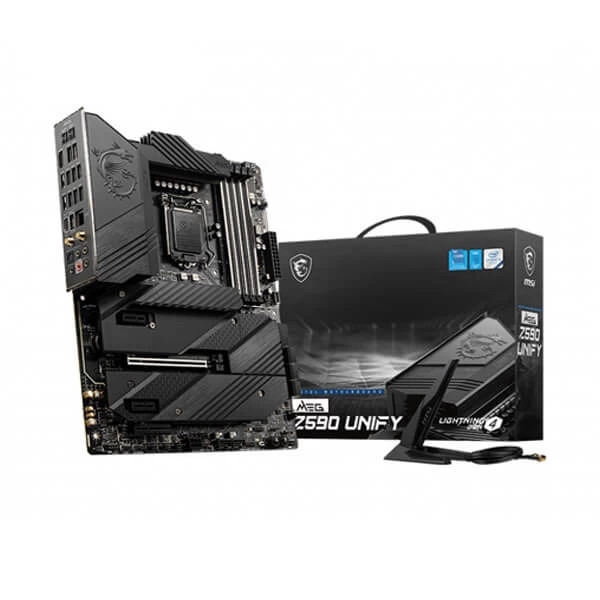

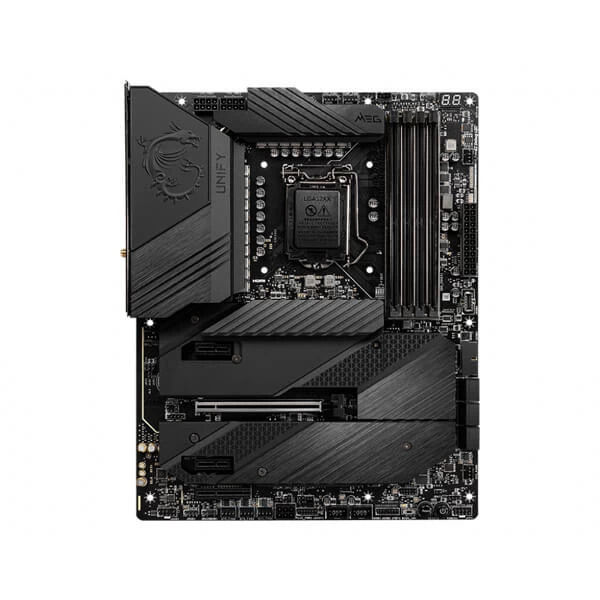

MSI MEG Z590 Unify WiFi INTEL 11TH GENERATION Z590 ATX LGA 1200 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5600(OC) MHz
- Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
Extreme Power Design
INTERSIL digital PWM, 16+2+1 phases with 90A SPS, Mirrored
Power Arrangement and dual CPU power connectors to unleash
the maximum performance.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance with three Lightning Gen 4 solution.
Triple Lightning Gen4 M.2
Maximum onboard triple Gen4 M.2 solution provides multiple
configurations for demanding gamers and power users.
Outstanding Cooling Solution
Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads,
M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme
performance with low temp.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Smart Button
Reset Computer, Safe Boot, Turbo Fan and EZ LED control
functions with just one click.
Audio Boost 5
Isolated audio with a high quality audio processor & amp for the
most immersive gaming experience
8 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise for MSI MEG Z590 Unify WiFi
Specifications :
CPU (MAX SUPPORT) | i9 |
SOCKET | 1200 |
CHIPSET | Intel® Z590 Chipset |
DDR4 MEMORY | 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
MEMORY CHANNEL | Dual |
DIMM SLOTS | 4 |
MAX MEMORY (GB) | 128 |
PCI-E X16 | 1 |
PCI-E X4 | 1 |
PCI-E X1 | 2 |
SATAIII | 6 |
M.2 SLOT | 4 |
RAID | 0/1/5/10 |
LAN | 1x Intel® I225-V 2.5G LAN |
WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210 |
USB 3.2 PORTS (FRONT) | 1(Gen2, Type C), 2(Gen1, Type A) |

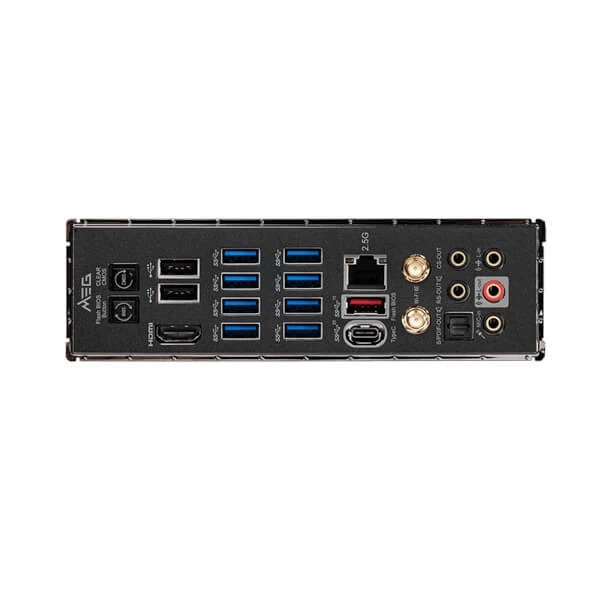

USB 3.2 PORTS (REAR) | 1(Gen2x2, Type C), 1(Gen2, Type A), 8(Gen1, Type A) |
USB 2.0 PORTS (FRONT) | 4 |
USB 2.0 PORTS (REAR) | 2 |
AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC4080 Codec) |
HDMI | 1 |
DIRECTX | 12 |
FORM FACTOR | ATX |
CROSSFIRE | Y |
OPERATING SYSTEM | Support for Windows® 10 64-bit |
