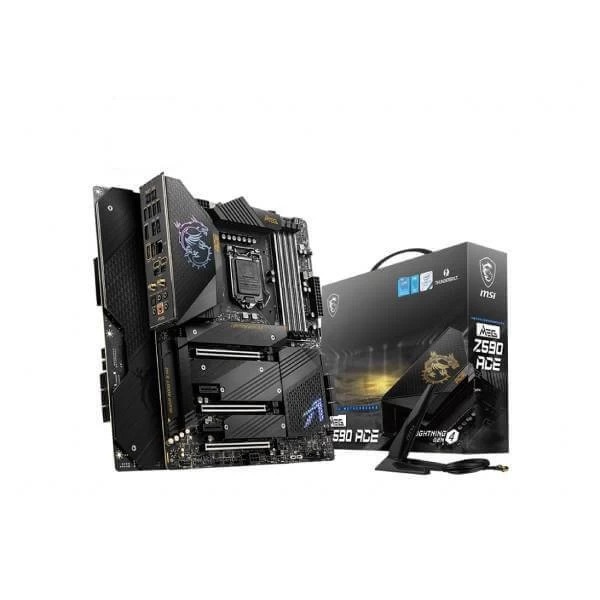

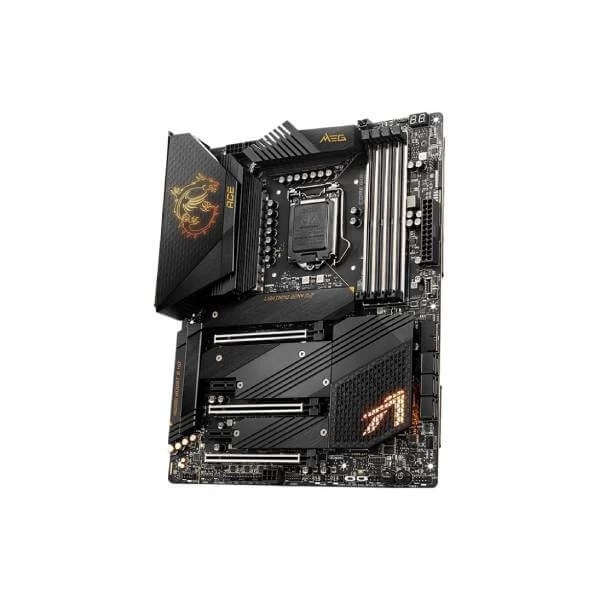

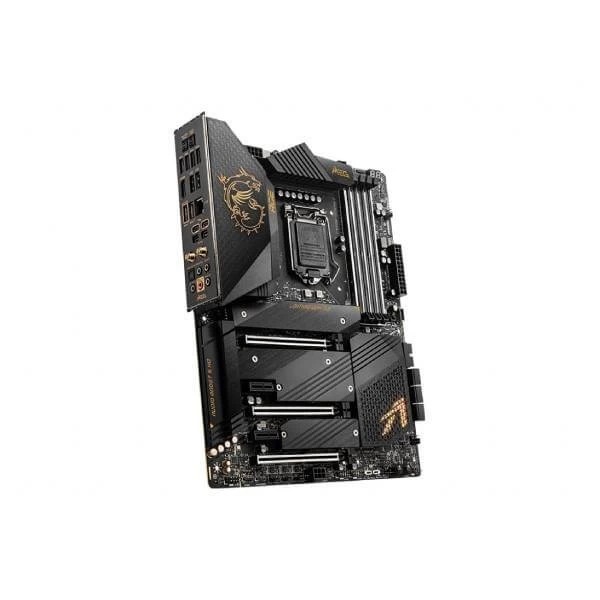

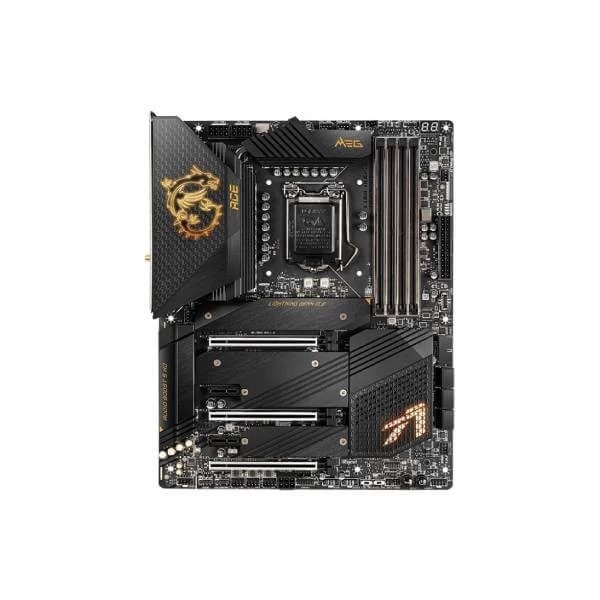

MSI MEG Z590 Ace WiFi INTEL 11TH GENERATION Z590 ATX LGA 1200 Socket GEN 4 Support Gaming Motherboard
Overview :
- Supports 11th and 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5600(OC) MHz
- Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
- Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with one Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
- Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
- 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
- Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
- 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.
Extreme Power Design
INTERSIL digital PWM, 16+2+1 phases with 90A SPS, Mirrored
Power Arrangement and dual CPU power connectors to unleash
the maximum performance.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance with one Lightning Gen 4 solution.
Outstanding Cooling Solution
Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads,
M.2 Shield Frozr and Aluminum Backplate ensure the extreme
performance with low temp.
Dual Thunderbolt™ 4 ports
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s
speeds, 8K display support, Daisy-Chaining and Multi-Port
Accessory Architecture.
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage
performance with three Lightning Gen 4 solution.
Audio Boost 5 HD
Ultimate audio solution with premium audio processor combining
ESS audio DAC and amplifier deliver the breathtaking experience.
Mystic Light RGB LED
Personalize your PC with 16.8 million colors / 29 effects,
controlled in one click!
Outstanding Cooling Solution
Aluminum Cover design, VRM Heat-pipe, 7W/mK thermal pads,
M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme
performance with low temp.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO
and BSS color technology, delivering speeds up to 2400Mbps.
Smart Button
Reset Computer, Safe Boot, Turbo Fan and EZ LED control
functions with just one click.
8 Layer PCB with 2oz Thickened Copper
An Enhanced PCB design provides higher performance and longlasting system stability without any compromise for MSI MEG Z590 Ace WiFi
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z590 Chipset |
| DDR4 MEMORY | 5600(OC)/ 5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 3 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 4 |
| RAID | 0/1/5/10 |
| LAN | 1x Intel® I225-V 2.5G LAN |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6E AX210 |

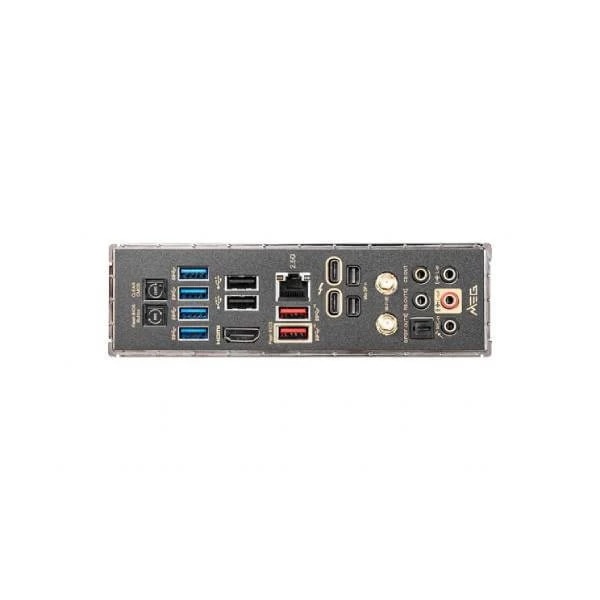

| THUNDERBOLT 4 | 2x USB Type-C up to 40G, Charging support up to 5V/3A, 15W, 2x Mini DisplayPort input ports |
| USB 3.2 PORTS (FRONT) | 1(Gen2, Type C), 2(Gen1, Type A) |
| USB 3.2 PORTS (REAR) | 2(Gen2, Type A), 4(Gen1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | 5+ Optical S/PDIF (Realtek® ALC4082 Codec + ESS SABRE9018Q2C combo DAC) |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| SLI | Y |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
