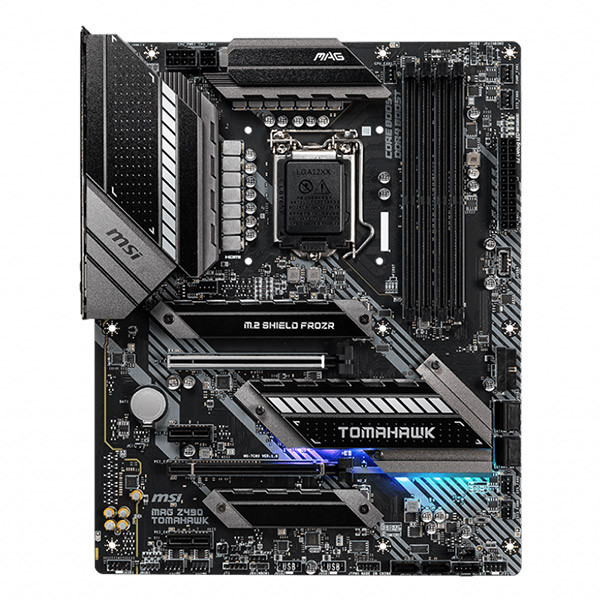

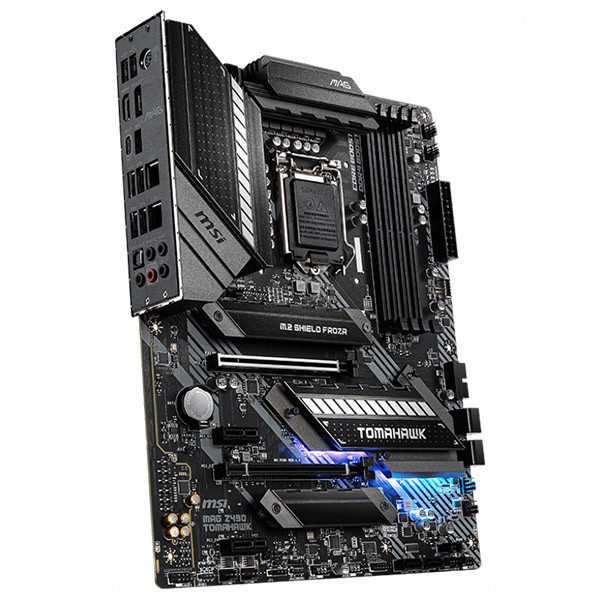

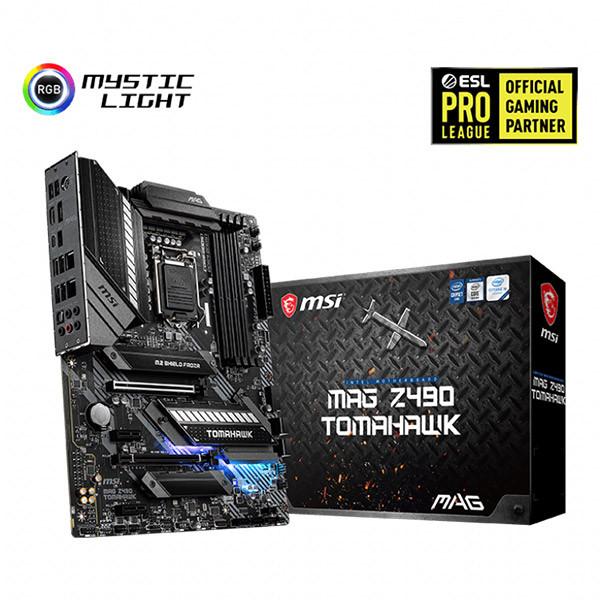

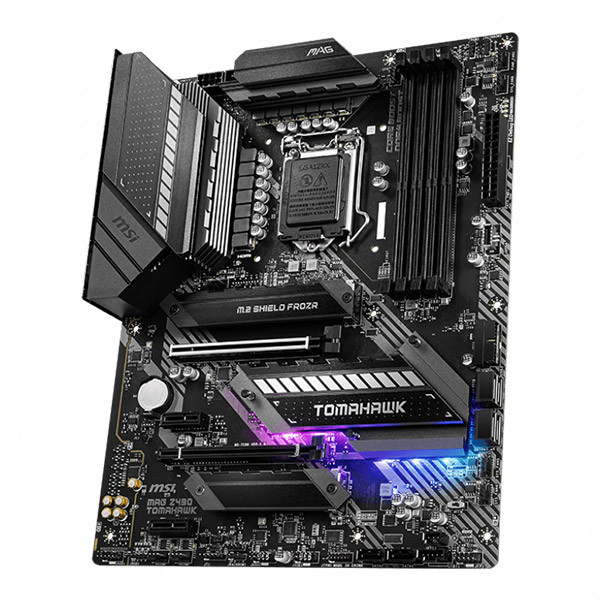

MSI MAG Z490 Tomahawk INTEL 10TH GENERATION Z490 ATX LGA 1200 Socket Gaming Motherboard
Overview :
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5000(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Powered by ASmedia 3241 USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
Twin Turbo M.2
With 2 x M.2 slots. Running at PCI-E Gen4 x4 maximizes
performance for NVMe based SSDs.
M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while
preventing throttling, making them run cooler & faster.
Core Boost
With premium layout and optimized power design to support
more cores and provide better performance.
Mystic Light
Personalize your PC with 16.8 million colors / 31 effects,
controlled in one click!
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed,
4X faster than USB 3.2 Gen 1.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online
gaming experience.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z490 Chipset |
| DDR4 MEMORY | 5000(OC)/ 4800(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2933/ 2666/ 2400/ 2133 MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E GEN | Gen3 |
| PCI-E X1 | 3 |
| SATAIII | 6 |
| M.2 SLOT | 2 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® RTL8125B 2.5G LAN + 1x Intel I219V 1G LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 1, Type C), 2(Gen 1, Type A) |

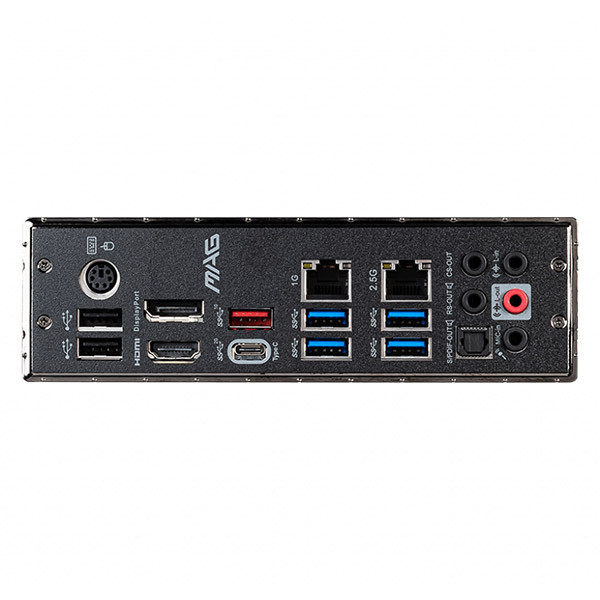

| USB 3.2 PORTS (REAR) | 1(Gen 2×2, Type C), 1(Gen 2, Type A), 4(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| AUDIO PORTS (REAR) | REALTEK/ALC1200-VD1 |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
