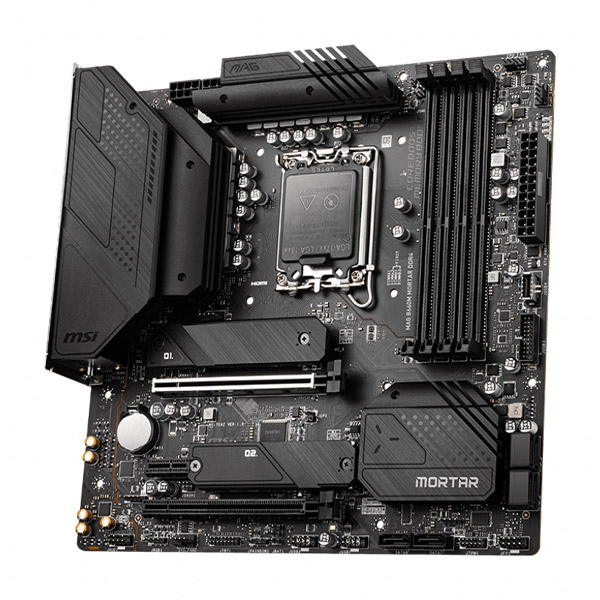

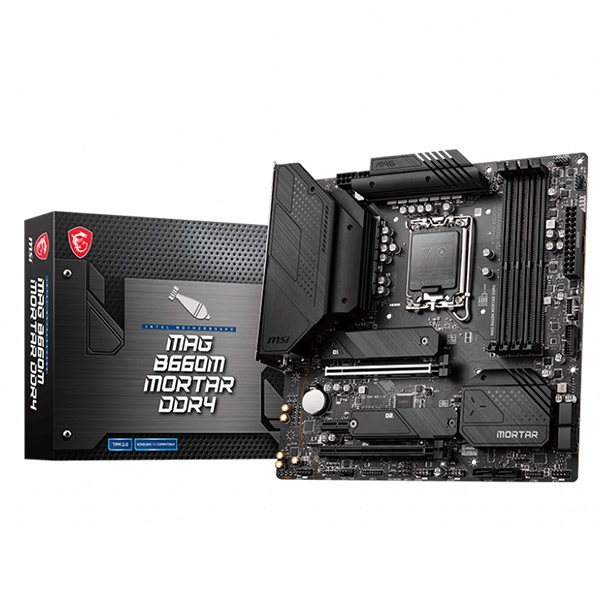

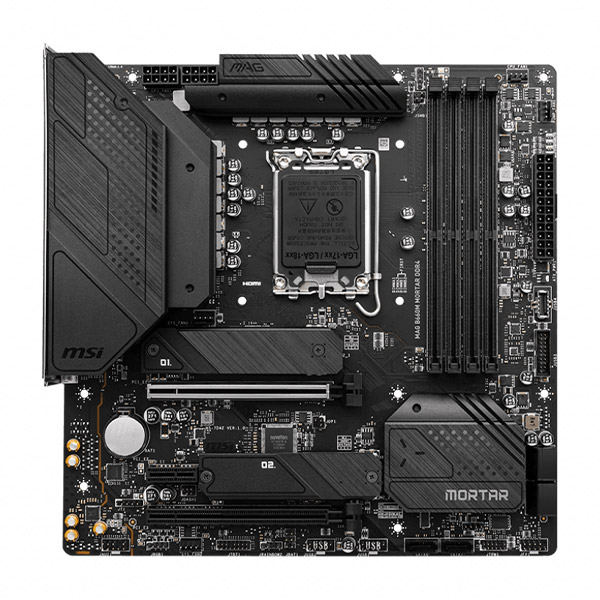

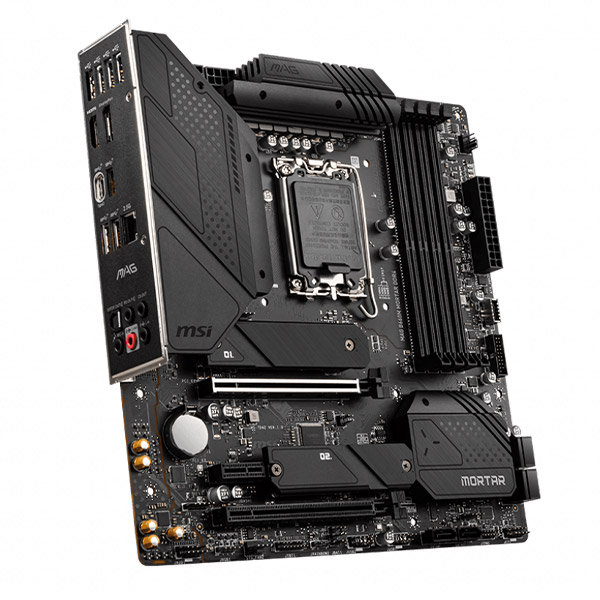

MSI MAG B660M Mortar DDR4 Motherboard

16,799 (Inclusive of GST)

Brand:

Out of stock

Email when back in stock

MSI MAG B660M Mortar DDR4 INTEL 12TH GENERATION B660 ATX LGA 1700 Socket DDR4 RAM and PCIE 4 Support Gaming Motherboard

Features :

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, up to 4800+(OC) MHz
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works in MSI MAG B660M Mortar DDR4
  • Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag
  • Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Overview :

Lightning Gen4 Solution
The MSI MAG B660M Mortar DDR4 offers latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.

Core Boost
MSI MAG B660M Mortar DDR4 has a premium layout and fully digital power design to support more cores and provide better performance.

Extended Heatsink Design
MSI MAG B660M Mortar DDR4 extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.

Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.

2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better network experience.

Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port in MSI MAG B660M Mortar DDR4, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.

Specifications :

CPU (MAX SUPPORT)i9
SOCKET1700
CHIPSETIntel® B660 Chipset
DDR4 MEMORY4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
MEMORY CHANNELDual
DIMM SLOTS4
MAX MEMORY (GB)128
PCI-E X162
PCI-E X11
SATAIII6
M.2 SLOT2
RAID0/1/5/10

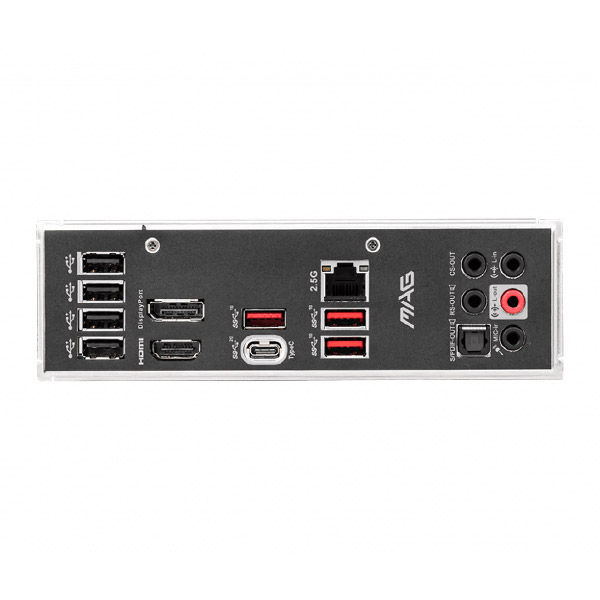

LAN1x Realtek® 8125BG 2.5G LAN
USB 3.2 PORTS (FRONT)1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR)1(Gen 2×2, Type C), 3(Gen 2, Type A)
USB 2.0 PORTS (FRONT)4
USB 2.0 PORTS (REAR)4
AUDIO PORTS (REAR)Realtek® ALC1200
DISPLAYPORT1
HDMI1
DIRECTX12
FORM FACTORmATX
CROSSFIREY
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit

Additional information

Weight5 kg
Dimensions25.4 × 0.1 × 35.5 mm
Brand

MSI

Socket

LGA1700

Chipset

B660

Form Factor

M-ATX

Memory Slot

4 Slot

Platfrom

Intel

Memory Slot Type

DDR4

EAN/UPC

4719072909963
