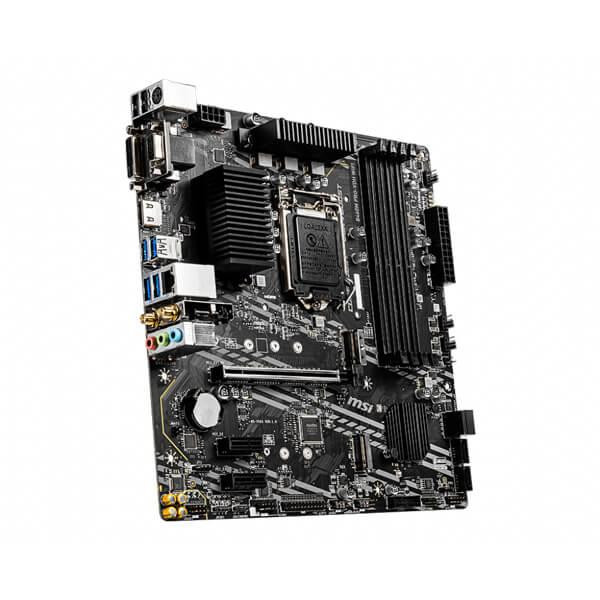

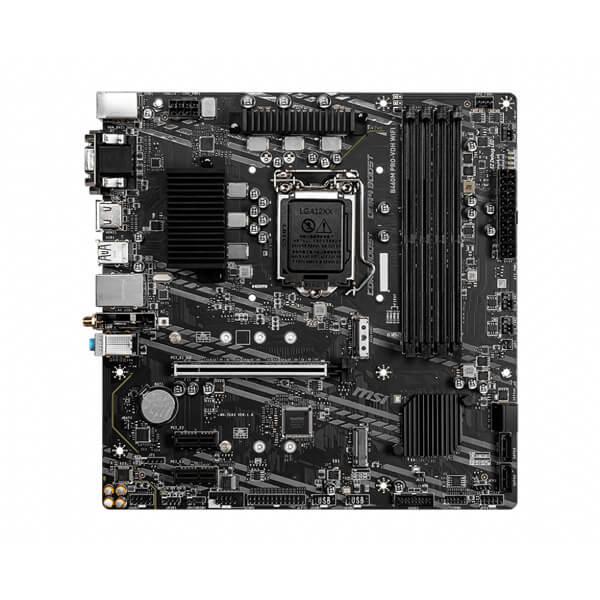

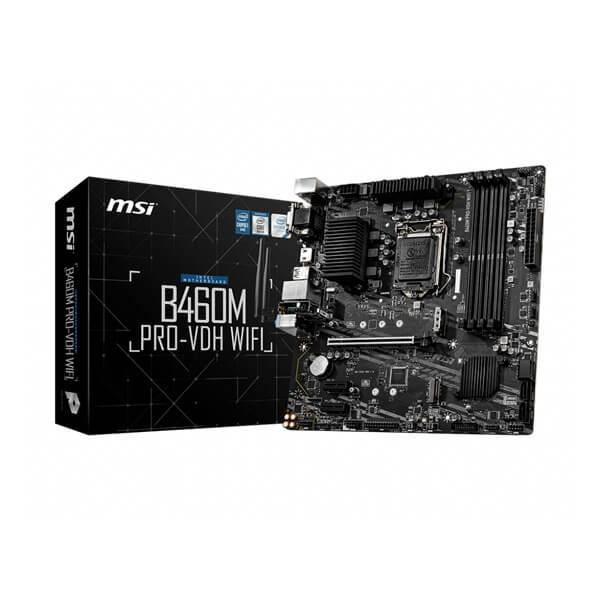

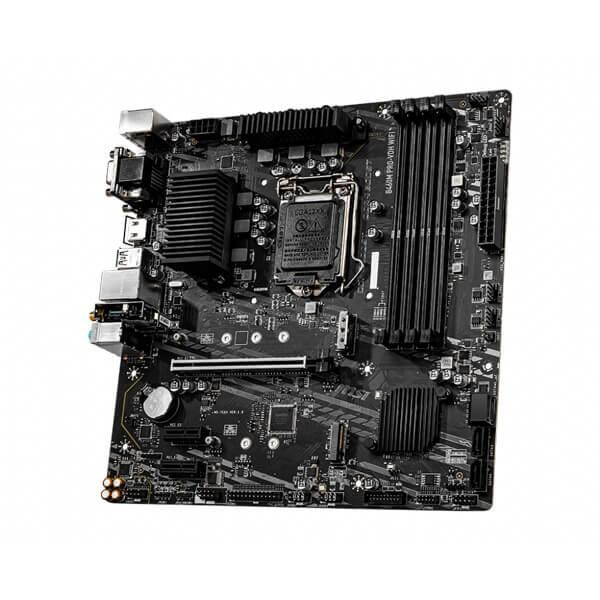

Msi B460M PRO-VDH WIFI Motherboard

₹9,899 (Inclusive of GST)

  • Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 2933(Max) MHz
  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
  • Twin Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
  • Audio Boost: Reward your ears with studio grade sound quality
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

Out of stock

Email when back in stock

CPUSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
ChipsetIntel® B460 Chipset
Memory
  • 4x DDR4 memory slots supporting up 128GB
  • Intel® Core™ i7/ i9
    • Support DDR4-2933 Memory (Max.)
  • Intel® Core™ i5 (Below)
    • Supports DDR4-2666 Memory (Max.)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 2x PCIe x1 slots (from PCH)
Onboard Graphics
  • 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30Hz, 2560×1600 @ 60Hz
  • 1x DVI-D port, supports a maximum resolution of 1920×1200 @ 60Hz
  • 1x VGA port, supports a maximum resolution of 2048×1536 @ 50Hz, 2048×1280 @ 60Hz, 1920×1200 @ 60Hz
StorageIntel® B460 Chipset

  • 4x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready
    • Supports Intel® Smart Response Technology for Intel Core™ processors
RAIDIntel® B460 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USBIntel® B460 Chipset

  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AudioRealtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
LAN1x Realtek® RTL8111H Gigabit LAN Controller
Wireless LAN & Bluetooth®Intel® 3168NGW

  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports 802.11 a/ b/ g/ n/ ac
  • Supports Bluetooth® 4.2
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water pump connector
  • 2x 4-pin system fan connectors
  • 1x front panel audio connector
  • 2x system panel connectors
  • 1x parallel port connector
  • 1x serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 1x 4-pin RGB LED connector
  • 1x 3-pin RAINBOW LED connector
  • 1x TPM module connector

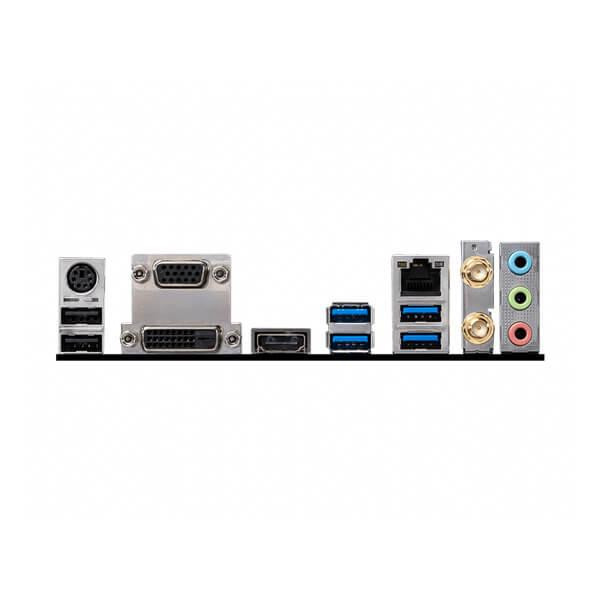

Back panel ports
  • Keyboard / Mouse
  • VGA
  • LAN
  • USB 2.0
  • DVI-D
  • HDMI
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 1 5Gbps Type-A
  • Wireless / Bluetooth
  • Audio Connectors
Form Factor
  • mATX Form Factor
  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Warranty3 Years

Additional information

Weight5 kg
Brand

MSI

Socket

LGA1200

Chipset

B460

Form Factor

M-ATX

Memory Slot

4 Slot

Platfrom

Intel

EAN/UPC

4719072730376

Memory Slot Type

DDR4
