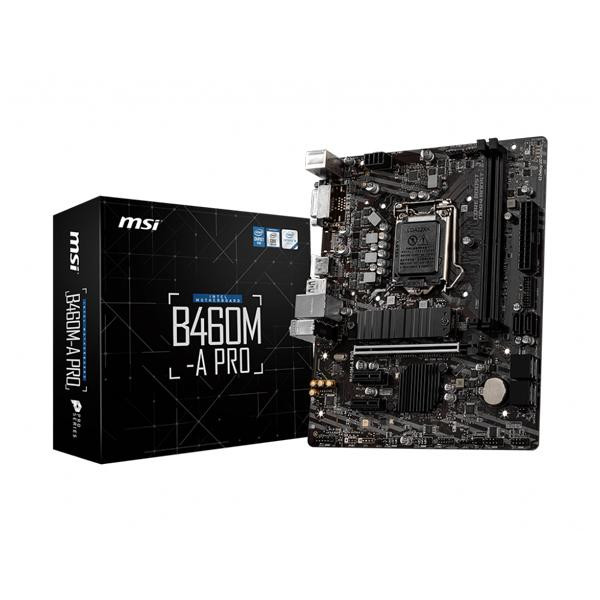

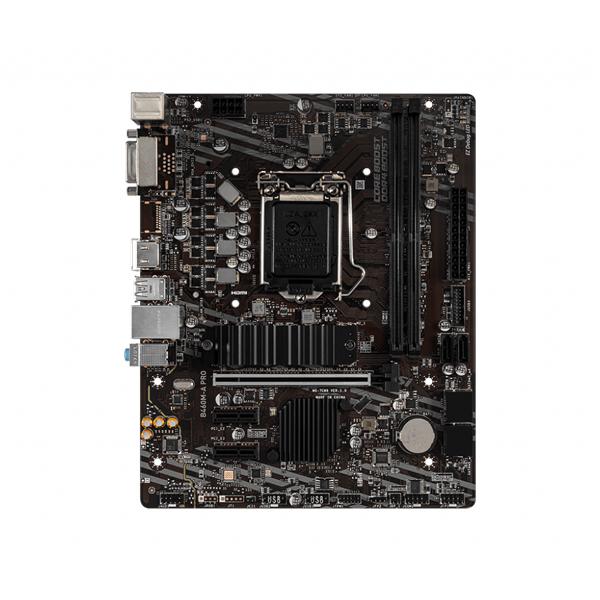

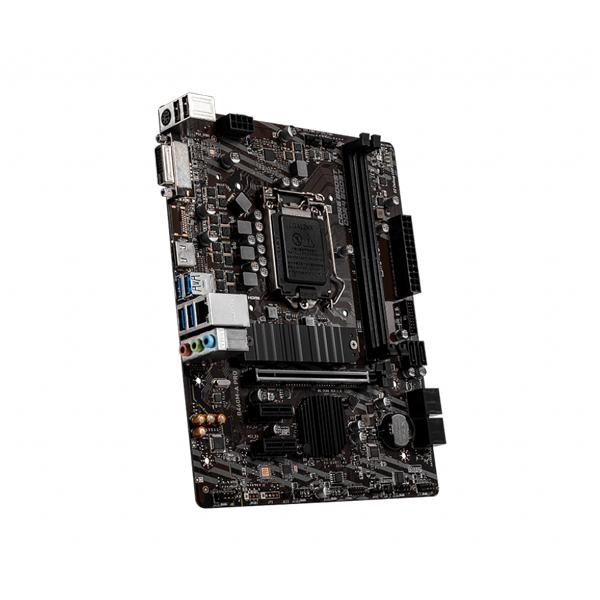

Msi B460M-A Pro Motherboard

₹6,879 (Inclusive of GST)

Out of stock

Email when back in stock



CPUSupports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
ChipsetIntel® B460 Chipset
Memory
  • 2x DDR4 memory slots, support up to 64GB
  • Intel® Core™ i7/i9
    • Support DDR4-2933 Memory (Max.)
  • Intel® Core™ i5 (Below)
    • Supports DDR4-2666 Memory (Max.)
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)
Expansion Slot
  • 1x PCIe 3.0 x16 slot (from CPU)
  • 2x PCIe x1 slots (from PCH)
Onboard Graphics



  • 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz
  • 1x HDMI™ 1.4 port, supports a maximum resolution of 4096×2160 @30Hz
StorageIntel® B460 Chipset

  • 6x SATA 6Gb/s ports
  • 1x M.2 slot (Key M)
    • Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1
    • Intel® Optane™ Memory Ready2
    • Supports Intel® Smart Response Technology for Intel Core™ processor
RAIDIntel® B460 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USBIntel® B460 Chipset

  • 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AudioRealtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
LAN1x Realtek® 8111H Gigabit LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 2x Front panel connectors
  • 1x TPM module connector
  • 1x Serial port connector
  • 1x Chassis Intrusion connector
  • 1x Clear CMOS jumper
  • 4x EZ Debug LED

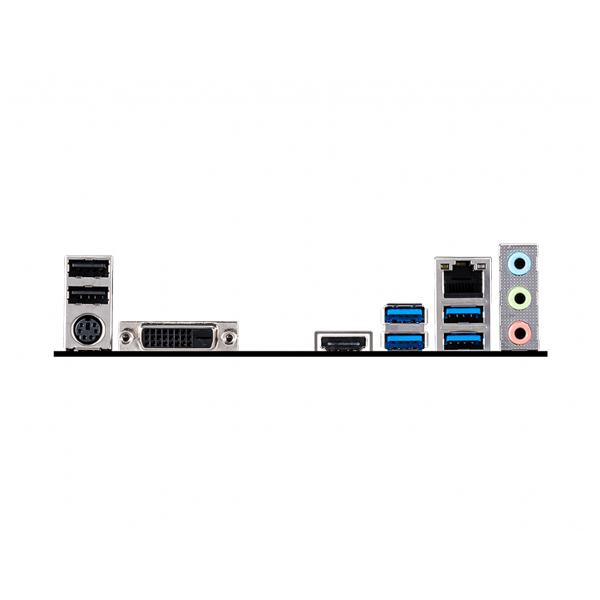

Back panel ports
  1. USB 2.0 Type-A ports
  2. LAN port
  3. PS/2 keyboard/ mouse combo port
  4. DVI-D port
  5. HDMI port
  6. USB 3.2 Gen1 5Gbps Type-A ports
  7. USB 3.2 Gen1 5Gbps Type-A ports
  8. Audio jacks
Form Factor
  • mATX Form Factor
  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
BIOS Features
  • 1x 128 Mb flash
  • UEFI AMI BIOS
  • ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Warranty3 Years

Additional information

Weight5 kg
Brand

MSI

Socket

LGA1200

Chipset

B460

Form Factor

M-ATX

Memory Slot

4 Slot

Platfrom

Intel

EAN/UPC

4719072729356

Memory Slot Type

DDR4
