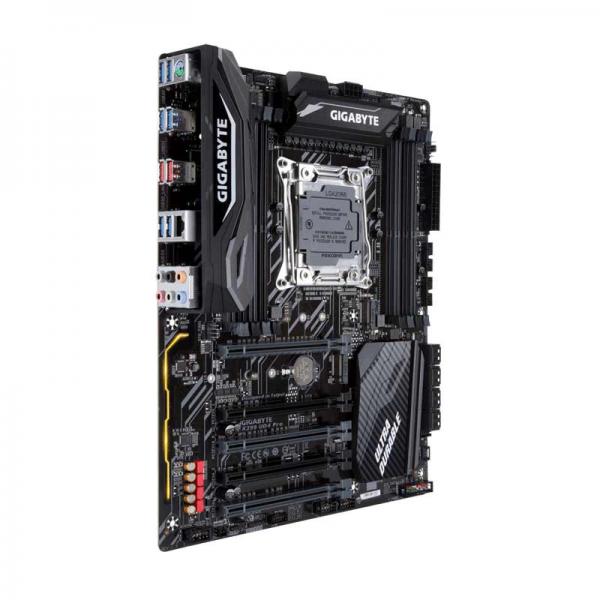

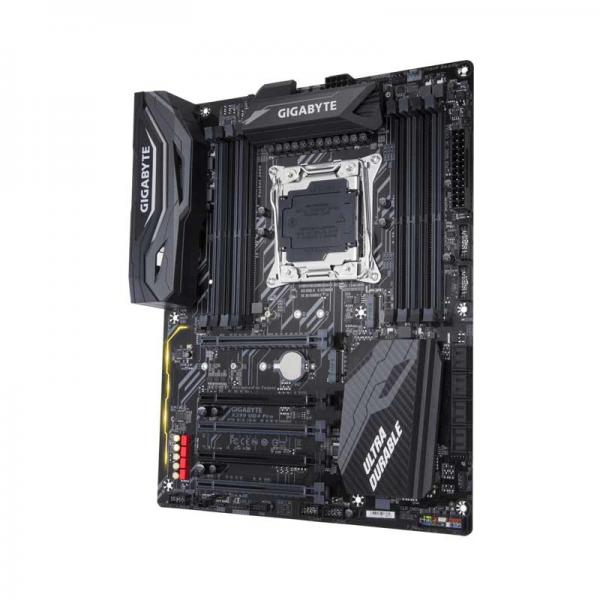

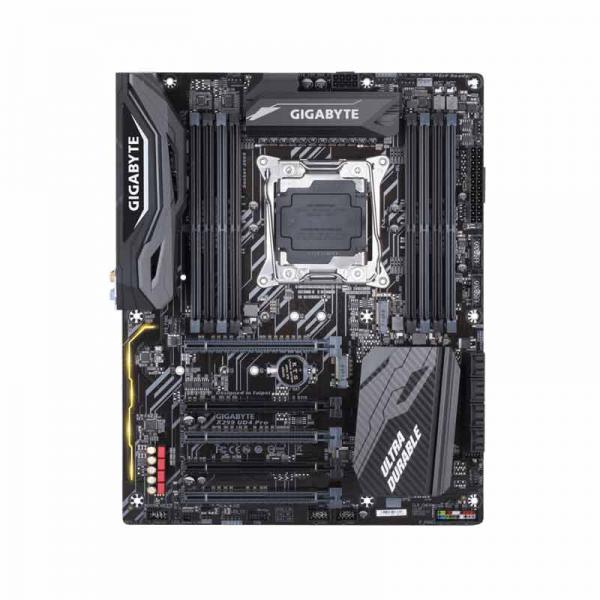

- 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
- 1 x PCI Express x16 slot, running at x8 (PCIEX8)
- 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
* Refer to “1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration,” for the installation notices for the PCI Express x16 slots.
When using a 44 lane CPU (10-core or above):
| 1-Way | 2-Way | 3-Way |
PCIEX16_1 | ∨(x16) | ∨(x16) | ∨(x16) |
PCIEX16_2 | ╳ | ∨(x16) | ∨(x16) |
PCIEX8 | ╳ | ╳ | ∨(x8) |
∨: Installed, ╳: Not Installed.
When using a 28 lane CPU (6-core or above):
| 1-Way | 2-Way |
PCIEX16_1 | ∨(x16) | ∨(x16) |
PCIEX16_2 | ╳ | ∨(x8) |
PCIEX8 | ╳ | ╳ |
∨: Installed, ╳: Not Installed.
When using a 16 lane CPU (4-core):
| 1-Way | 2-Way* |
PCIEX16_1 | ∨(x8) | ∨(x8) |
PCIEX16_2 | ╳ | ∨(x4) |
PCIEX8 | ╳ | ╳ |
∨: Installed, ╳: Not Installed.
* Supports the CrossFire technology only.
