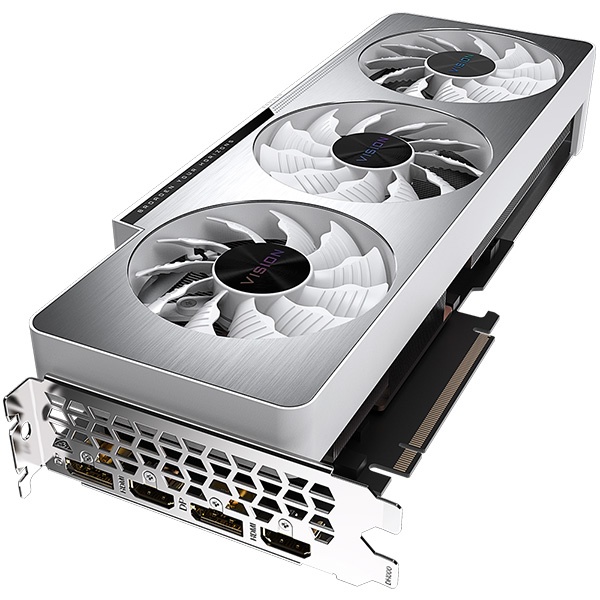

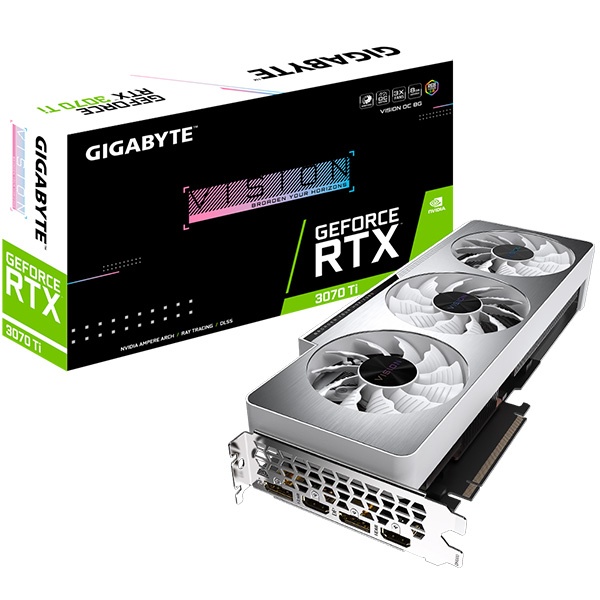

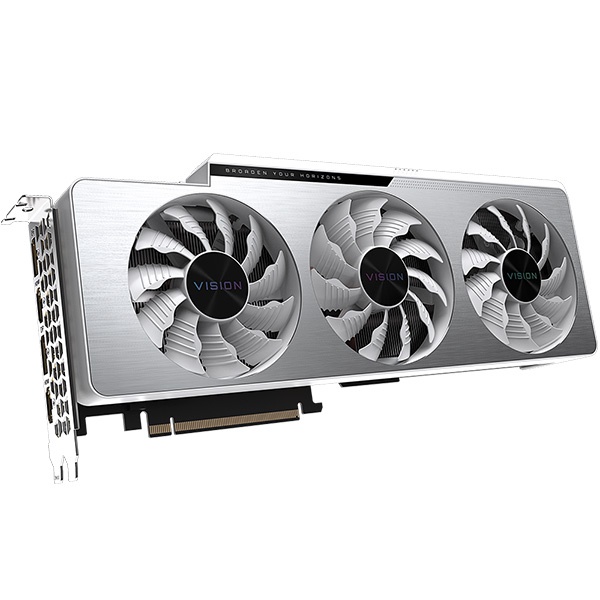

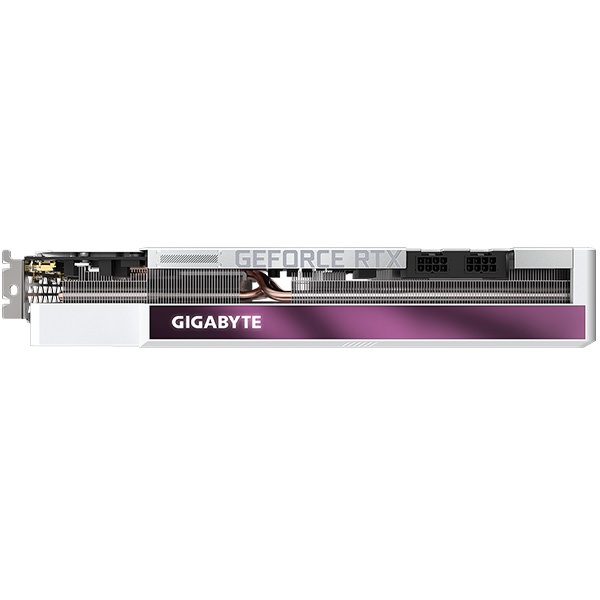

Gigabyte RTX 3070 Ti Vision OC 8GB Graphics Card :
Features :
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3070 Ti
- Integrated with 8GB GDDR6X 256-bit memory interface
- WINDFORCE 3X Cooling System with alternate spinning fans
- RGB Fusion 2.0
- Protection metal back plate
Overview :
CREATE YOUR WORK FASTER THAN EVER
Powerful Gigabyte RTX 3070 Ti Vision OC 8GB accelerates your work with incredible boosts in performance. Whether you are doing VIDEO EDITING、3D ANIMATION、PHOTOGRAPHY、GRAPHIC DESIGN、ARCHITECTURAL VISUALIZATION or BROADCASTING, it can save you a lot of time
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features two 90mm and one 80mm unique blade fans, alternate spinning, 7 composite copper heat pipes, a large copper plate direct touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Gigabyte RTX 3070 Ti Vision OC 8GB Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
Gigabyte RTX 3070 Ti Vision OC 8GB With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
EXTREME DURABILITY & OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
NVIDIA AMPERE ARCHITECTURE
The all-new NVIDIA Ampere architecture delivers the ultimate play, featuring advanced 2nd generation Ray Tracing Cores and 3rd generation Tensor Cores with greater throughput.
RTX. IT’S ON.
Experience today’s biggest blockbusters like never before with the visual fidelity of real-time ray tracing and the ultimate performance of AI-powered DLSS.
DIRECTX 12 ULTIMATE
Developers can now add even more amazing graphics effects to Microsoft Windows-based PC games. GeForce RTX graphics cards deliver advanced DX12 features like ray tracing and variable rate shading, bringing games to life with ultra-realistic visual effects and faster frame rates.
Specifications :
· Graphics Processing | GeForce RTX™ 3070 Ti |
· Core Clock | 1830 MHz (Reference Card: 1770 MHz) |
· CUDA® Cores | 6144 |
· Memory Clock | 19000 MHz |
· Memory Size | 8 GB |
· Memory Type | GDDR6X |
· Memory Bus | 256 bit |
· Memory Bandwidth (GB/sec) | 608 GB/s |
· Card Bus | PCI-E 4.0 x 16 |
· Digital max resolution | 7680×4320 |
· Multi-view | 4 |
· Card size | L=320 W=126 H=55 mm |
· PCB Form | ATX |
· DirectX | 12 Ultimate |
· OpenGL | 4.6 |
· Recommended PSU | 750W |
· Power Connectors | 8 pin*2 |
· Output | DisplayPort 1.4a *2 |
HDMI 2.1 *2 | |
· SLI Support | N/A |
· Accessories | Quick guide |
