Gigabyte RTX 3060 Ti Eagle OC 8GB
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3060 Ti
- Integrated with 8GB GDDR6 256-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- 100mm unique blade fans
- RGB Fusion 2.0
- Protection back plate
WINDFORCE 2XCOOLING SYSTEM
The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

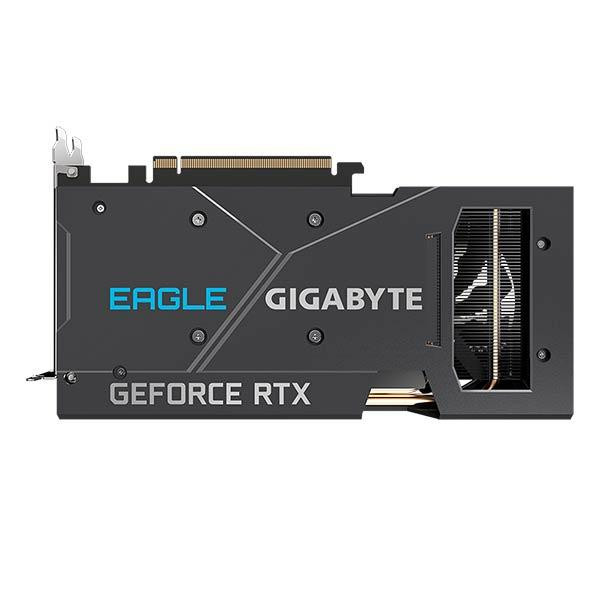

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
- Graphics Processing : GeForce RTX™ 3060 Ti
- Core Clock : 1695 MHz (Reference Card: 1665 MHz)
- RTX-OPS : TBD
- CUDA® Cores : TBD
- Memory Clock : 14000 MHz
- Memory Size : 8 GB
- Memory Type : GDDR6
- Memory Bus : 256 bit
- Memory Bandwidth (GB/sec) : TBD
- Card Bus : PCI-E 4.0 x 16
- Digital max resolution : 7680×4320@60Hz
- Multi-view : 4
- Card size : L=242 W=124 H=41 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 600W
- Power Connectors : 8 pin*1
- OutputDisplayPort 1.4a *2
HDMI 2.1 *2
- SLI Support : N/A
- Accessories : Quick guide
