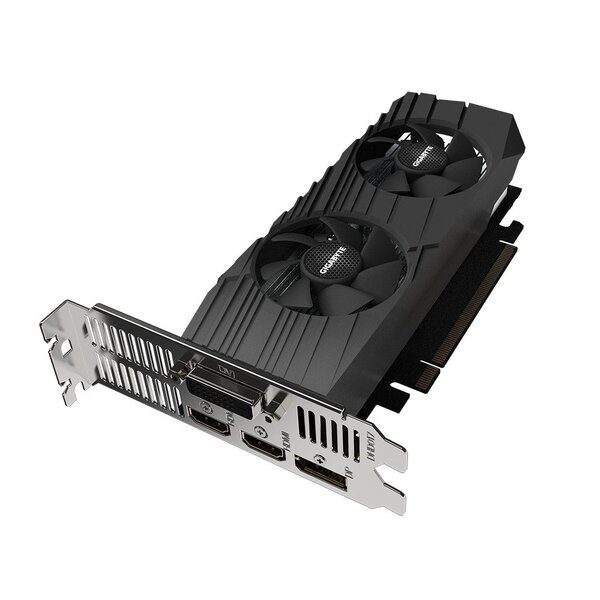

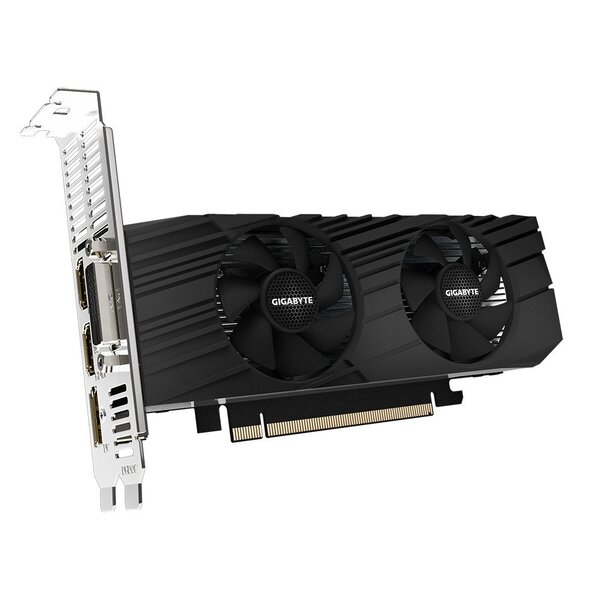

Gigabyte GTX 1630 OC Low Profile 4GB Graphics Card :
Features :
- Powered by GeForce® GTX 1630
- NVIDIA Turing™ architecture and GeForce Experience™
- Integrated with 4GB GDDR6 64bit memory interface
- Low profile design with 167mm card length
- Supports up to 4 displays
- Core Clock : 1800 MHz (Reference Card: 1785 MHz)
Overview :
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
Gigabyte GTX 1630 OC Low Profile 4GB has Custom-designed cooling system delivers an effective heat dissipation capacity for higher performance at lower temperatures.

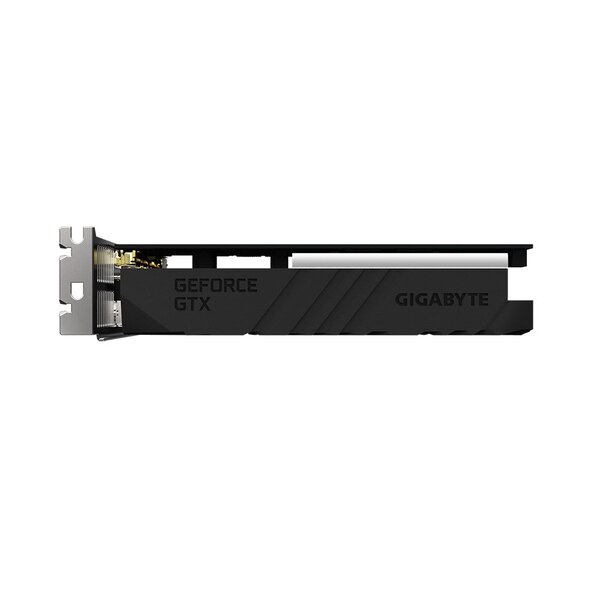

LOW PROFILE DESIGN
Gigabyte GTX 1630 OC Low Profile 4GB comes with Low profile design with 167mm card length saves more spaces and fits slim or smaller system.

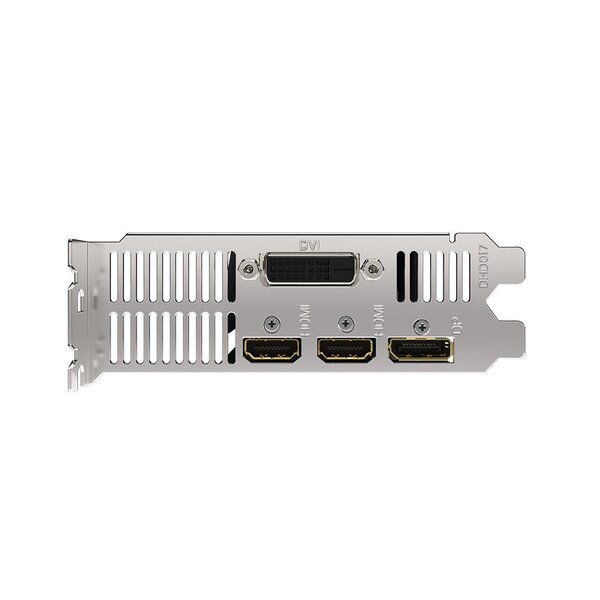

FLEXIBLE CONNECTIVITY
Equip with one Dual-link DVI-D, one DP, and two HDMI ports and support up to 4 displays.
BUILT STRONG
- ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature. - LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference. - LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan. - FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
Specifications :
Graphics Processing | GeForce® GTX 1630 |
Core Clock | 1800 MHz (Reference Card: 1785 MHz) |
CUDA® Cores | 512 |
Memory Clock | 12000 MHz |
Memory Size | 4 GB |
Memory Type | GDDR6 |
Memory Bus | 64 bit |
Memory Bandwidth (GB/sec) | 96 GB/s |
Card Bus | PCI-E 3.0 x 16 |
Digital max resolution | 7680×4320 |
Multi-view | 4 |
Card size | L=166.9 W=69 H=39 mm |
PCB Form | Low Profile |
DirectX | 12 API |
OpenGL | 4.6 |
Recommended PSU | 300W |
Power Connectors | N/A |
Output | DisplayPort 1.4 *1 |
HDMI 2.0b *2 | |
DVI-D *1 | |
SLI Support | N/A |

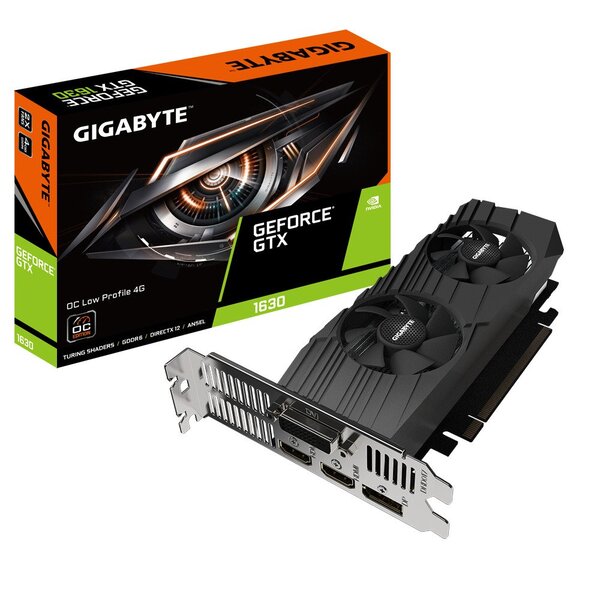

Accessories | 1. Quick guide |
2. Low Profile Bracket *1 |
