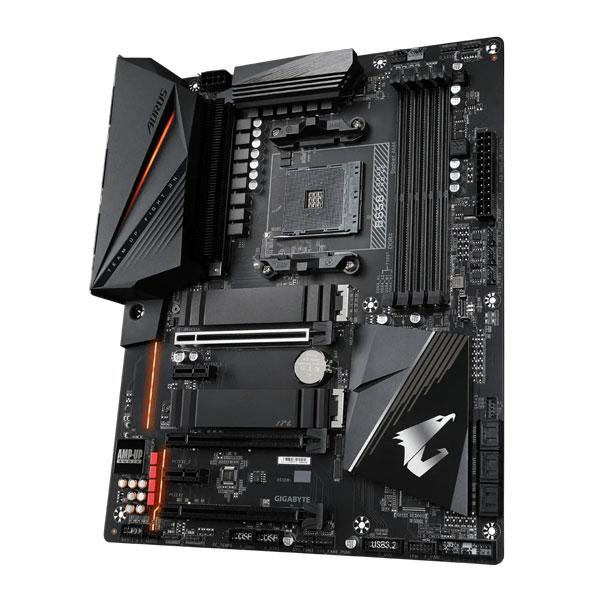

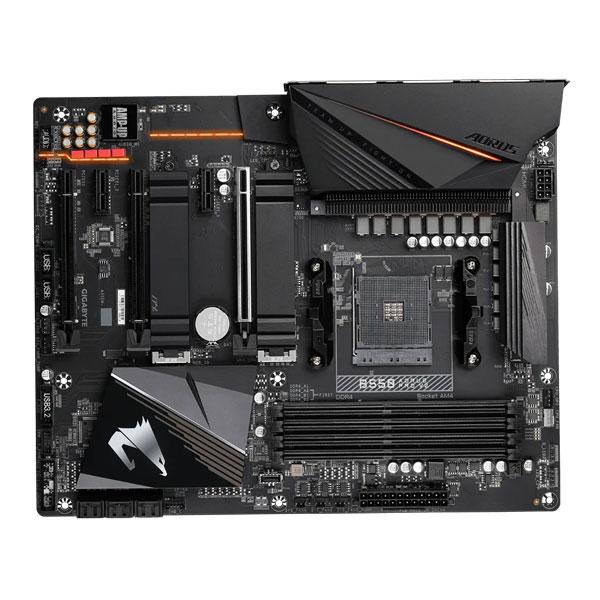

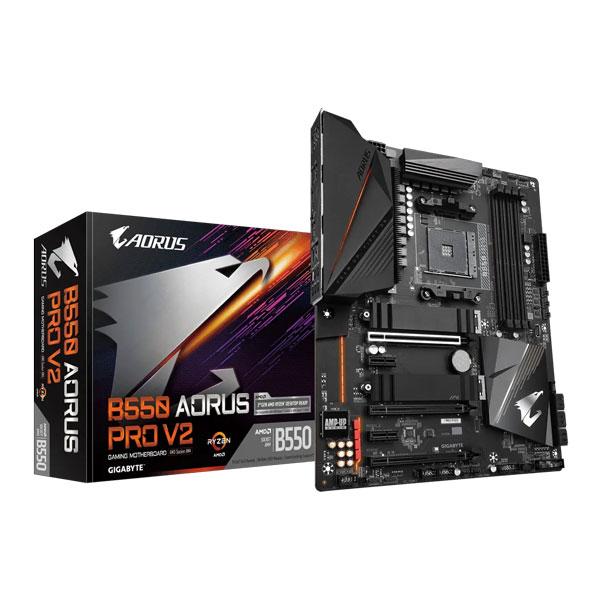

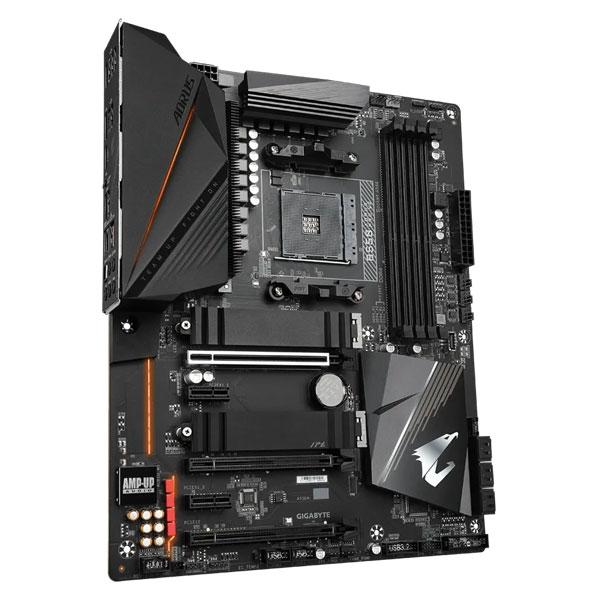

Gigabyte B550 Aorus Pro V2 Motherboard

Original price was: ₹24,100.Current price is: ₹16,619. (Inclusive of GST)

-31%
Available Models: B550-AORUS-PRO-V2
Brand:

Out of stock

Email when back in stock

Gigabyte B550 Aorus Pro V2 Motherboard :

Features :

AMD B550 AORUS Motherboard with 12+2 Phases Digital Twin Power Design, Fins-Array Heatsink, Direct-Touch Heatpipe, Dual PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards, 2.5GbE LAN, Front & Rear USB Type-C™, RGB FUSION 2.0, Q-Flash Plus
  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 12+2 Phases Digital Twin Power Design with 50A DrMOS
  • Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Dual Thermal Guards
  • AMP-UP Audio with ALC1220-VB and WIMA Capacitors for Rear 120dB SNR
  • Blazing Fast 2.5GbE LAN with Bandwidth Management
  • Front & Rear USB 3.2 Type-C™ and HDMI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

Specifications :

  • CPU
    1. AMD Socket AM4, support for : AMD Ryzen™ 5000 Series / 3rd Generation AMD Ryzen™ processors / 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. AMD B550
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    2. AMD Ryzen™ 5000 series Processors:
      Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    3. 3rd Gen AMD Ryzen™ Processors:
      Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    4. 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
      Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

    1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
      * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

    Maximum shared memory of 16 GB

  • Audio
    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
  • Expansion Slots

    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

    1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

    1. Supporting PCIe 3.0 x4 mode
      * The M2B_SB connector shares bandwidth with the PCIEX4 slot. The PCIEX4 slot will become unavailable when an SSD is installed in the M2B_SB connectors.

    1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

    1. Supporting PCIe 3.0 x2 mode
      * The PCIEX2 slot shares bandwidth with the SATA3 4, 5 connectors. The PCIEX2 slot will become unavailable when a device is installed in the SATA3 4 or SATA3 5 connector.

    2 x PCI Express x1 slots

  • Storage Interface

    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
    2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs

    1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

    1. support PCIe 3.0 x4/x2 SSDs

    6 x SATA 6Gb/s connectors, integrated in the Chipset:

    1. Support for RAID 0, RAID 1, and RAID 10
  • USB

    CPU:

    1. 2 x USB 3.2 Gen 1 ports on the back panel
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

    Chipset:

    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header
    3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    4. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    5. 2 x USB 2.0/1.1 ports on the back panel

    Chipset+2 USB 2.0 Hubs:

    1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 2 x M.2 Socket 3 connectors
    4. 6 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 1 x water cooling CPU fan header
    7. 4 x system fan headers
    8. 2 x system fan/water cooling pump headers
    9. 1 x CPU cooler LED strip/RGB LED strip header
    10. 2 x addressable LED strip headers
    11. 2 x RGB LED strip headers
    12. 1 x front panel header
    13. 1 x front panel audio header
    14. 1 x USB Type-C™ port, with USB 3.2 Gen 1 support
    15. 1 x USB 3.2 Gen 1 header
    16. 2 x USB 2.0/1.1 headers
    17. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    18. 2 x temperature sensor headers
    19. 1 x Thunderbolt™ add-in card connector
    20. 1 x Clear CMOS jumper

    *All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

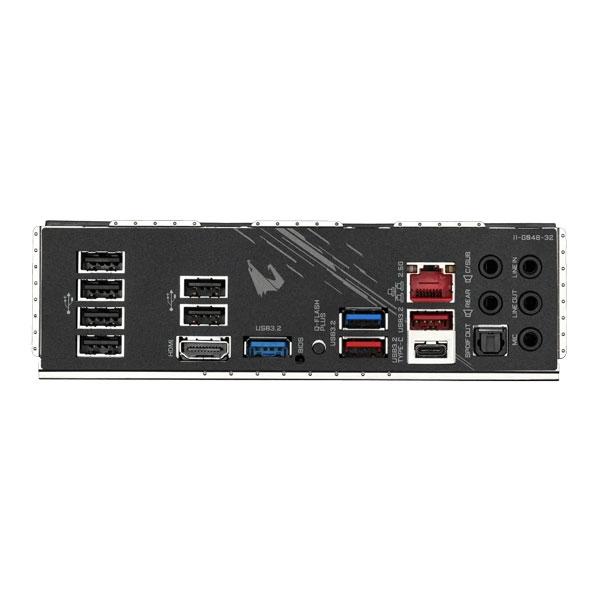

  • Back Panel Connectors
    1. 1 x HDMI port
    2. 2 x USB 3.2 Gen 1 ports
    3. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    4. 2 x USB 3.2 Gen 2 Type-A ports (red)
    5. 6 x USB 2.0/1.1 ports
    6. 1 x Q-Flash Plus button
    7. 1 x RJ-45 port
    8. 1 x optical S/PDIF Out connector
    9. 5 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Overheating warning
    6. Fan fail warning
    7. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. XSplit Gamecaster + Broadcaster (12 months license)
    3. Realtek® 8125 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. ATX Form Factor; 30.5cm x 24.4cm

Additional information

Weight5 kg
Brand

Gigabyte

Socket

AM4

Chipset

B550

Form Factor

ATX

Memory Slot

4 Slot

Platfrom

AMD

Available Models

B550-AORUS-PRO-V2

EAN/UPC

4719331810566

Memory Slot Type

DDR4

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

Q & A

What is the default bios version.And do i have to update the bios to run ryzen 5000 series on it. RevelK asked on April 7, 2023

No, you do not need to update BIOS to run Ryzen 5000 Series processors on this motherboard. The default BIOS version differs from batch to batch.
