Gigabyte Aorus RTX 3080 Xtreme Waterforce 10GB
Features :
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3080
- Integrated with 10GB GDDR6X 320-bit memory interface
- WATERFORCE Water Block cooling system
- Leak detection
- RGB Fusion 2.0
- 6 Outputs
- Protection metal back plate
- 4 Years Warranty (Online registration required)
Overview :
DESIGN CONCEPT
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.
WATERFORCE COOLING SYSTEM
The ideal way for PC enthusiasts to enter the world of water cooling without having to deal with complicated installations. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
EASY INSTALLATIONWith the pre-assembled water pipe and pump, users can easily install the graphics card without leakage concerns.

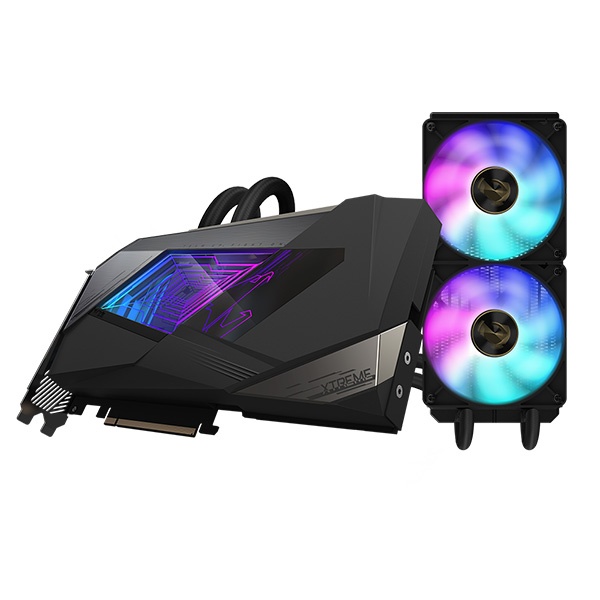

Optimized 240mm ALUMINUM RADIATORThe double-sized radiators and fins increase the surface area and volume for thermal, making the graphics card more stable and cool under high overclocks.
2X 120MM ARGB FANSThe dual fans can generate more airflow to better heat dissipation, delivering a powerful cooling and quiet gaming experience. The ARGB fans lights also can synchronize with the graphics card for various light effects via RGB FUSION 2.0.
DOUBLE BALL BEARINGThe double ball bearing structure has better heat endurance and efficiency than sleeve structure.
LARGE COPPER BASE PLATEThe copper base plate directly touches the GPU, VRAM and other critical parts. Coupled with heat pipes, the heat can be transferred to the liquid cooling zone for achieving enhanced heat dissipation.
BRAIDED FEP TUBESWith nearly no moisture absorption, high thermal stability and high pressure tolerance, the sturdy FEP tubes greatly enhance product life and durability.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX™ 3080 with 10G memory and 760 GB/s memory bandwidth has 8704 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

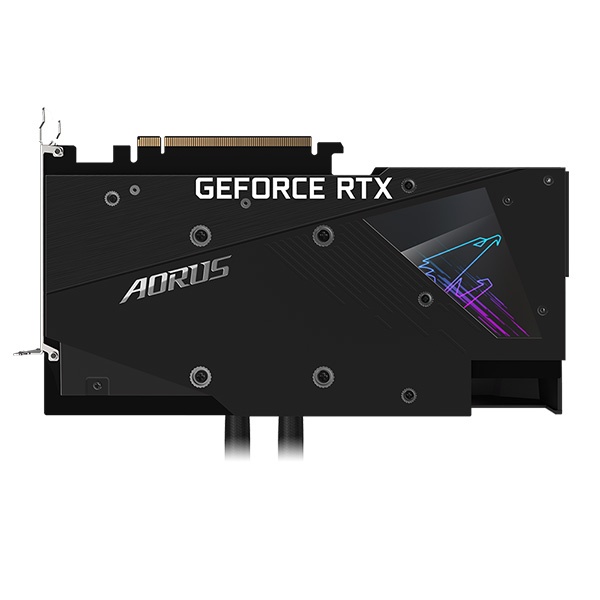

METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

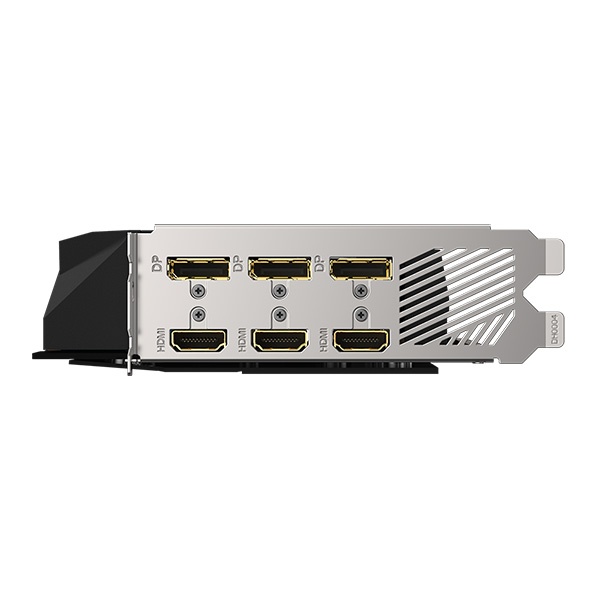

6 OUTPUTSYou can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)
POWER INDICATORSWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
EXTREME OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
ULTRA DURABILITY
The Ultra Durable certified chokes and capacitors, to
Specifications :
- Graphics Processing : GeForce RTX™ 3080
- Core Clock : 1845 MHz (Reference Card: 1710 MHz)
- CUDA® Cores : 8704
- Memory Clock : 19000 MHz
- Memory Size : 10 GB
- Memory Type : GDDR6X
- Memory Bus : 320 bit
- Memory Bandwidth (GB/sec) : 760 GB/s
- Card Bus : PCI-E 4.0 x 16
- Digital max resolution : 7680×4320@60Hz
- Multi-view : 4
- Card size : L=252 W=163 H=29 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 750W
- Power Connectors : 8 pin*2
- Output :DisplayPort 1.4a *3
HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0) - SLI Support : N/A
- Fitting type : G1/4″
- Accessories :1. Quick guide
2. 4-year warranty registration
3. Metal sticker
4. Xtreme robot limited edition
