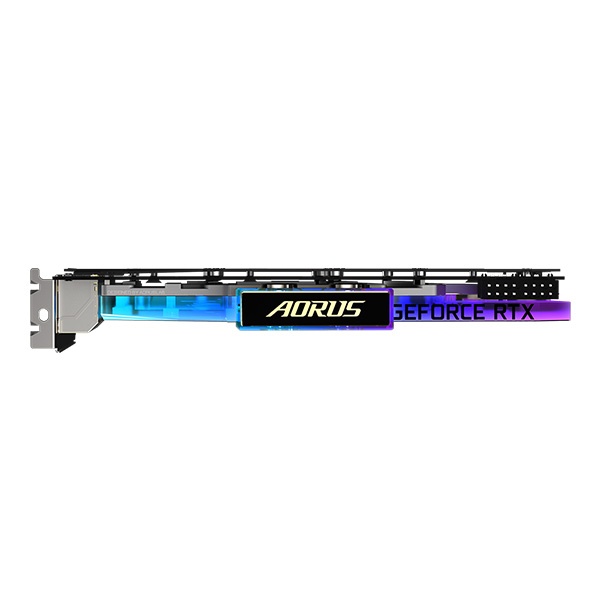

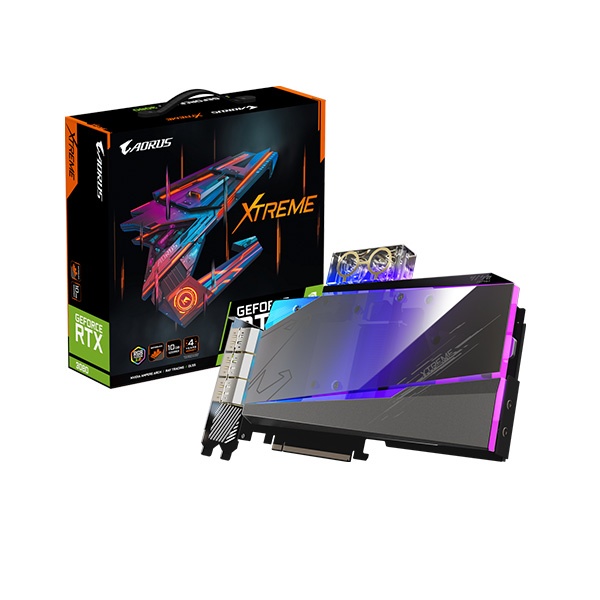

Gigabyte Aorus RTX 3080 Xtreme Waterforce WB 10GB
Features :
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3080
- Integrated with 10GB GDDR6X 320-bit memory interface
- WATERFORCE Water Block cooling system
- Leak detection
- RGB Fusion 2.0
- 6 Outputs
- Protection metal back plate
- 4 Years Warranty (Online registration required)
Overview :
DESIGN CONCEPT
Fusing different materials and surface textures with negative space to form a juxtaposition and showcase a stylistic effect where the boundaries between components are not clearly defined. It creates a multi-dimensional design that seemingly cuts through space and time.

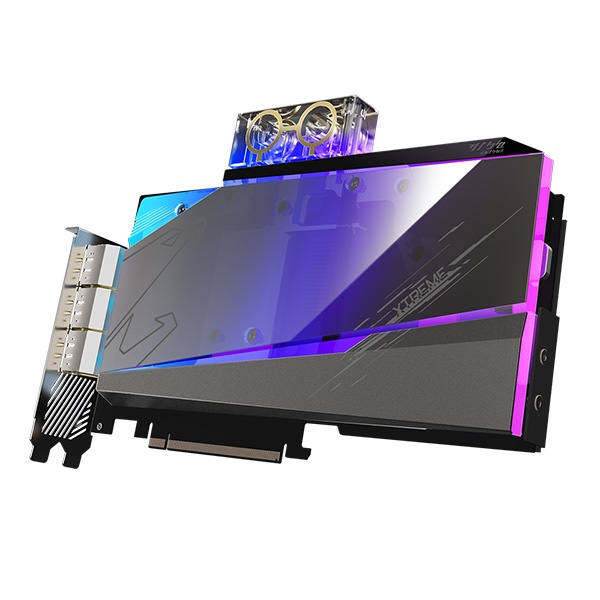

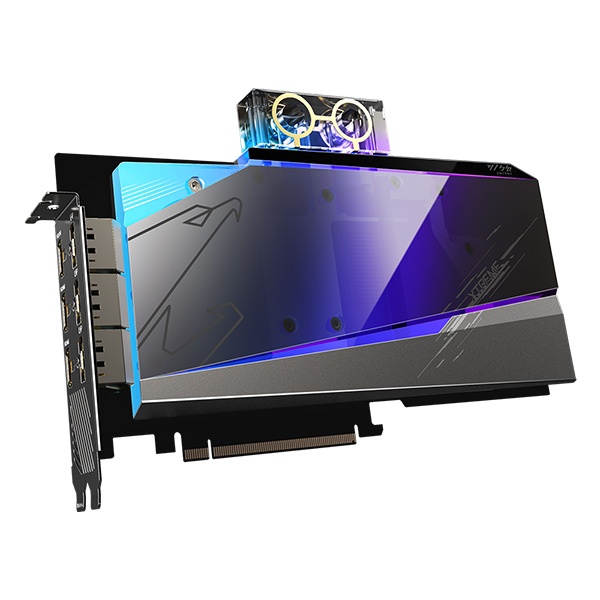

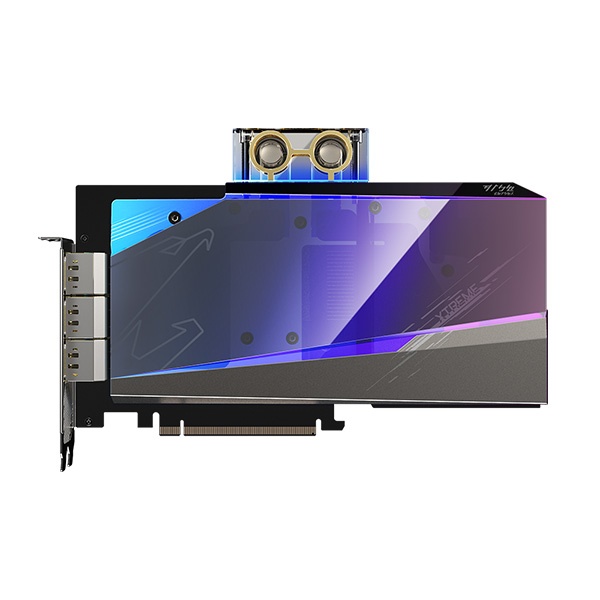

WATERFORCE COOLING SYSTEM
Designed for DIY PC enthusiasts aiming to create unique custom loop builds and achieve the highest possible performance in silence. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.
OPTIMIAL SPACING ON MICROCHANNELThe optimal spacing between the micro fins allows for significant heat transfer from the GPU via stable water flow and prevents blocking.
HIGH PERFORMANCE MICRO FINSThe micro fins over the GPU increase the contact area with liquid flows. In addition, we have shortened the distance between the water channel and the GPU to provide more efficient heat dissipation.
LARGE COPPER BASE PLATEThe large copper base plate covers the entire water channel over the GPU, VRAM, and other critical parts, so the heat can then be quickly taken away.
LEAK DETECTION
The water block is built in with a leak detection circuit covering the entire waterblock, which promptly alerts users by flash warning light in case of any liquid lea
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
PERFORMANCE
GeForce RTX™ 3080 with 10G memory and 760 GB/s memory bandwidth has 8704 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

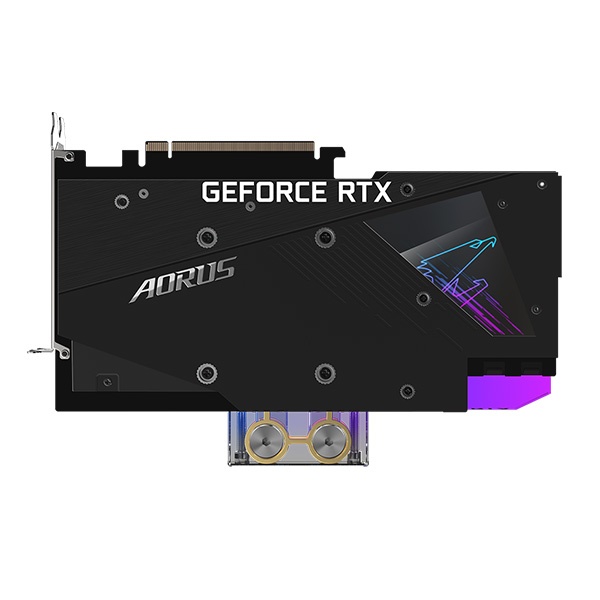

METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

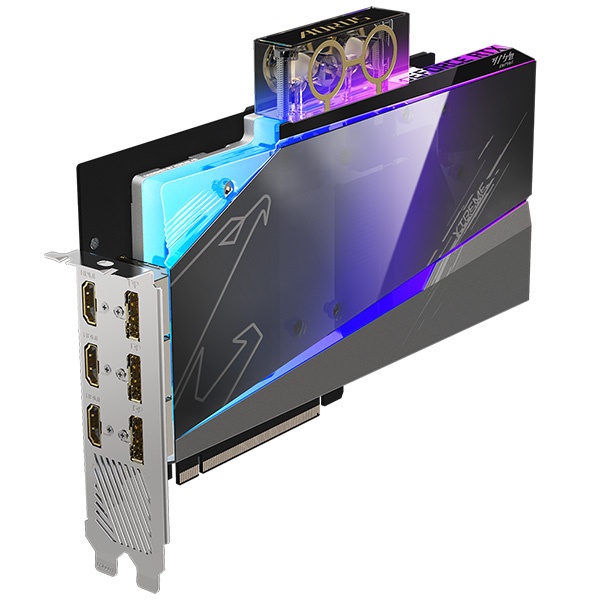

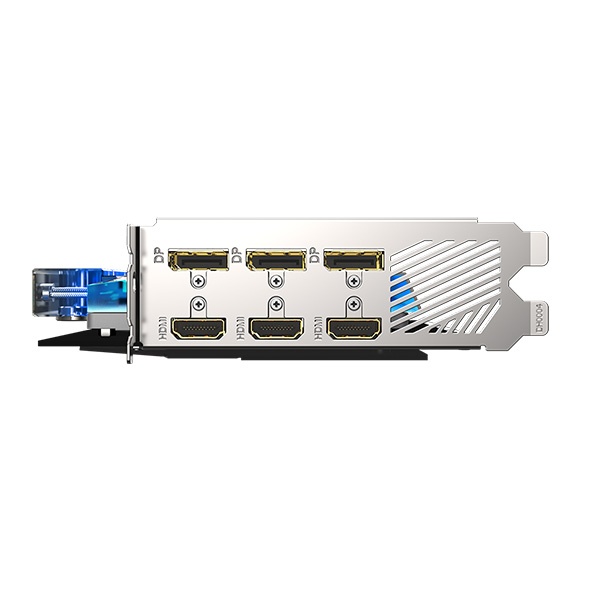

6 OUTPUTSYou can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)
POWER INDICATORSWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
EXCELLENCE
Excellent circuit design with the top-grade materials, not only maximizes the performance of the GPU, but also maintains stable and long-life operation.
EXTREME OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
ULTRA DURABILITY
The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
PCB COATING
Dust resistant – shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant – prevents unwanted conduction paths and board damage.
Corrosion resistant – protects from salt spray, humidity, and corrosion.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Specifications :
- Graphics Processing : GeForce RTX™ 3080
- Core Clock : 1845 MHz (Reference Card: 1710 MHz)
- CUDA® Cores : 8704
- Memory Clock : 19000 MHz
- Memory Size : 10 GB
- Memory Type : GDDR6X
- Memory Bus : 320 bit
- Memory Bandwidth (GB/sec) : 760 GB/s
- Card Bus : PCI-E 4.0 x 16
- Digital max resolution : 7680×4320@60Hz
- Multi-view : 4
- Card size : L=252 W=163 H=29 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 750W
- Power Connectors : 8 pin*2
- Output :DisplayPort 1.4a *3
HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0) - SLI Support : N/A
- Fitting type : G1/4″
- Accessories :1. Quick guide
2. 4-year warranty registration
3. Metal sticker
4. Xtreme robot limited edition
5. Water Block installation
6. Thermal grease
