Gigabyte Aorus RTX 3070 Ti Master 8GB Graphics Card :
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3070 Ti
- Integrated with 8GB GDDR6X 256-bit memory interface
- MAX-Covered cooling
- LCD Edge View
- RGB Fusion 2.0
- 6 video outputs
- Protection metal back plate
- 4 years warranty (Online registration required)
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era

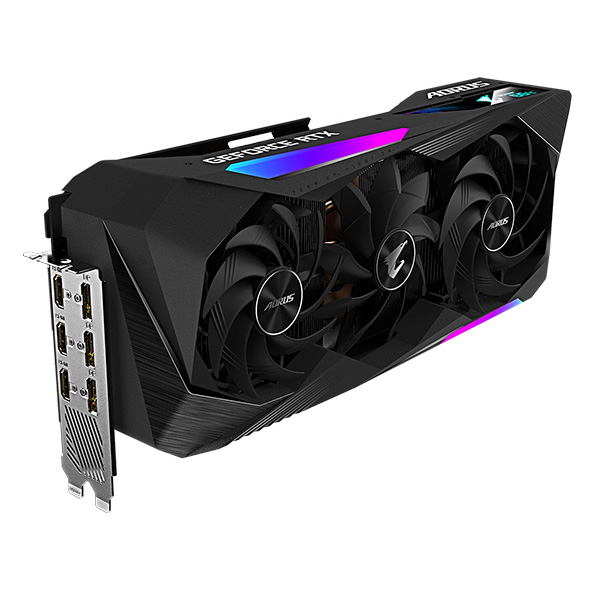

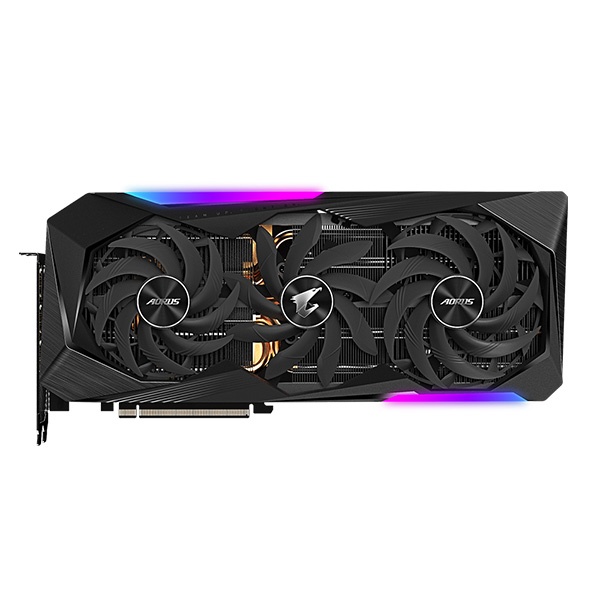

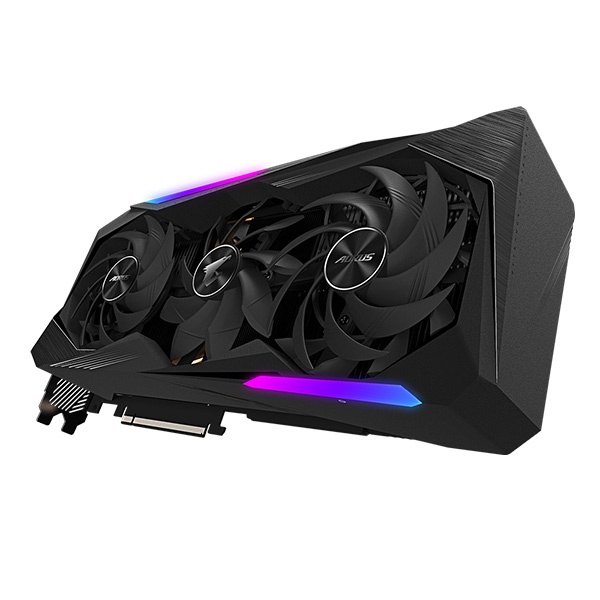

The MAX-Covered cooling features two 115mm and one 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
UNIQUE BLADE STACK FANS
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
WIND CLAW DESIGN
Reinforce and channel the airflow to completely cover the heat sink.
Reduce the turbulence of adjacent fans and increase air pressure.
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
VAPOR CHAMBER & HEAT PIPE
With direct contact to the GPU and VRAM, the large vapor chamber combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
ANGULAR FIN DESIGN
The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

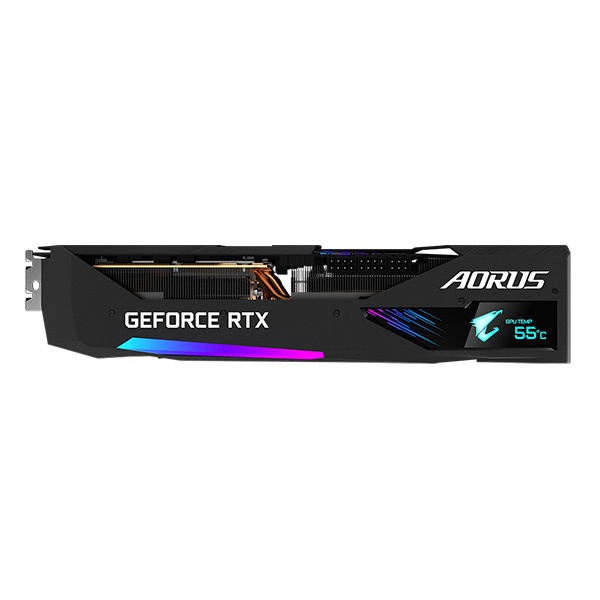

LCD EDGE VIEW
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.
Various GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring.
Users can easily customize texts and fonts.
Support jpg, bmp and png file types. You can crop the image to fit.
Users can upload a favorite GIF video.
TEAM UP. FIGHT ON.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
GeForce RTX™ 3070 Ti with 8 GB memory and 608 GB/s memory bandwidth has 6144 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

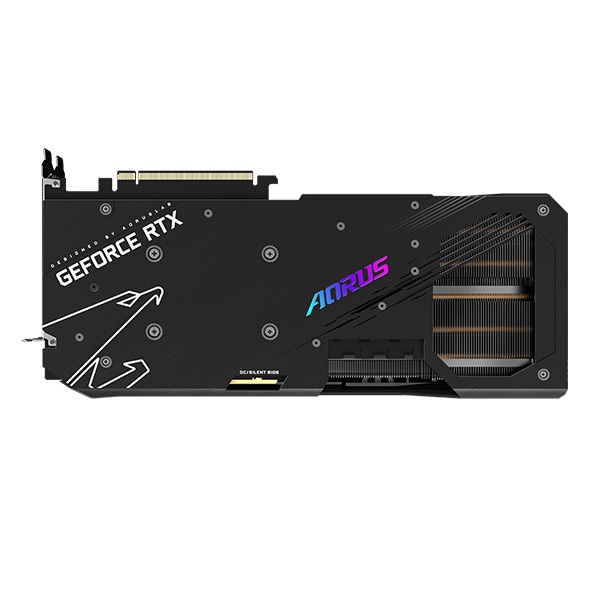

PROTECTION METAL BACK PLATEThe metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOSSilent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

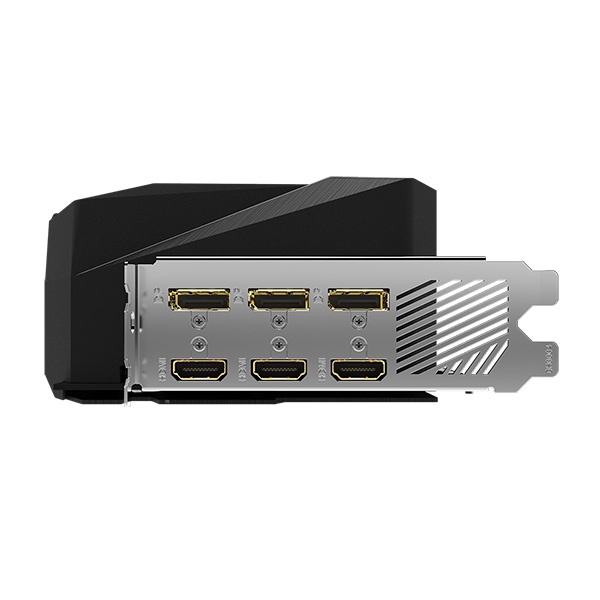

6 OUTPUTSYou can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)
POWER INDICATORSWhen experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
- Graphics Processing : GeForce RTX™ 3070 Ti
- Core Clock : 1875 MHz (Reference Card: 1770 MHz)
- CUDA® Cores : 6144
- Memory Clock : 19000 MHz
- Memory Size : 8 GB
- Memory Type : GDDR6X
- Memory Bus : 256 bit
- Memory Bandwidth (GB/sec) : 608 GB/s
- Card Bus : PCI-E 4.0 x 16
- Digital max resolution : 7680×4320
- Multi-view : 4
- Card size : L=324 W=142 H=70 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 750W
- Power Connectors : 8 pin*2 + 6 pin*1
- Output :DisplayPort 1.4a *3
HDMI 2.1 *2
HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0)
- SLI Support : N/A
- Accessories :1. Quick guide
2. Warranty registration
3. Metal sticker
