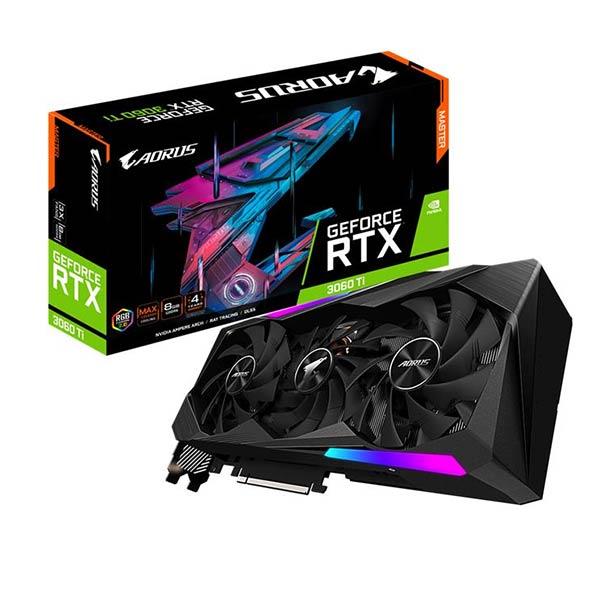

Gigabyte Aorus RTX 3060 Ti Master 8GB
- NVIDIA Ampere Streaming Multiprocessors
- 2nd Generation RT Cores
- 3rd Generation Tensor Cores
- Powered by GeForce RTX™ 3060 Ti
- Integrated with 8GB GDDR6 256-bit memory interface
- MAX-Covered cooling
- LCD Edge View
- RGB Fusion 2.0
- 6 video outputs
- Protection metal back plate
- 4 years warranty (Online registration required)
In the AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style.
Welcome to the Digital Code Era.
The Max-Covered cooling features 3x 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.
UNIQUE BLADE STACK FANS
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
WIND CLAW DESIGN
Reinforce and channel the airflow to completely cover the heat sink.
Reduce the turbulence of adjacent fans and increase air pressure.
Extended heatsink design allows air flow to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.
LCD EDGE VIEW
The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.
ENTHUSIASTVarious GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring.
Users can easily customize texts and fonts.
Support jpg, bmp and png file types. You can crop the image to fit.
Users can upload a favorite GIF video.
TEAM UP. FIGHT ON.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
GeForce RTX™ 3060 Ti with 8G memory and 448 GB/s memory bandwidth has 4864 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.
METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.
You can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation.
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET.
The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
Dust resistant – shields from dust, insects, dropped screws, drill shavings, and abrasion.
Moisture resistant – prevents unwanted conduction paths and board damage.
Corrosion resistant – protects from salt spray, humidity, and corrosion.
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
We want you to experience the best service you have ever had. This is why, on top of our standard 3-year warranty, we would like to offer you an additional 1 year of protection to your graphics card free of charge. You can enjoy a 4-year warranty by registering on the website within 30 days of purchase.
- Graphics Processing : GeForce RTX™ 3060 Ti
- Core Clock : 1800 MHz (Reference Card: 1665 MHz)
- CUDA® Cores : 4864
- Memory Clock : 14000 MHz
- Memory Size : 8 GB
- Memory Type : GDDR6
- Memory Bus : 256 bit
- Memory Bandwidth (GB/sec) : 448 GB/s
- Card Bus : PCI-E 4.0 x 16
- Digital max resolution : 7680×[email protected]
- Multi-view : 4
- Card size : L=290 W=131 H=60 mm
- PCB Form : ATX
- DirectX : 12 Ultimate
- OpenGL : 4.6
- Recommended PSU : 650W
- Power Connectors : 8 pin*1 + 6 pin*1
- Output : DisplayPort 1.4a *3HDMI 2.1*2, HDMI 2.0*1 (The middle HDMI output supports up to HDMI 2.0)
- SLI Support : N/A
- Accessories1. Quick Guide
2. 4-year warranty
3. Metal sticker
