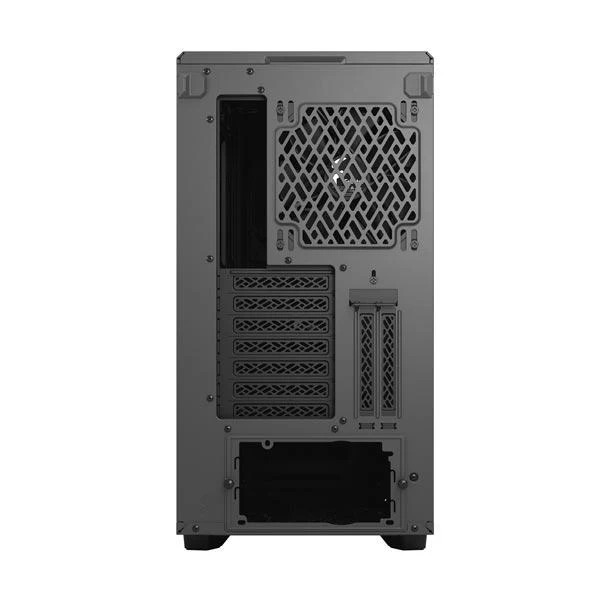

Fractal Design Meshify 2 Light Tempered Glass Mid Tower Gray Cabinet
The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.
- Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
- Spacious adaptable interior for motherboards up to (and including) 285 mm E-ATX
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
Detachable front filter
- New front nylon filter that can be removed for increased airflow

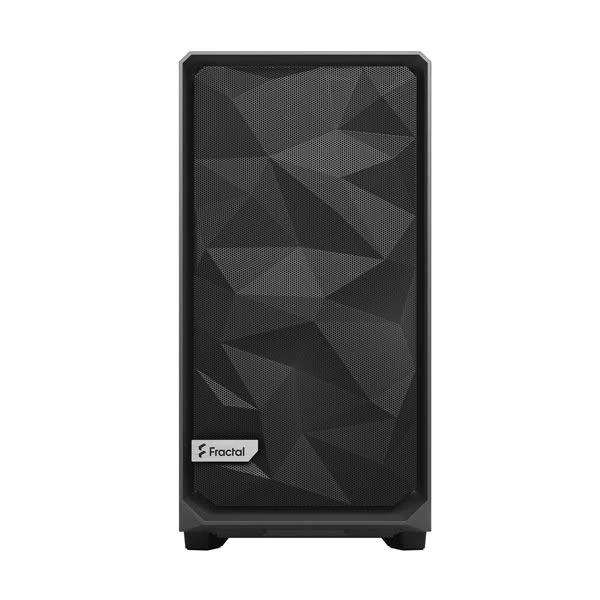

- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans
Superlative storage
- Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)

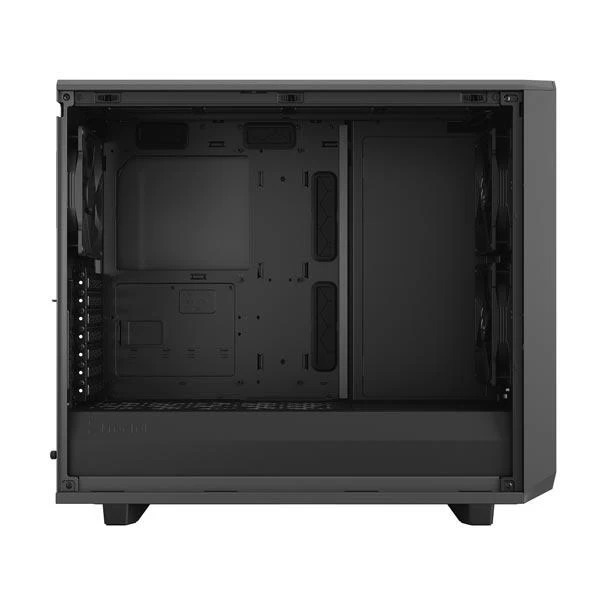

- Transformable interior design utilizing a movable wall for enhancing custom builds
- The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount
- Tool-less, top-latching side panels allow quick access while preventing accidental drops
Extremely flexible
- Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout
- Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)
- Easily holds large motherboards up to and including 285 mm E-ATX

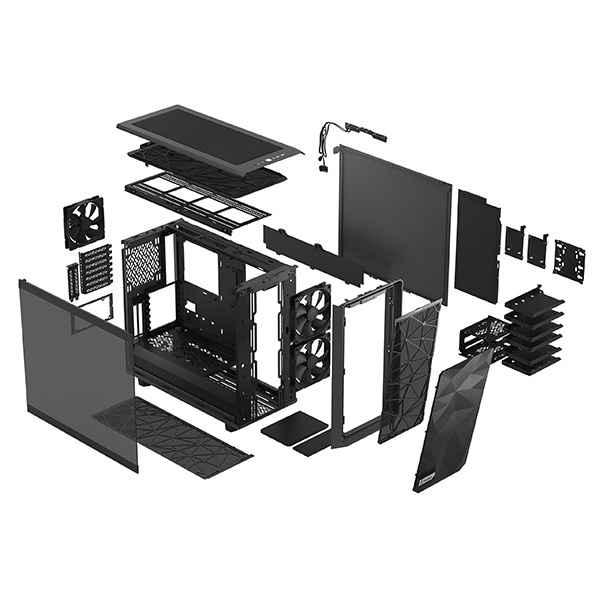

Open and interchangeable

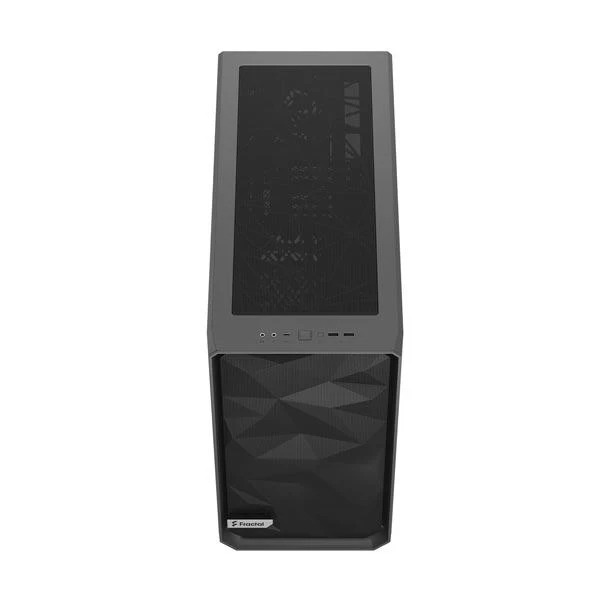

Remove the entire top to build and route with zero hindrance.
Type-C Interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps.
Nexus+ 2 fan hub
Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans
Versatile Multibracket
Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount

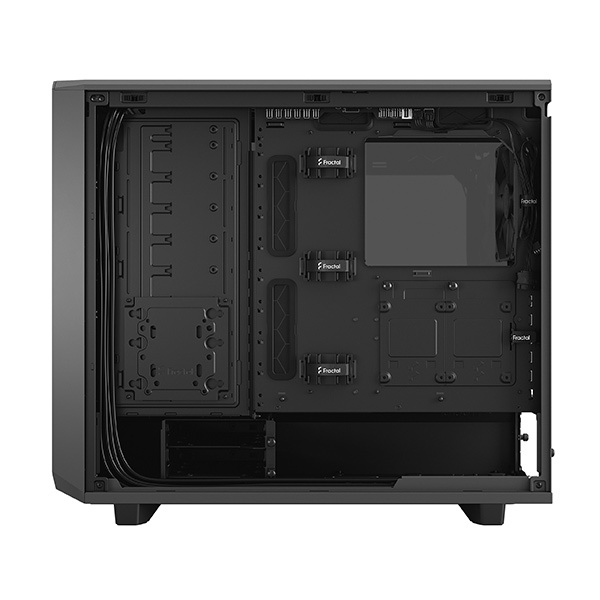

Easy cable management
Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
Specifications
Product Code | FD-C-MES2A-04 |
3.5″/2.5″ Universal drive mounts | 6 included, 14 positions total + 1 Multibracket |
Dedicated 2.5″ drive mounts | 2 included, 4 positions total |
Expansion slots | 7 + 2 |
Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button |
Total fan mounts | 9x 120/140 mm |
Front fan | 3x 120/140 mm (2x Dynamic X2 GP-14 included |
Top fan | 3x 120/140 mm |
Rear fan | 1x 120/140 mm (1x Dynamic X2 GP-14 included) |
Bottom fan | 2x 120/140 mm |
Dust filters | Top, front and bottom |
Fixed velcro straps | Yes |
Cable routing grommets | Yes |
Captive thumbscrews | HDD, SSD and PSU brackets |

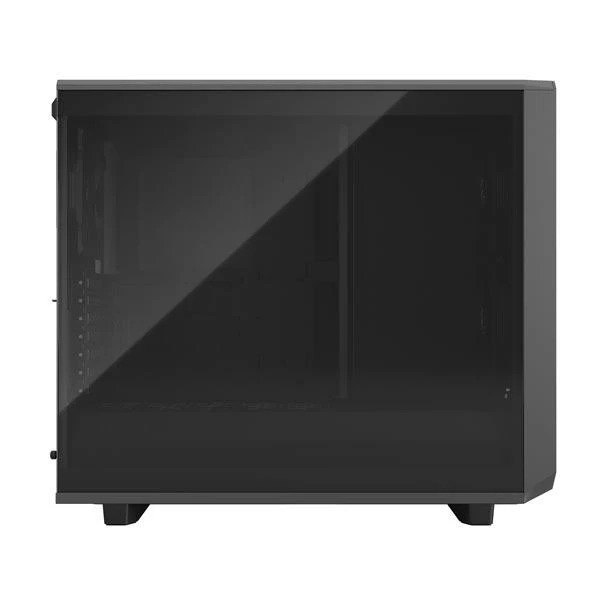

Left side panel | Tempered glass light tint |

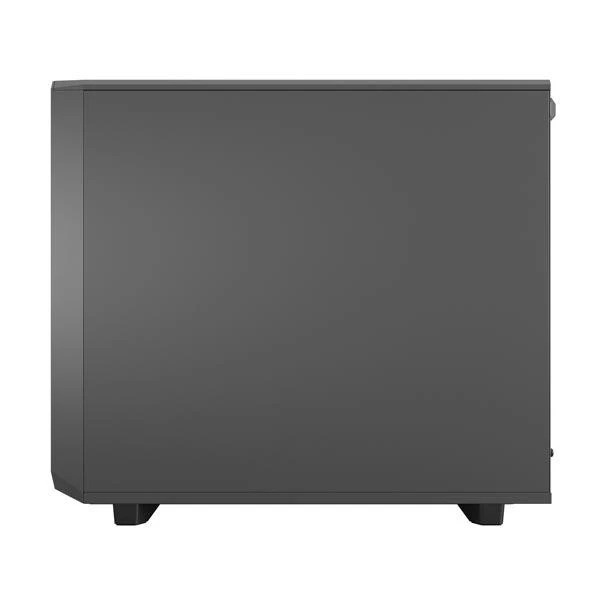

Right side panel | Steel |
Compatibility | |
Power supply type | ATX |
Motherboard compatibility | E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX |
PSU max length | 250 mm (with HDD cage installed) |
GPU max length | Storage layout: 315 mm Open layout: 491 mm (467 mm w/ front fan) |
CPU cooler max height | 185 mm |
Front radiator | Up to 360/280 mm |
Top radiator | Up to 360/420 mm |
Rear radiator | 120 mm |
Bottom radiator | Up to 240/280 mm |
Cable routing space | 30 mm |
Dimensions | |
Case dimensions (LxWxH) | 542 x 240 x 474 mm |
Case dimensions w feet/protrusions/screws | 541 x 240 x 454 mm |
Net weight | Solid: 10.1 kg TG: 10.5 kg |
Package dimensions (LxWxH) | 634 x 542 x 324 mm |
Gross weight | Solid: 12.8 kg TG: 13.2 kg |
Volume | 59 liters |
Warranty | 2 Years |
