Sale!

Fractal Design Define 7 Clear TG Cabinet (Black/White)

Original price was: ₹27,079.Current price is: ₹19,399. (Inclusive of GST)

-28%
Brand:

Out of stock

Email when back in stock

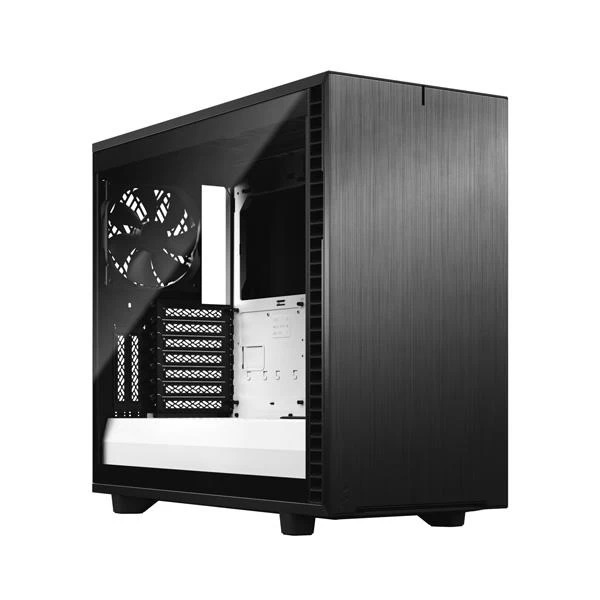

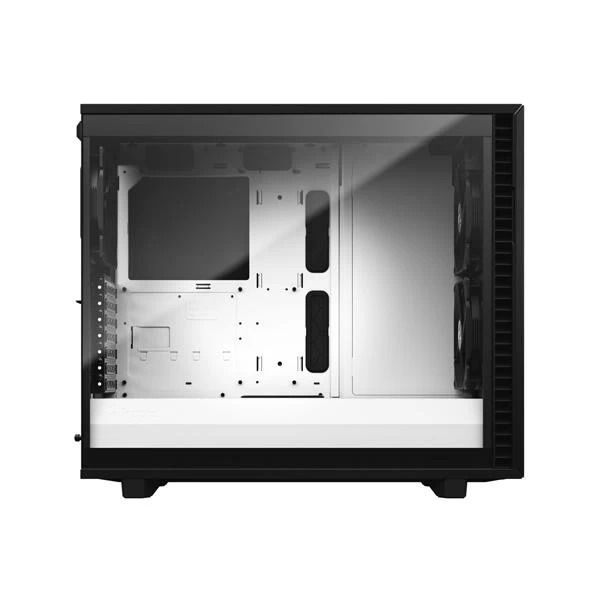

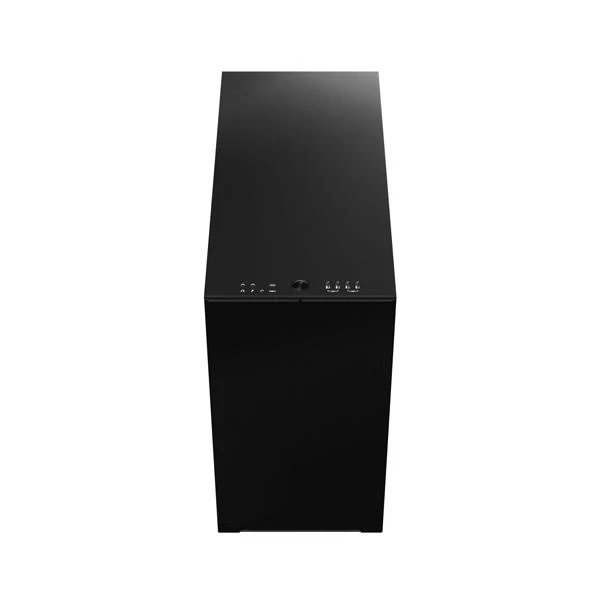

Fractal Design Define 7 Clear Tempered Glass Mid Tower Black White Cabinet

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

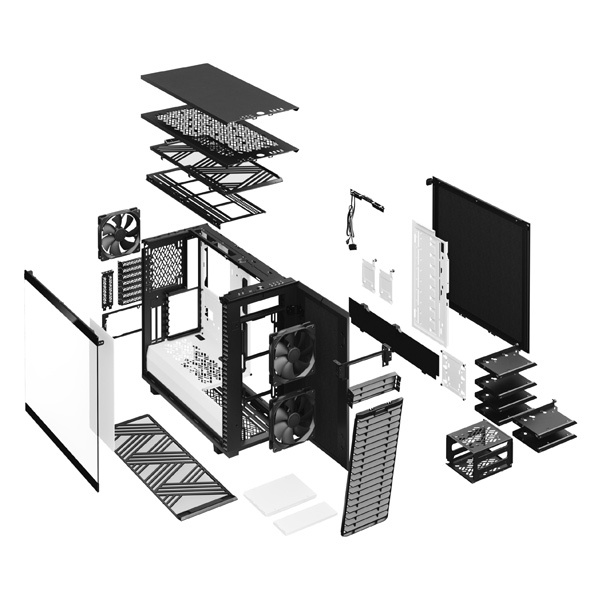

  • New chassis design opens up to fully expose the case interior

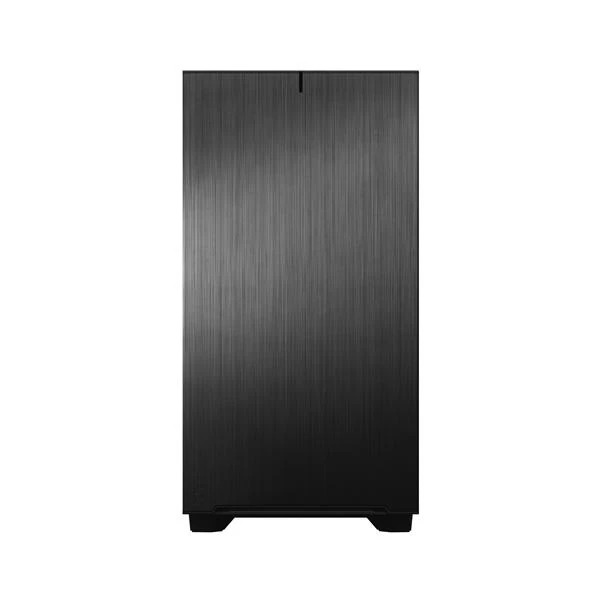

  • Anodized aluminum front panel with reversible dual-handed hinges
  • Multibracket converts unused fan positions to HDD, SSD or pump mounts

Open and interchangeable

Swap in the ventilated panel to add three filtered fan positions;
remove the entire top to build and route with zero hindrance

Superior airflow by design

  • Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.
  • Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

Open layout for massive headroom

  • You’ll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.
  • Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX
  • Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

6 SSD/HDD trays + 2 SSD brackets + 1 Multibracket included

Superlative storage

Convert to Storage Layout and install up to 14 HDDs alongside four dedicated SSDs mounts

  • 6 universal HDD/SSD brackets included with 14 positions total in Storage Layout
  • 2 dedicated SSD brackets included with 4 positions total
  • Versatile Multibracket converts any unused fan position to an HDD, SSD or pump mount
  • Sturdy new HDD cage design with vibration damped trays

Exceptionally silent

Silence-optimized construction with industrial sound-damped front, top, and side panels

Cable management

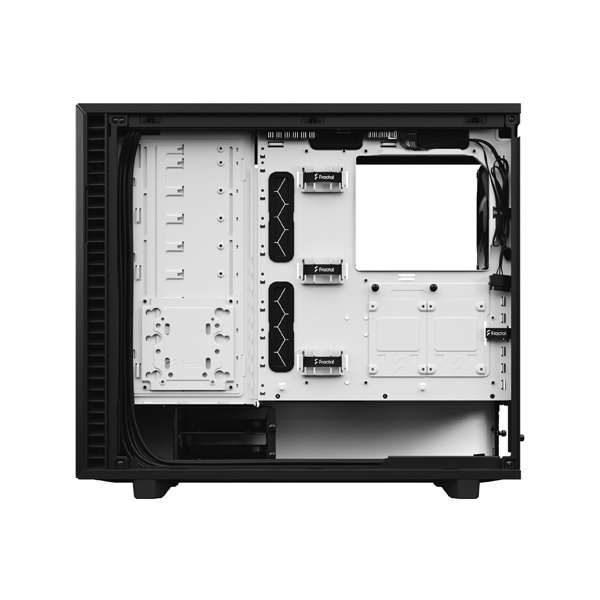

Integrated cable guides with Velcro ties simplifies cable management behind the board

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Type-C interface

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps

Versatile new Multibracket

The included Multibracket lets you convert
any unused fan position to an HDD, SSD or pump mount.

Specifications

Product CodeFD-C-DEF7A-05
3.5″/2.5″ Universal drive brackets6 included, 14 positions total
Dedicated 2.5″ drive brackets2 trays included, 4 positions total
5.25” drive mounts1
Expansion slots7 + 2
Front ports1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts9 x 120/140 mm
Front fan3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
Top fan3 x 120/140 mm
Rear fan1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan2 x 120/140 mm
Dust filtersTop, 2 x front, full length bottom
Fixed velcro strapsYes
Cable routing grommetsYes
Captive thumbscrewsHDD brackets, SSD brackets, PSU bracket
Left side panelTempered glass
Right side panelIndustrial sound-damped steel
Compatibility
Power supply typeATX
Motherboard compatibilityE-ATX (max 285 mm) / ATX / mATX / mITX
PSU max length250 mm (with HDD cage installed)
GPU max lengthStorage layout: 315 mm – Open layout: 491 mm (467 mm w/ front fan)
CPU cooler max height185 mm
Front radiatorUp to 360/280 mm
Top radiatorUp to 360/420 mm
Rear radiator120 mm
Bottom radiatorUp to 240/280 mm
Cable routing space30 mm
Vertical GPU Support (with Flex VRC-25)65mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
Dimensions
Case dimensions (LxWxH)547 x 240 x 475 mm
Case dimensions w feet/protrusions/screws533 x 240 x 451 mm
Net weight13.45 kg
Package dimensions (LxWxH)558 x 363 x 641 mm
Package weight15.94 kg
Volume57.7 liters
Warranty2 Years

Additional information

Weight25 kg
Brand

Fractal Design

Color

Black

Size

Mid Tower

EAN/UPC

7340172702238
