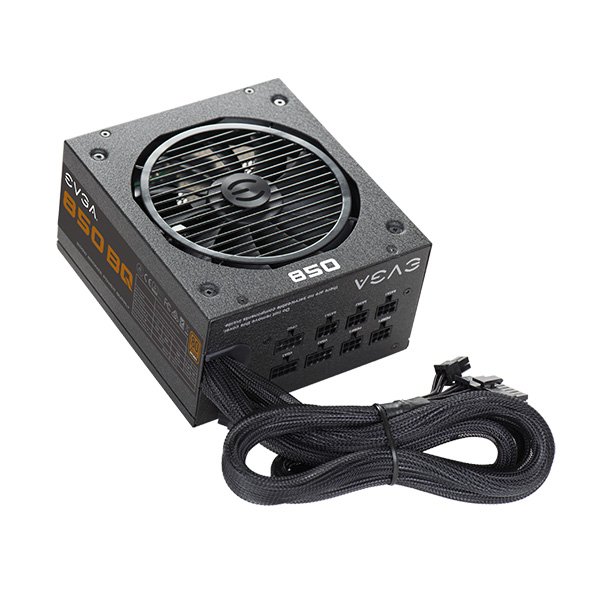

EVGA 850 BQ, 80+ BRONZE 850W, Semi Modular, 5 Year Warranty, Power Supply 110-BQ-0850-V1
Features :
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
- 5 Year Warranty and unparalleled EVGA Customer Support
- Quiet and Intelligent Auto Fan for near-silent operation
Overview :
ULTRA-QUIET
EVGA 850 BQ have Tetan Nana-Sue Bearing tan alans tor noar siont oparation, evan under he tougtest loads
EXCELLENT PERFORMANCE
EVGA 850 BQ has 85% efficiency or higher under typical loads and high quality Japanese brand capacitors ensure long-term reliability.
MODULAR DESIGN
Semi-modular design allows you to only use the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter.
Specs
Heavy-duty protections, including:
- OVP (Over Voltage Protection)
- UVP (Under Voltage Protection)
- OPP (Over Power Protection)
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware.

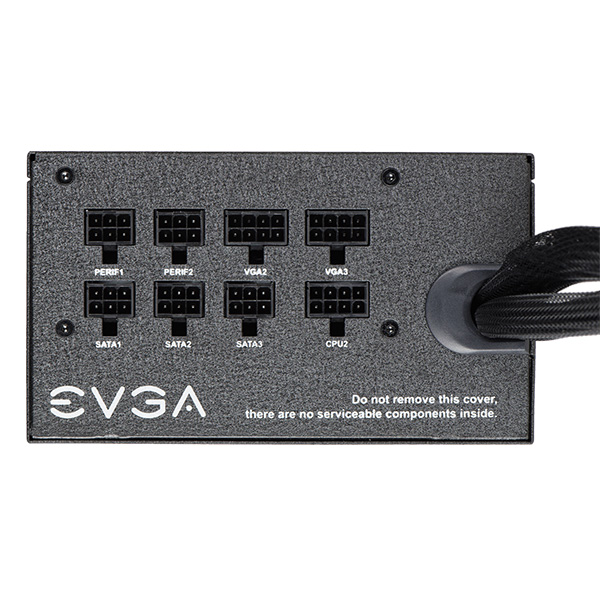

Modular
EVGA 850 BQ have Modular design allows some cables to be removed from the power supply for ease of installation and removal. You can leave off unnecessary cables to reduce case clutter and maximize case airflow.
NVIDIA SLI Ready
EVGA 850 BQ can Run multiple NVIDIA graphics cards for the ultimate gaming experience. The EVGA BQ gives you the power you need to drive these demanding systems and achieve the best overclocks.
80 Plus Bronze Rated Efficiency
80 Plus Bronze certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical loads these power supplies are 85% efficient or higher.
Specifications :

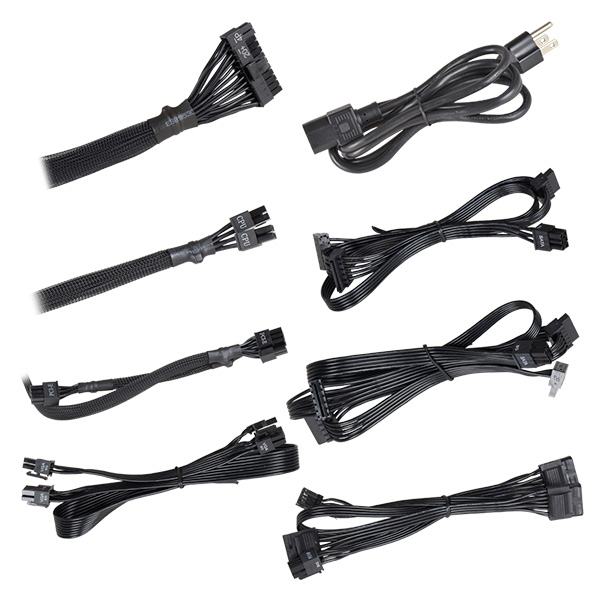

CABLE LENGTH
| ATX Cable | 1x 550mm |
| EPS Cable | 2x 600mm |
| PCIe Cable | 3x 550mm, 700mm |
| SATA Cable | 1x 500mm, 650mm, 800mm, 950mm, 2x 500mm, 650mm, 800mm |
| Four-Pin Peripheral Cable | 1x 550mm, 700mm, 1x 550mm, 700mm, 850mm + 1000mm (Floppy) |
| Floppy Adapter | 1x |
| AC Power | 1x 1800mm |
| Modular Cable Type | Semi-Modular |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 2x 8pin(4+4) |
| PCIe | 3x 8pin (6+2), 3x 6pin |
| SATA | 10x |
| Four-Pin Peripheral | 5x |
| Floppy | 1x |

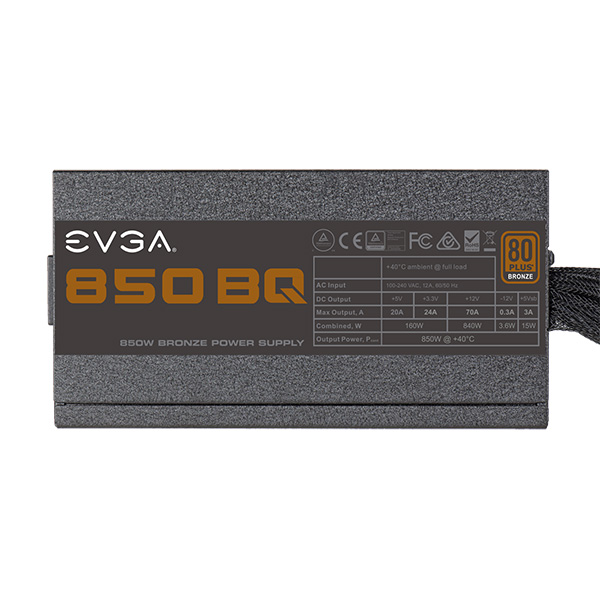

POWER SPECS

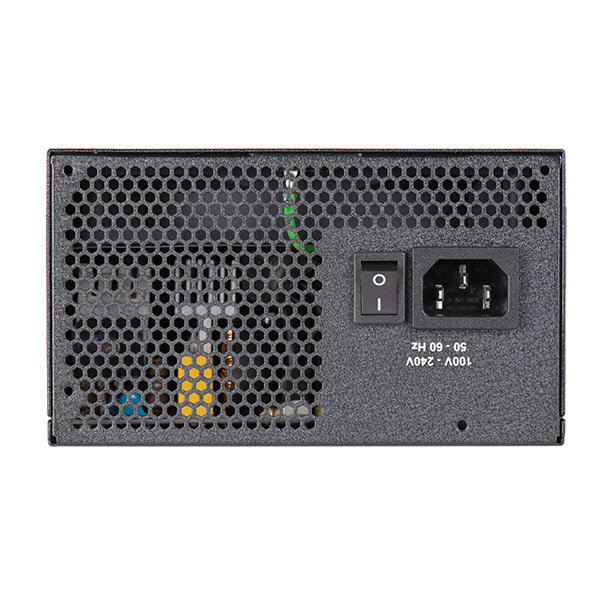

| AC Input | 100-240 VAC, 12A, 60/50 Hz | ||||||
| Rail | +5V | +3.3V | +12V | +5Vsb | -12V | ||
| Max Output | 20A | 24A | 70A | 3A | 0.3A | ||
| 160W | 840W | 15W | 3.6W | ||||
| Total | 850W | ||||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 40° C |
| Japanese Capacitors | Main PCB |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 7.03 lbs |
| Size | 85mm (H) x 150mm (W) x 165mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 140mm Teflon Nano-Steel Bearing |
