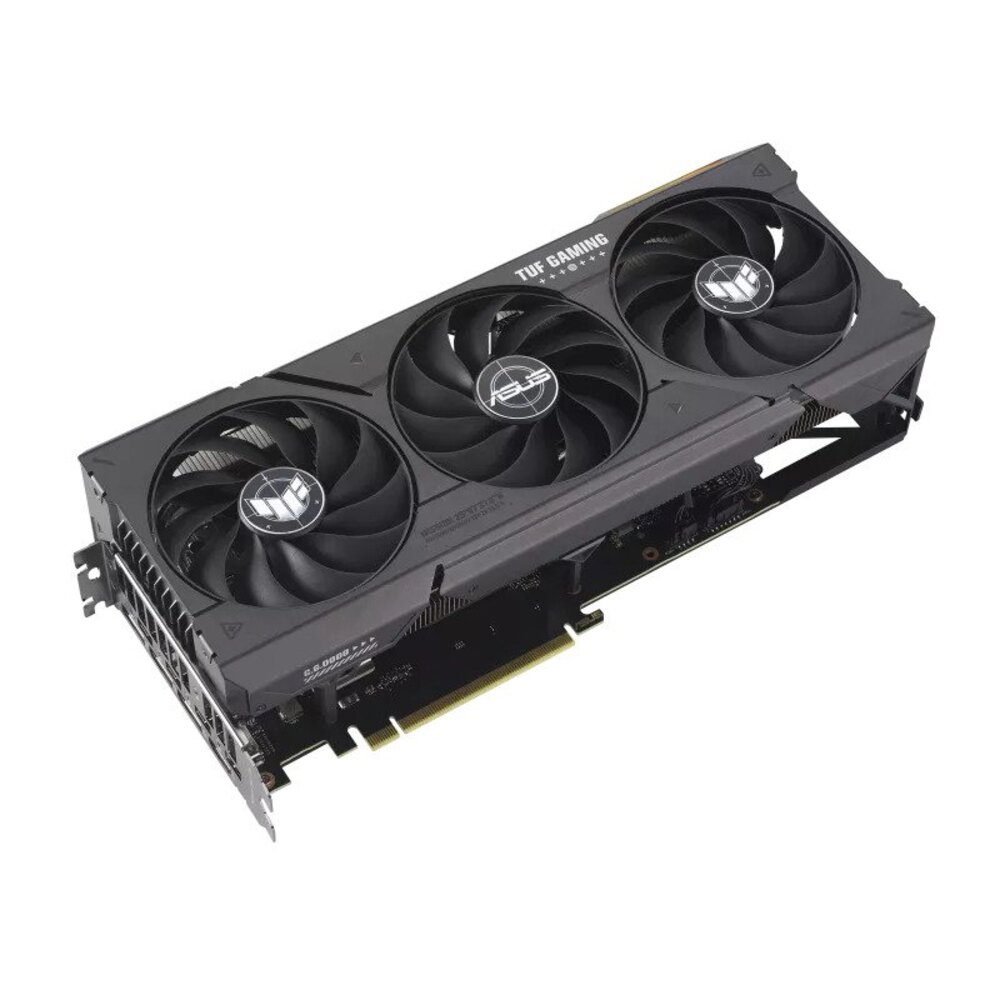

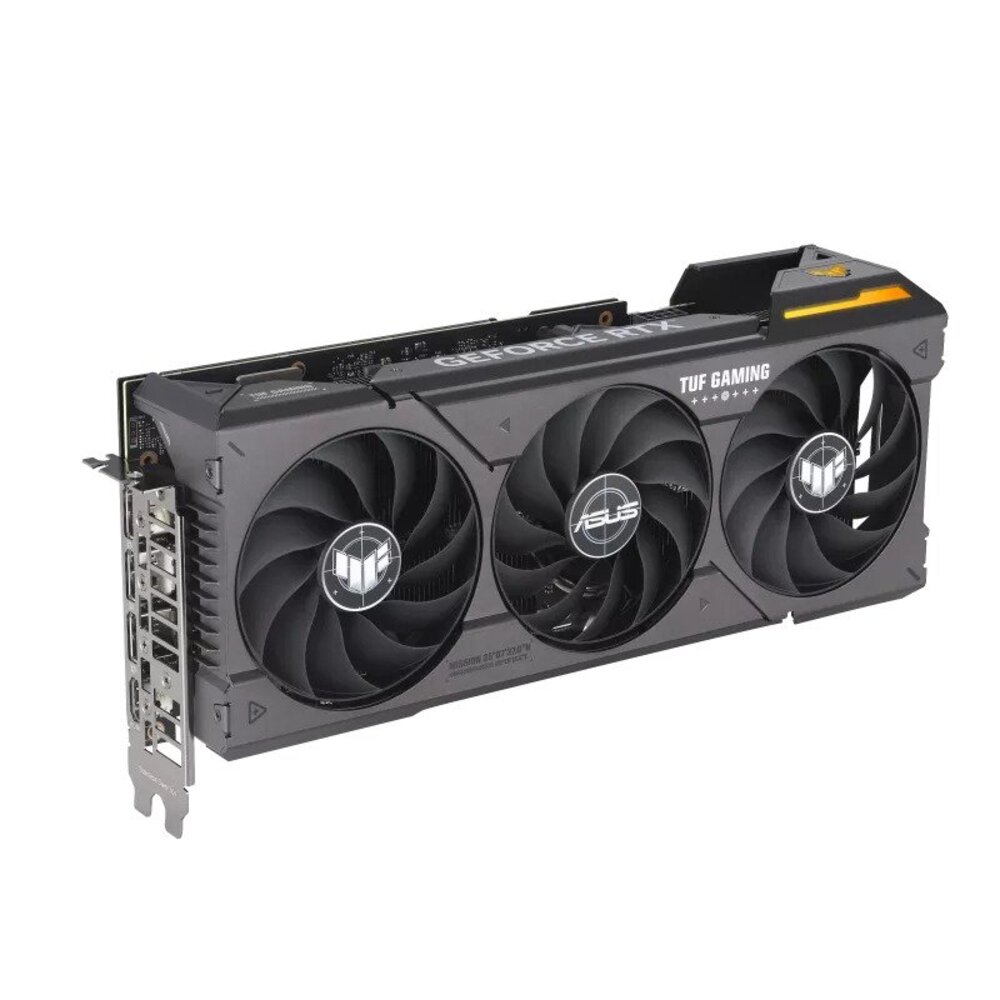

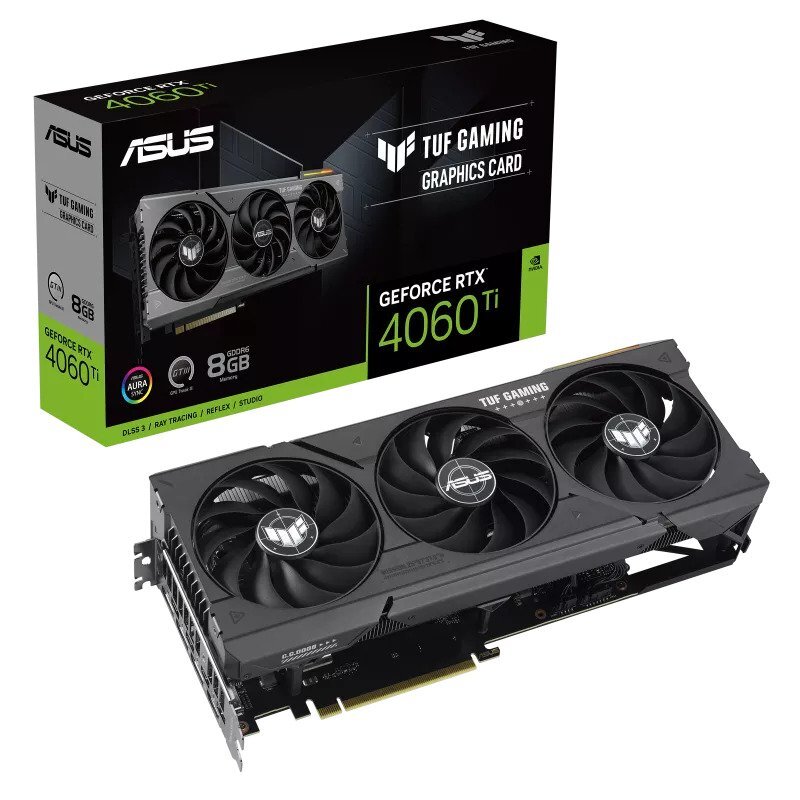

Asus TUF Gaming RTX 4060 Ti 8GB Graphics Card :
ASUS TUF Gaming RTX 4060 Ti 8GB GDDR6 with DLSS 3, lower temps, and enhanced durability
Features of Asus TUF Gaming RTX 4060 Ti 8GB :
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up for 21% more airflow
- Dual ball fan bearings last up to twice as long as conventional designs
- Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Vented exoskeleton adds structural rigidity and vents to increase heat reliability
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Overview of Asus TUF Gaming RTX 4060 Ti 8GB :
ARMED FOR FLOW
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six Lock, load, and dominate with the Asus TUF Gaming RTX 4060 Ti 8GB.
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
Phase That Blaze

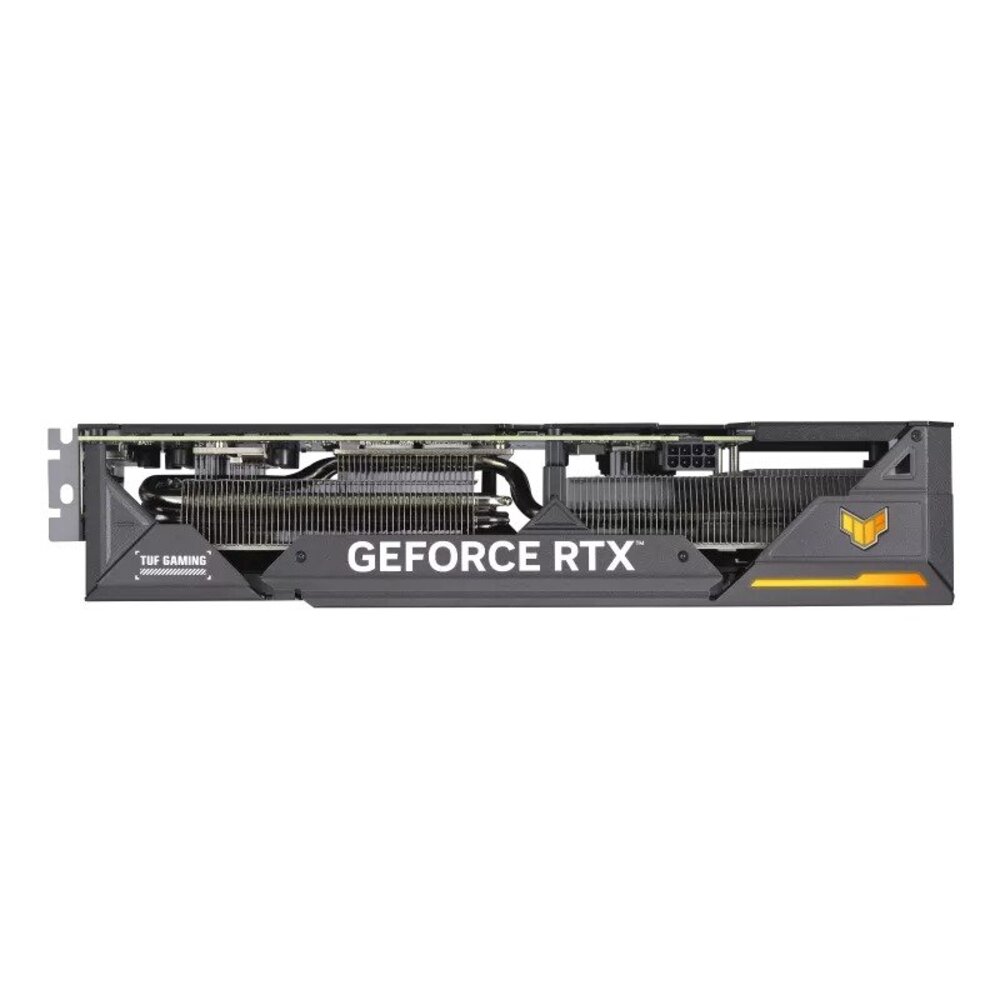

A generously oversized heatsink combo efficiently soak up heat from the GeForce RTX 4060 Ti GPU so that it can be whisked away by the three Axial-tech fans.
MILITARY-GRADE 20K CAPACITORS
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

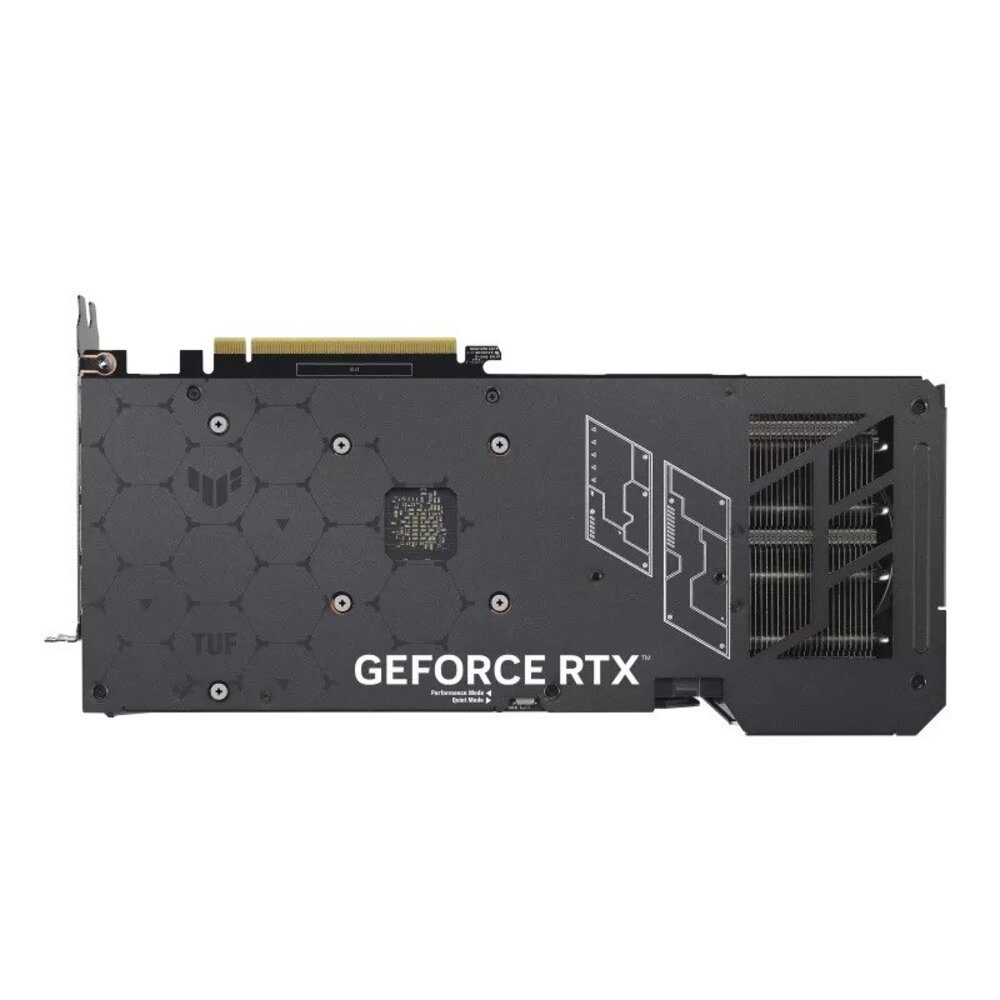

The backplate is made of sturdy aluminium to brace the PCB and sink heat away from onboard components.
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Light ‘em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that’s uniquely you.
GRAPHICS CARD HOLDER
Pillar of Support

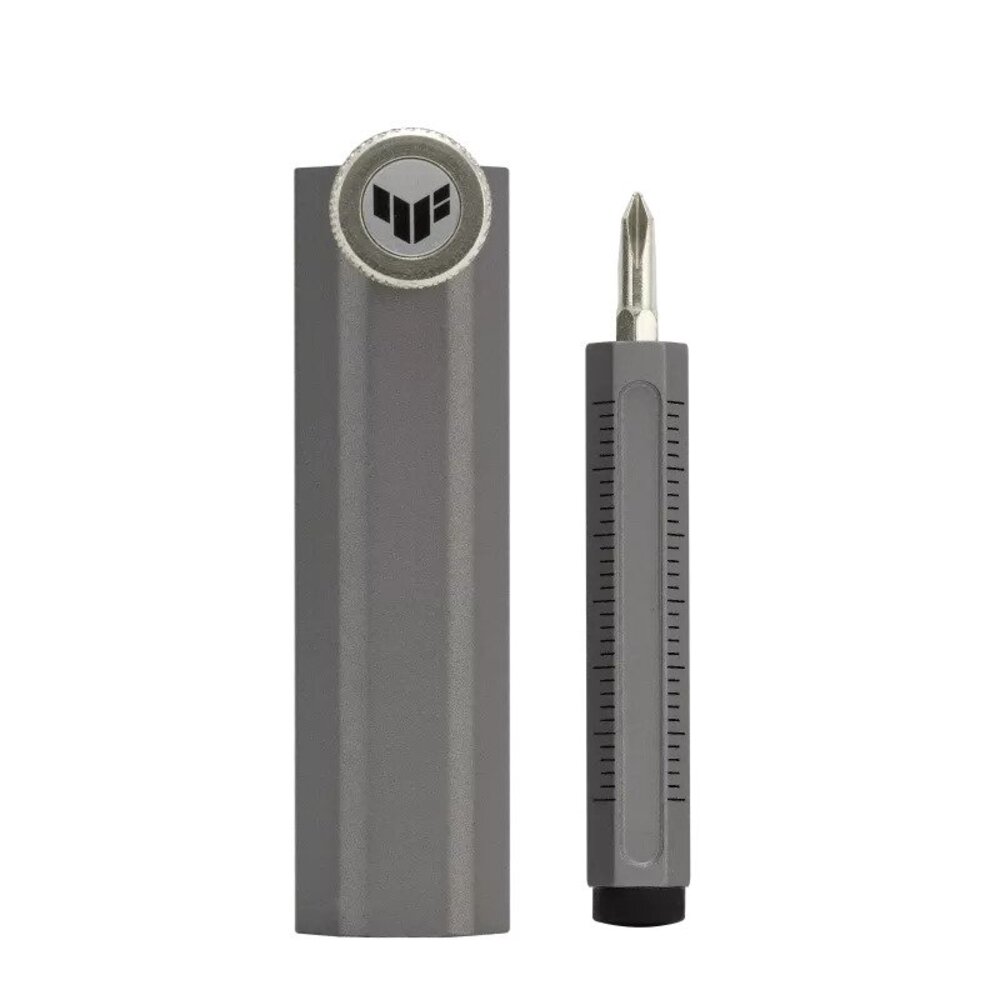

The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
GPU Tweak III
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
Specifications of Asus TUF Gaming RTX 4060 Ti 8GB :
NVIDIA® GeForce RTX™ 4060 Ti
|Bus Standard||PCI Express 4.0|
|Video Memory||8GB GDDR6|
|Engine Clock||OC mode : 2565 MHz|
Default mode : 2535 MHz(Boost)
|Memory Speed||18 Gbps|
|Resolution||Digital Max Resolution 7680 x 4320|
|Interface||Yes x 1 (Native HDMI 2.1)|
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
|Maximum Display Support||4|
|NVlink/ Crossfire Support||No|

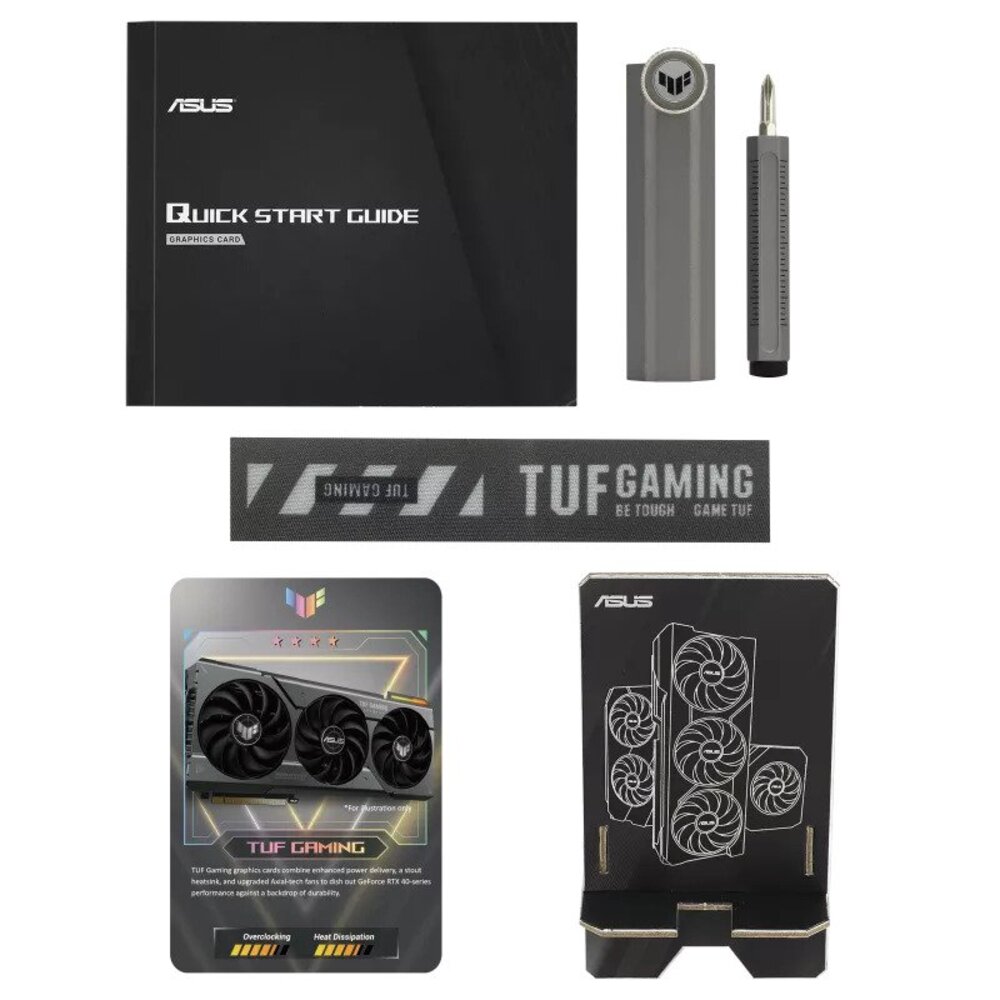

|Accessories||1 x Collection Card|
1 x Speedsetup Manual
1 x Thank you Card
1 x TUF Graphic card holder
1 x TUF Gaming Ceritificate
1 x TUF Velcro Hook & Loop
|Software||ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.|
|Dimensions||300 x 139 x 62.4 mm|
|Power Connectors||1 x 8-pin|
|Note||* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html|
