Asus TUF Gaming RTX 3090 Ti 24GB OC Graphics Card:
- NVIDIA Ampere Streaming Multiprocessors: The all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
- 2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray-tracing performance.
- 3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
- G6X Memory: This is the world’s fastest graphics memory on the GeForce RTX 3090 Ti.
- 8K HDR Gaming GPU, Powered by AI: The GeForce RTX 3090 Ti lets you play, capture, and watch your games in brilliant 8K HDR. It features DLSS 8K gaming, GeForce Experience support for 8K HDR game capture, and AV1 decode for efficient playback of 8K HDR streamed video.
- OC edition: Boost clock 1950 MHz (OC mode)/ 1920 MHz (Gaming mode)
- Axial-tech Fan Design has been newly tuned with a reversed central fan direction for less turbulence.
- Dual Ball Fan Bearings can last up to twice as long as sleeve bearing designs.
- Military-grade Capacitors and other TUF components enhance durability and performance.
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Asus TUF Gaming RTX 3090 Ti 24GB OC has been stripped down and built back up to provide more robust power and cooling. A new all-metal shroud houses three powerful axial-tech fans that utilize durable dual ball fan bearings. Fan rotation has been optimized for reduced turbulence, and a stop mode brings all three fans to a halt at low temps. Beneath, a thick heatsink keeps thermals under tight control. Additional features, including TUF components, Auto-Extreme Technology, and a backplate vent make the TUF a proper powerhouse. For builders looking for a new “old faithful”, this card has your back.

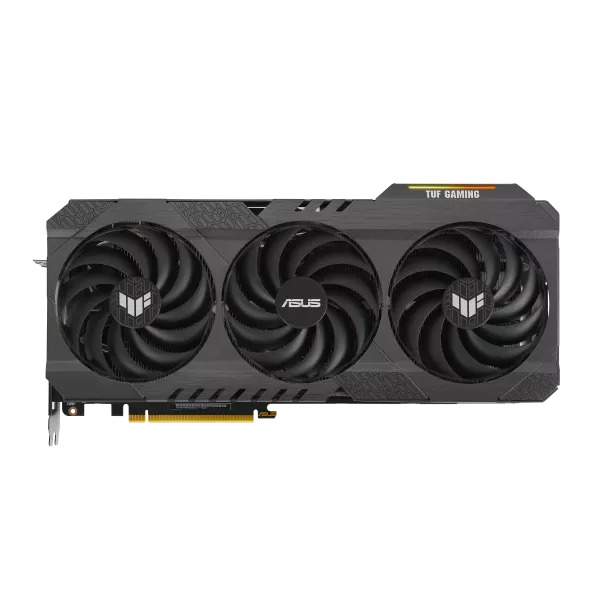

Asus TUF Gaming RTX 3090 Ti 24GB OC leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA’s new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.
To get heat up off the die and into the heatsink array, Asus TUF Gaming RTX 3090 Ti 24GB OC we’ve engaged MaxContact technology to polish the surface of the heat spreader and improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for enhanced thermal transfer.
The heat spreader in Asus TUF Gaming RTX 3090 Ti 24GB OC draws heat up into heat pipes that carry it through a fin stack that fills most of the card’s large, 2.7-slot footprint.
Components are selected for Asus TUF Gaming RTX 3090 Ti 24GB OC based on their durability and performance. In addition to top-shelf chokes and MOSFETs, capacitors that meet military-grade certification make the TUF stand tall amongst the competition. The components are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensure each graphics card meets our rigorous specifications. Finally, to ensure flawless performance when it counts, the cards are subjected to a grueling 144-hour validation trial.
An all-aluminum shroud adds robust protection to Asus TUF Gaming RTX 3090 Ti 24GB OC and a no-nonsense industrial design and grayscale colorway fits into any build with ease.
IT’S COOLER OUT BACK
The underside of the card reveals a host of improvements in Asus TUF Gaming RTX 3090 Ti 24GB OC. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. A conveniently placed Dual Bios switch allows the card’s default performance profile customization without software.
The top-side RGB element can be customized to display a range of aesthetic and functional effects and also synced with other ASUS components to enable uniform lighting. An 8-pin connector fulfills the power demands of the Asus TUF Gaming RTX 3090 Ti 24GB OC, and onboard LEDs light up if the power connectors are not plugged in correctly.
GPU TWEAK II
The ASUS GPU Tweak II utility in Asus TUF Gaming RTX 3090 Ti 24GB OC takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
|Graphic Engine||NVIDIA® GeForce RTX™ 3090 Ti|
|Bus Standard||PCI Express 4.0|
|Video Memory||24GB GDDR6X|
|Engine Clock||OC mode: 1890 MHz(Boost Clock)|
|Gaming mode: 1860 MHz(Boost Clock)|
|Memory Speed||21 Gbps|
|Resolution||Digital Max Resolution 7680 x 4320|
|Interface||Yes x 2 (Native HDMI 2.1)|
|Yes x 3 (Native DisplayPort 1.4a)|
|HDCP Support Yes (2.3)|
|Maximum Display Support||4|
|NVlink/ Crossfire Support||Yes|
|Accessories||1 x Collection card|
|1 x Speedsetup Manual|
|1 x 16-pin to 8-pin Adapter Cable|
|Software||ASUS GPU Tweak II & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.|
|Dimensions||325.9 x 140.2 x 62.8 mm|
|12.83 x 5.52 x 2.47 inches|
|Power Connectors||1 x 16-pin|
