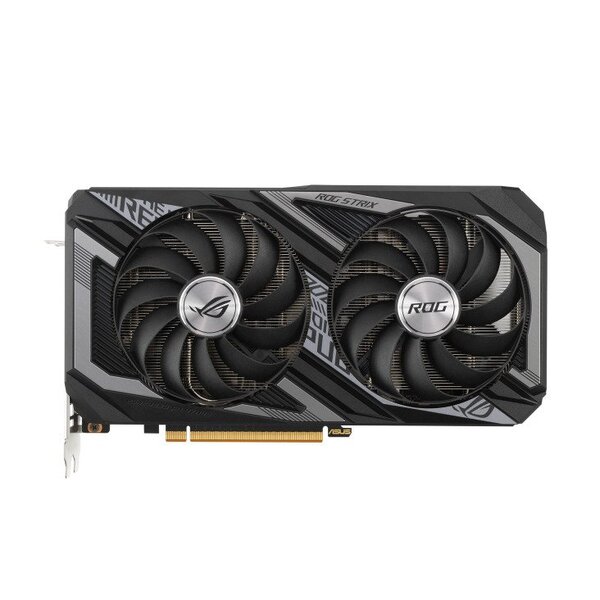

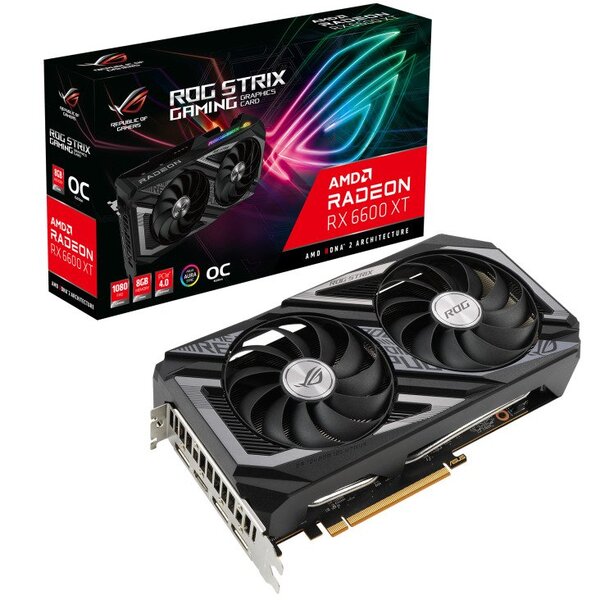

Asus ROG Strix RX 6600 XT OC 8GB Gaming Graphics Card:
Features:
ROG Strix Radeon™ RX 6600 XT OC Edition 8GB GDDR6 is a cooling and power-performance juggernaut.
- Axial-tech Fan Design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
- Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles sans software.
- Auto-Extreme Technology uses automation to enhance reliability.
- A vented backplate prevents hot air from recirculating through the cooling array.
Overview:
TAKE FLIGHT
Asus ROG Strix RX 6600 XT OC 8GB amps Full HD frame rates to meet the demands of the latest high-speed displays. Dual Axial-tech fans efficiently blast air through a large heatsink to keep the GPU chilled, and top-shelf capacitors, chokes, and MOSFETs deliver the perfect amount of clean power. A host of creature comforts, including a Dual BIOS switch, 0dB mode, and metal backplate up the ante to make this beast the ideal choice for your next gaming rig.
DYNAMIC DUO
Asus ROG Strix RX 6600 XT OC 8GB Both Axial-tech fans feature half-width barrier rings to increase airflow through the cooling array.
PREMIUM COMPONENTS
Asus ROG Strix RX 6600 XT OC 8GB Premium alloy chokes, solid polymer capacitors, and an array of high-current power stages handle power delivery with ease. The Super Alloy Power II parts are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Precise joints and the elimination of human error ensures each graphics card meets our rigorous specifications.
FIERCE SHROUD
Asus ROG Strix RX 6600 XT OC 8GB A striking shroud with metal accents mirrors the design aesthetic of ROG and ROG Strix motherboards. Textured accents in a greyscale colorway blend seamlessly into subtle builds or make a striking impact while the card is vertically mounted and lit by chassis LEDs

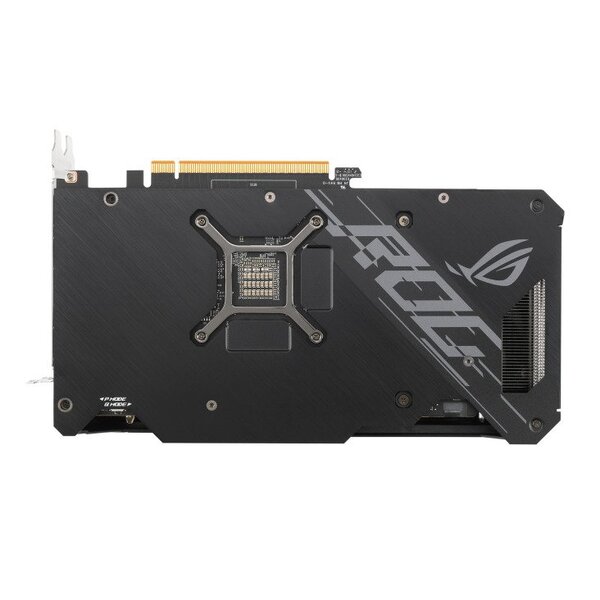

ARMORED UNDERSIDE
Asus ROG Strix RX 6600 XT OC 8GB The underside of the card reveals further improvements. Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. A GPU bracket provides extra stability to the critical connection between die and heat spreader. Stainless steel is used for the I/O bracket to protect ports and provide a more secure mount. And a conveniently placed Dual BIOS switch allows customization of the card’s default performance profile without software.
Specifications:
| Brand | Asus |
| Model | ROG-STRIX-RX6600XT-O8G-GAMING |
| Chipset | AMD |
| GPU | Radeon RX 6600 |
| GPU Series | AMD Radeon 6000 Series |
| Interface | PCI Express 4.0 |
| Engine Clock | OC mode : up to 2607 MHz (Boost Clock)/up to 2448 MHz (Game Clock) Gaming mode : up to 2607 MHz (Boost Clock)/up to 2428 MHz (Game Clock), |
| Stream Processors | 2048 |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Interface | 128-Bit |
| Memory Speed | 16 Gbps |
| Max Resolution | Digital Max Resolution 7680 x 4320 |

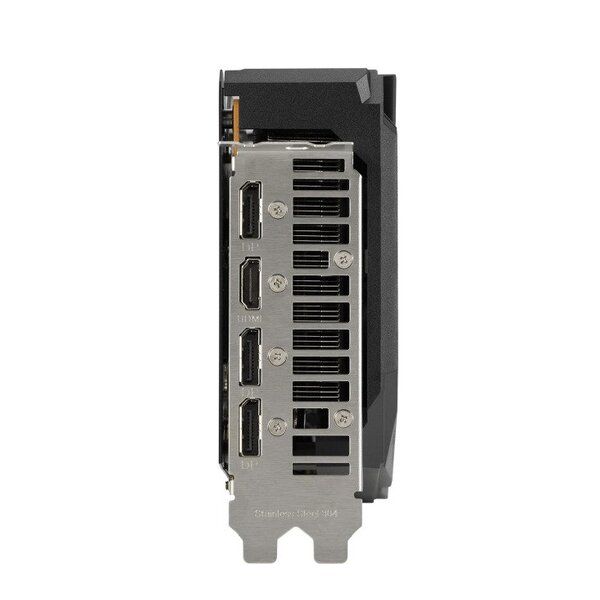

| Ports | Yes x 1 (Native HDMI 2.1) Yes x 3 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | Yes |
| OpenGL | OpenGL 4.6 |
| Cooler | Dual Fans |
| Software | ASUS GPU Tweak II & Drivers: please download all software from the support site. |
| Power requirement | 500W |
| Power Connector | 1 x 8-pin |
| FORM FACTOR & DIMENSIONS | |
|---|---|
| Max GPU Length | 243 mm |
| Slot | 2.6 |
| Card Dimensions (L x H) | 243 x 134 x 52 mm 9.6 x 5.3 x 2.0 inch, |
| WARRANTY | |
| Warranty | 3 Years Manufacturer’s Warranty |
