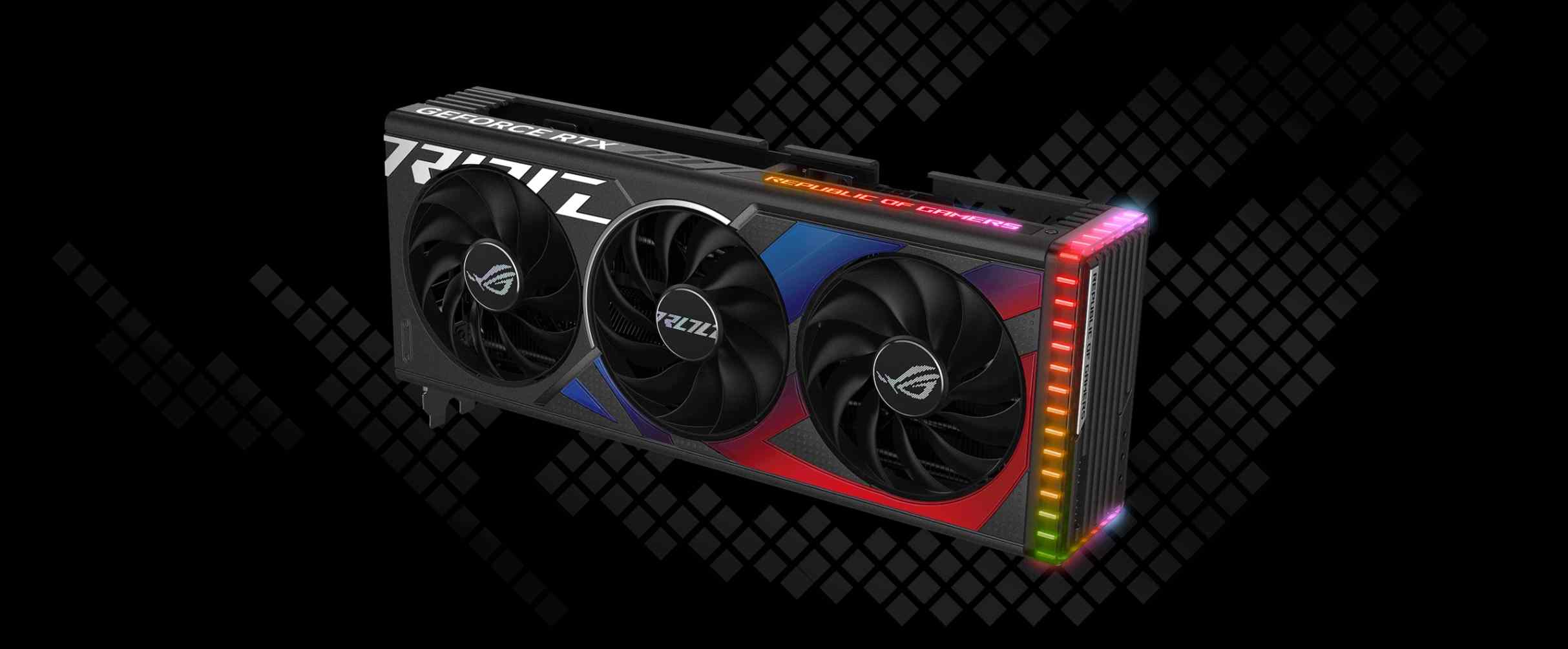

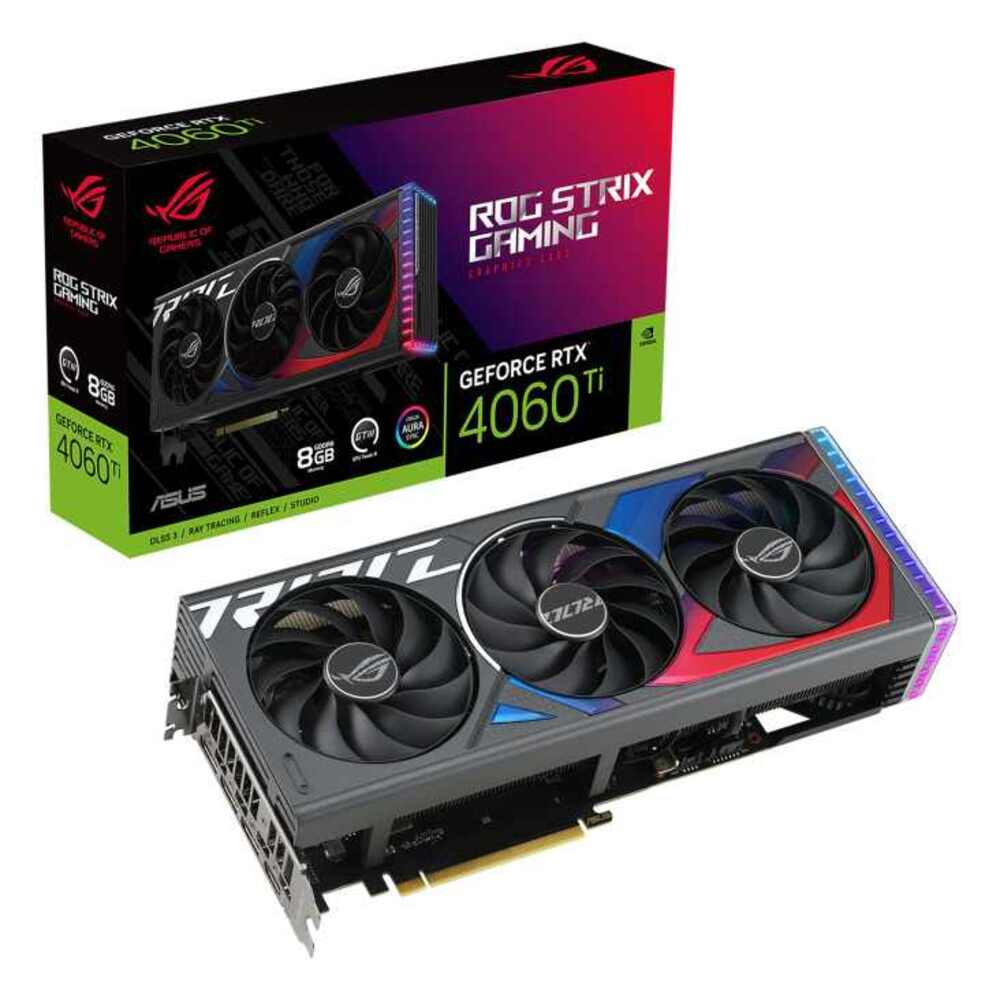

Asus ROG Strix RTX 4060 Ti 8GB Graphics Card :
ROG Strix GeForce RTX™ 4060 Ti 8GB GDDR6 with DLSS 3 and chart-topping thermal performance.
Features of Asus ROG Strix RTX 4060 Ti 8GB :
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Axial-tech fans scaled up for 21% more airflow
- 3.1-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Vented backplate works in tandem with upgraded Axial-tech fans to maximize heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Overview of Asus ROG Strix RTX 4060 Ti 8GB :
WITH THE INCREDIBLE SUM OF ITS PARTS

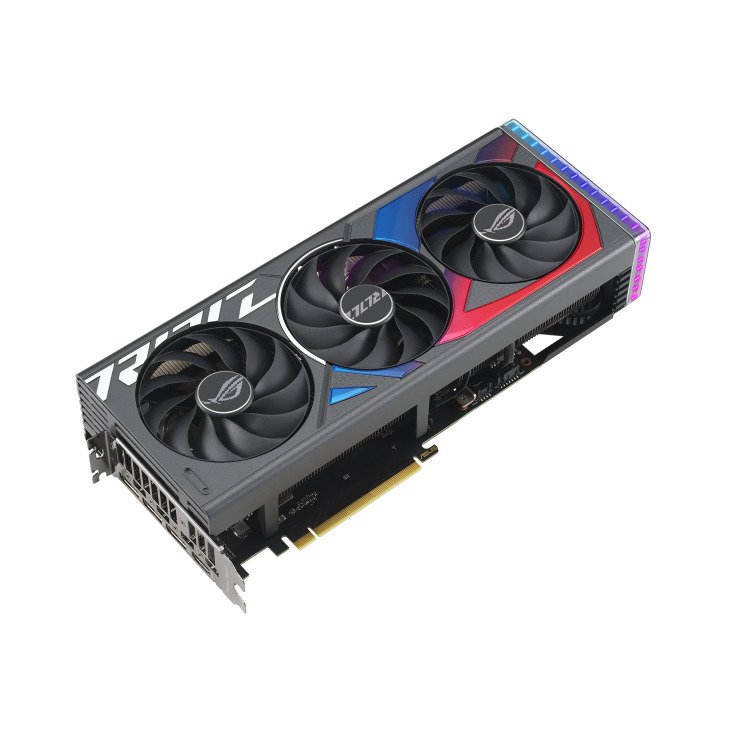

The Asus ROG Strix RTX 4060 Ti 8GB brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.

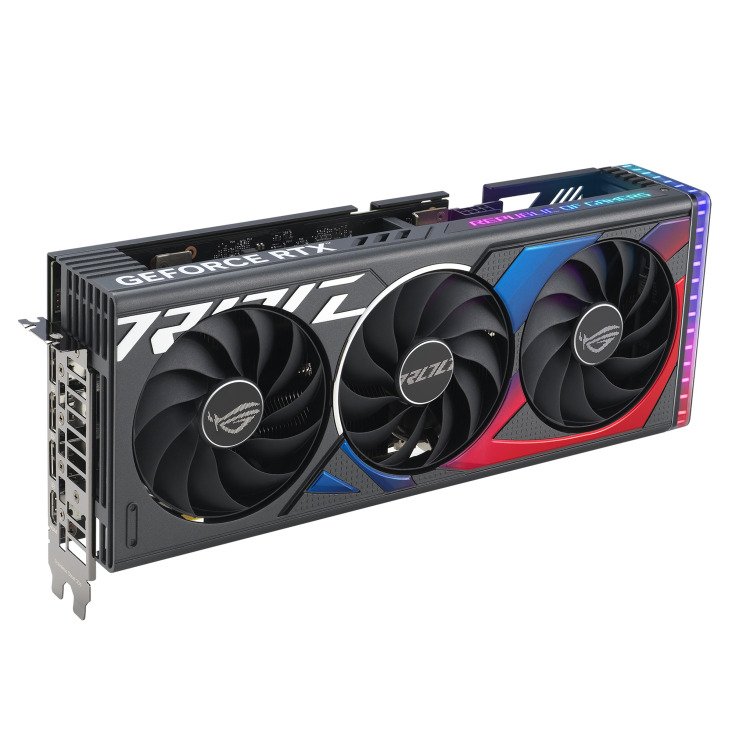

A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.

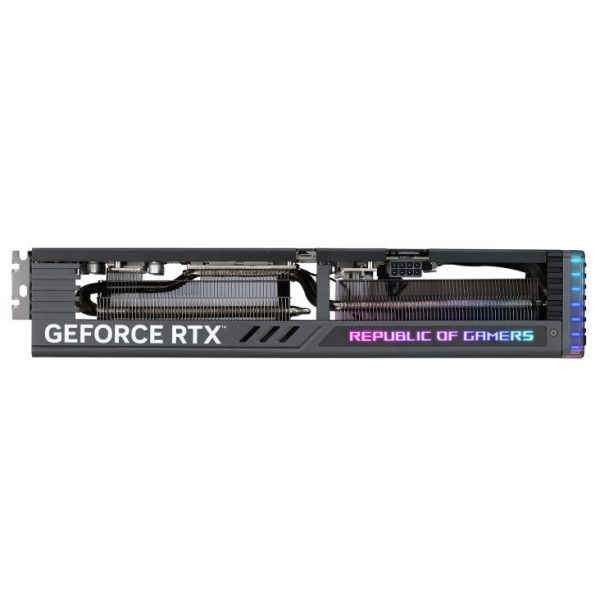

Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4060 Ti GPU so that it can be efficiently whisked away by the three Axial-tech fans.
Premium Power Delivery
Digital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.
Packs a Punch

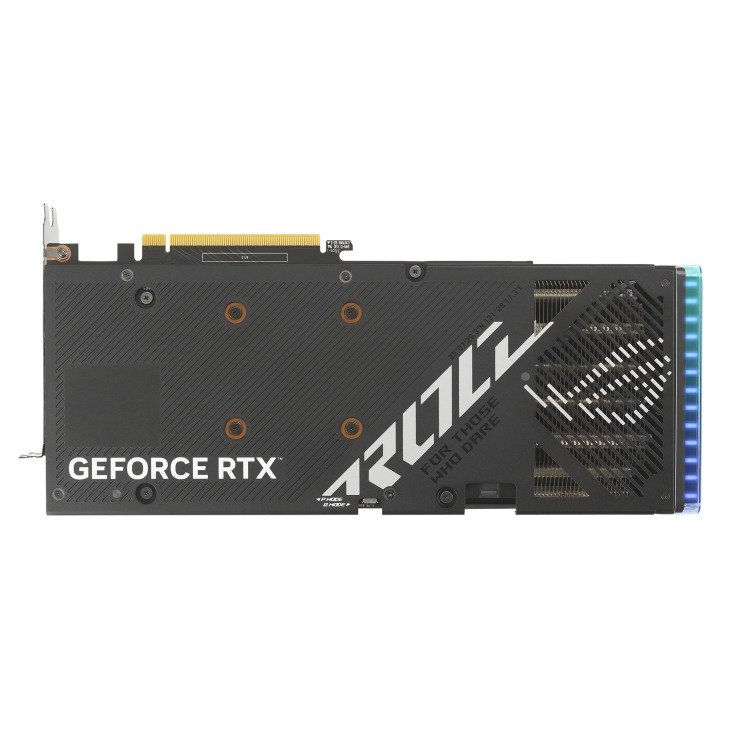

Component and trace layouts have been optimized onto a short PCB to reduce power losses and let heat escape through a massive backplate vent.
The backplate is made of sturdy aluminium to brace the PCB and sink heat away from onboard components.

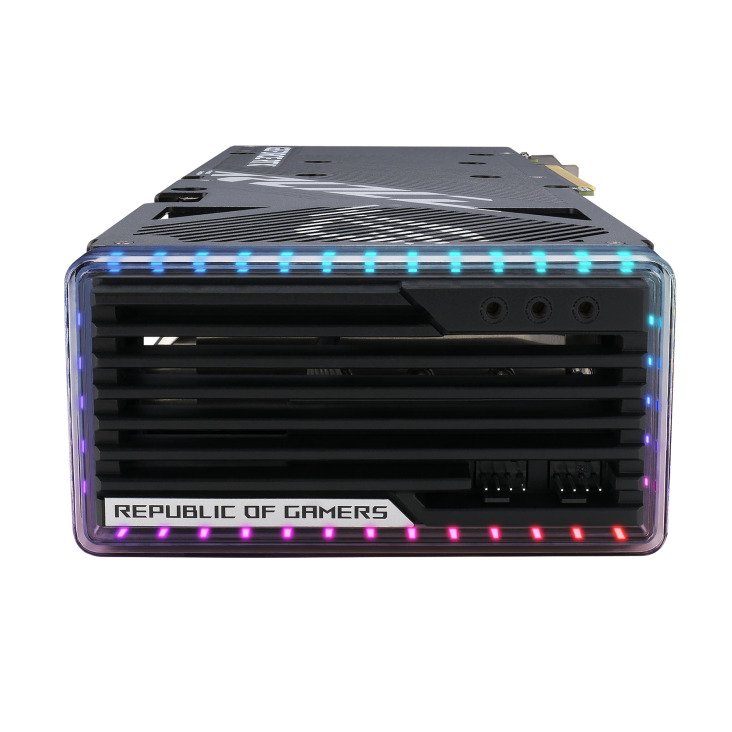

Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.

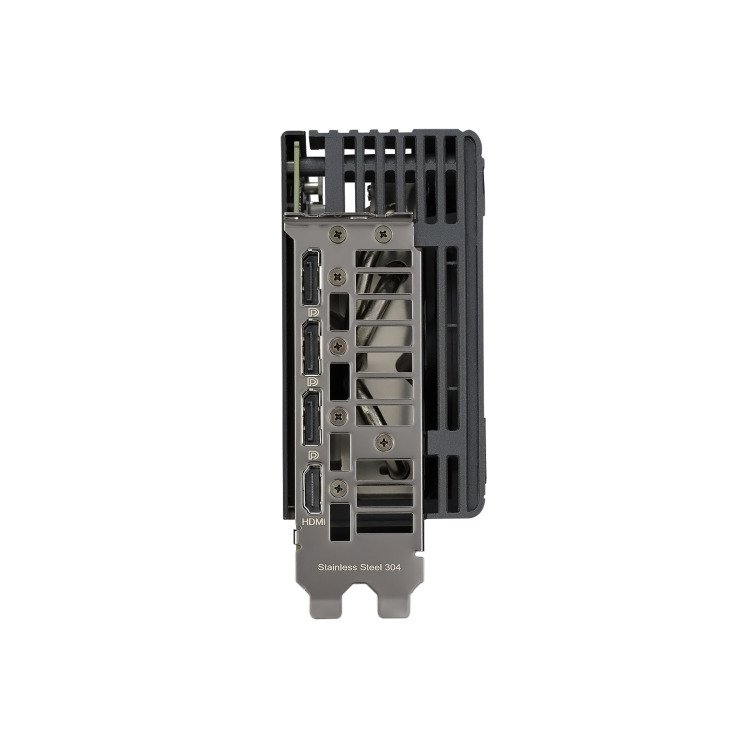

The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.
Know if your PSU is worthy. ROG Strix GeForce RTX 4060 Ti graphics cards feature a high-speed circuit that constantly monitors input power from the PSU and utilizes conveniently placed LEDs to indicate voltage regulation issues and cable connection problems.
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Symphony of Light
Aura-compatible ARGB lighting elements on the shroud and rightmost perimeter of the card provide endless possibilities for personalization with color or functional effects. Pair up with a vast range of compatible system components and coordinate the glow to create a build that’s uniquely you.

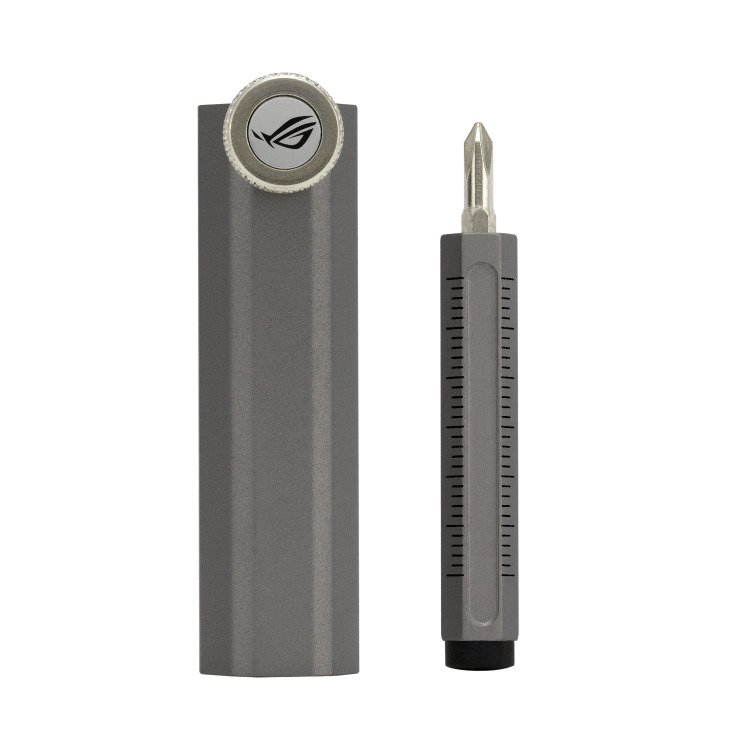

Graphics Card Holder
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
GPU Tweak III
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and our Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display, and logging capabilities ensure that you get the most out of your graphics card.
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
Specifications of Asus ROG Strix RTX 4060 Ti 8GB :
|Graphic Engine||NVIDIA® GeForce RTX™ 4060 Ti|
|Bus Standard||PCI Express 4.0|
|Video Memory||8GB GDDR6|
|Engine Clock||OC Mode: 2565MHz|
Default Mode: 2535MHz (Boost)
|Memory Speed||18 Gbps|
|Resolution||Digital Max Resolution 7680 x 4320|
|Interface||Yes x 1 (Native HDMI 2.0b)|
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
|Maximum Display Support||4|
|NVlink/ Crossfire Support||No|

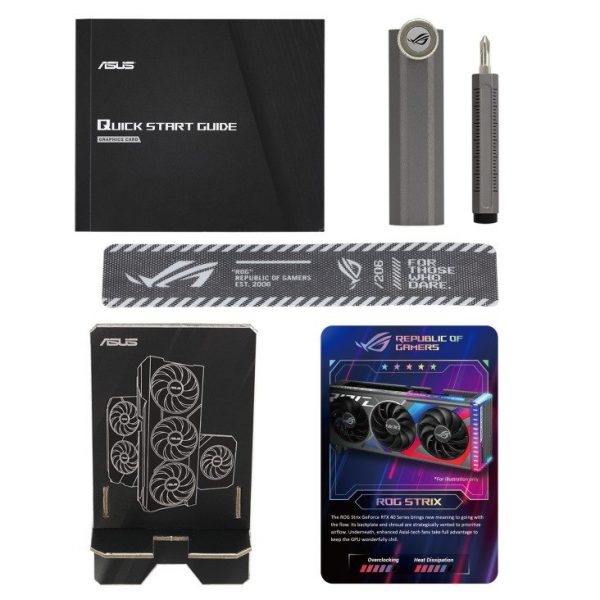

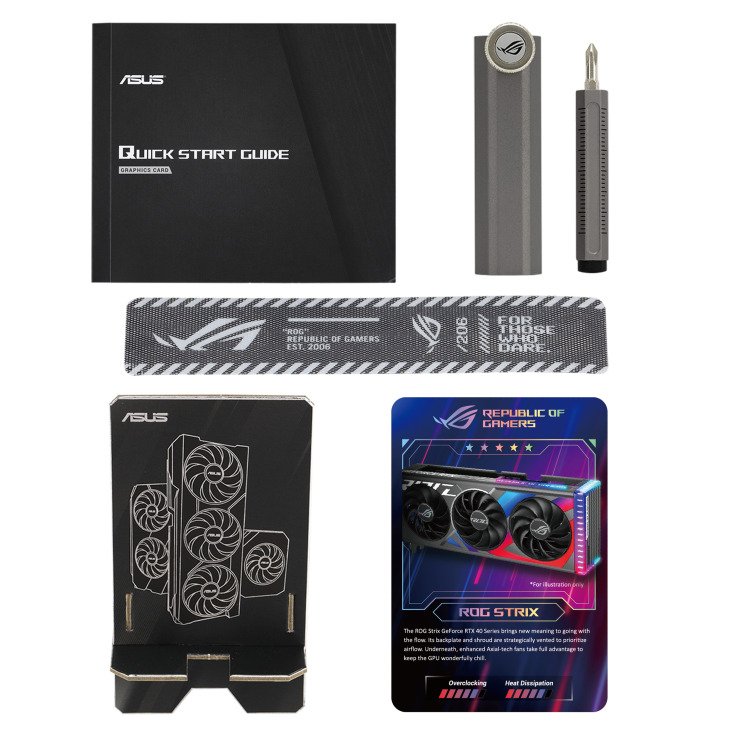

|Accessories||1 x Collection Card|
1 x Speedsetup Manual
1 x Thank you Card
1 x ROG Graphics card holder
1 x ROG Velcro Hook & Loop
|Software||ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.|
|Dimensions||311.4 x 133.5 x 61.9mm|
|Power Connectors||1 x 8-pin|
|Note||* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html|
