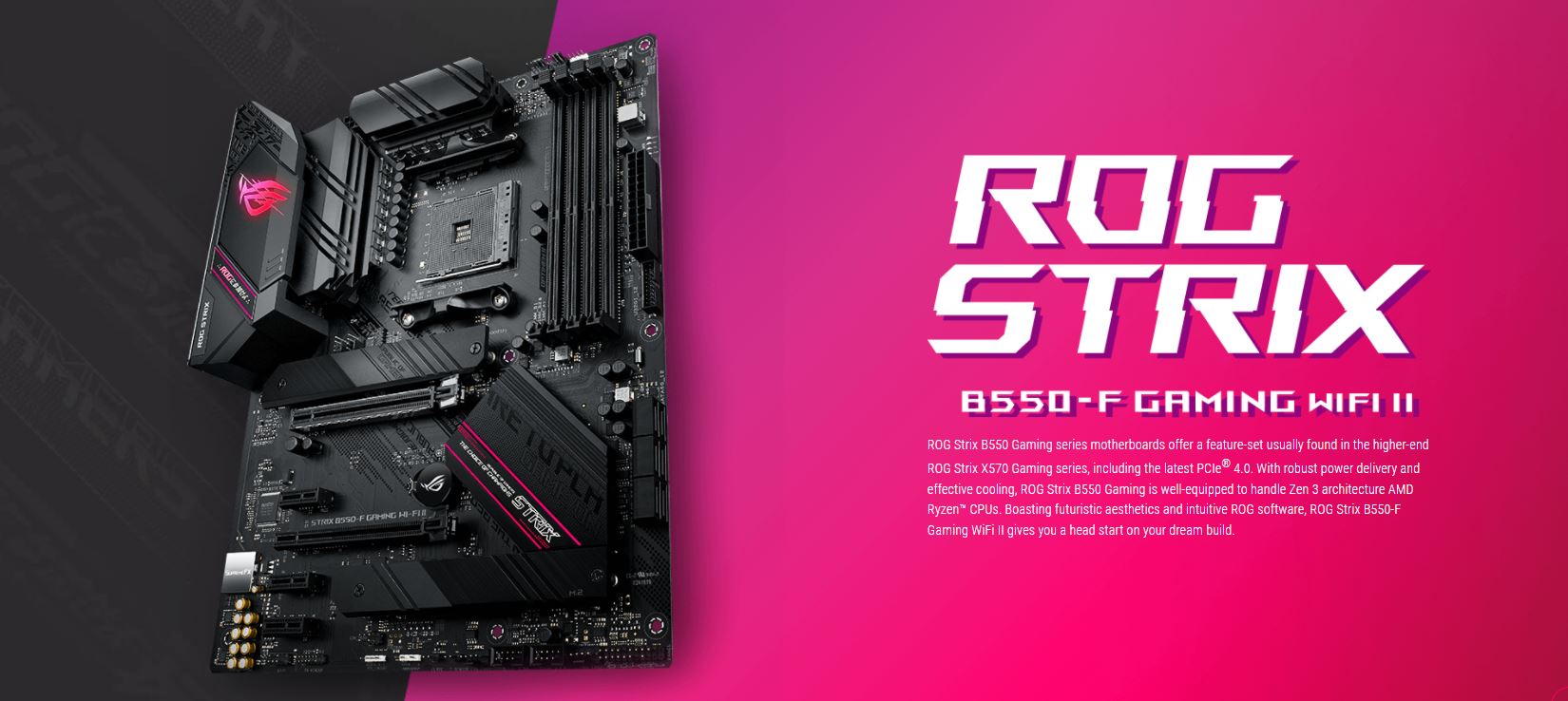

Asus ROG Strix B550-F Gaming WiFi II
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, 12+2 teamed power stages, Intel® 2.5 Gb Ethernet, WiFi 6E, Two-Way AI Noise Cancelation, dual M.2 slots with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AM4 socket: Ready for AMD Ryzen™ 3000 and 5000 series, plus 5000 and 4000 G-series desktop processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2 slots, USB 3.2 Gen 2 Type-C®, plus HDMI® 2.1 and DisplayPort™ 1.2 output
- Smooth networking: On-board WiFi 6E (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard
- Robust power solution: 12+2 teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking for easy configuration
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB and addressable Gen 2 RGB headers
- Industry-leading gaming audio: Two-Way AI Noise Cancelation, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive sound
Asus ROG Strix B550-F Gaming WiFi series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, With robust power delivery and effective cooling, Asus ROG Strix B550-F Gaming WiFi gives you a head start on your dream build.
Advance Your Gaming Immersion
Asus ROG Strix B550-F Gaming WiFi Motherboard is PCIe® 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience.
Asus ROG Strix B550-F Gaming WiFi Motherboard provides robust power delivery to fuel Ryzen’s cores, comprehensive cooling, and support for faster memory Asus ROG Strix B550-F Gaming WiFi it has everything you need to load up your build with high-performance components for playing in the big leagues.
Play Your Own Style
Asus ROG Strix B550-F Gaming WiFi Motherboard The cyberpunk-inspired aesthetics are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style.
ROG Gives You More
Asus ROG Strix B550-F Gaming WiFi Motherboard has ROG-exclusive software utilities that deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
WiFi 6 (802.11 ax)
Asus ROG Strix B550-F Gaming WiFi Motherboard with Onboard WiFi 6 (802.11ax) supports ultrafast wireless networking speeds, improved capacity, and better performance in dense wireless environments, providing exceptional online gaming experiences. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. Find out more about ASUS WiFi 6 solutions.
Intel 2.5 Gb Ethernet
Asus ROG Strix B550-F Gaming WiFi with Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming.
ASUS OptiMem II
Asus ROG Strix B550-F Gaming WiFi Motherboard To provide AMD’s latest CPUs unfettered access to memory bandwidth, motherboard trace routing has been reimagined with the ROG Strix B550-F Gaming (Wi-Fi). Integrated OptiMem II technology carefully maps memory signal pathways across PCB layers to reduce vias, and it also adds shielding zones that significantly reduce crosstalk. A highly customized Daisy Chain layout delivers time-aligned signaling. further enhance overclocking headroom for fully stacked memory configurations, a highly customized Daisy Chain layout delivers time-aligned signaling.
Asus ROG Strix B550-F Gaming WiFi Motherboard Pre-mounted I/O shield
The patented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install on the motherboard.
Asus ROG Strix B550-F Gaming WiFi Motherboard has Four onboard LEDs that indicate power status and any problem with the CPU, memory, graphics card, or boot device for quick diagnosis.
Asus ROG Strix B550-F Gaming WiFi Motherboard The reinforced ASUS SafeSlot provides stronger PCIe device retention and greater shearing resistance.
Asus ROG Strix B550-F Gaming WiFi Motherboard Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack™ port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU isn’t present
Asus ROG Strix B550-F Gaming WiFi Motherboard The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technology to ensure faster and smarter network optimization.
|CPU||AMD AM4 Socket|
|Memory||3rd Gen AMD Ryzen™ Processors|
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
|Graphic||Integrated Graphics Processor|
1 x DisplayPort 1.2
1 x HDMI 2.1([email protected])
*Graphics specifications may vary between CPU types.
|Multi-GPU Support||Supports AMD 2-Way CrossFireX Technology|
|Expansion Slots||3rd Gen AMD Ryzen™ Processors|
1 x PCIe 4.0 x16 (x16 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode) *
3 x PCIe 3.0 x1
|Storage||Total supports 2 x M.2 slots and |
6 x SATA 6Gb/s ports
type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
|LAN||1 x Intel® 2.5Gb Ethernet|
|Wireless Data Network||2×2 Dual Band Wi-Fi 6E (802.11a/b/g/n/ac/ax) + BT5.2|
*BT 5.1 function will be ready in Windows 10 build 19041 or later.
|Audio||ROG SupremeFX 7.1-Channel|
High Definition Audio CODEC S1220A
Rear USB:Total 8 ports
Front USB:Total 6 port
|Software Features||ROG Exclusive Software|
– RAMCache III
– ROG CPU-Z
– GameFirst VI
– Sonic Studio III + Sonic Studio Virtual Mixer
– Sonic Radar III
– DTS® Sound Unbound
– Anti-virus software
ASUS Exclusive Software Features
– Aura Creator
– Aura Sync
– AI Noise Cancelling Microphone
AI Suite 3:
Fan Xpert 4
– EZ update
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
|ASUS Special Features||Aura Sync|
– Standard RGB header(s)
– Addressable Gen 2 RGB header(s)
– ASUS Q-DIMM
– ASUS Q-LED (DRAM [yellow],CPU [red],VGA [white], Boot Device [yellow green)
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS FlashBack™ button
-BIOS FlashBack™ LED
-Clear CMOS header
-Pre-mounted I/O shield
|Back I/O Ports||1 x Intel® I225-V 2.5Gb Ethernet|
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x BIOS FlashBack™ Button(s)
ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/acand Bluetooth v5.0)
|Internal I/O Ports||1 x CPU Fan connector(s)|
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
|BIOS||256 Mb Flash ROM, UEFI AMI BIOS|
|Manageability||WOL by PME, PXE|
|Operating System||Windows® 10 64-bit|
|Form Factor||ATX Form Factor|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
|Note||* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2,|
SATA6G_5/6 ports will be disabled.
