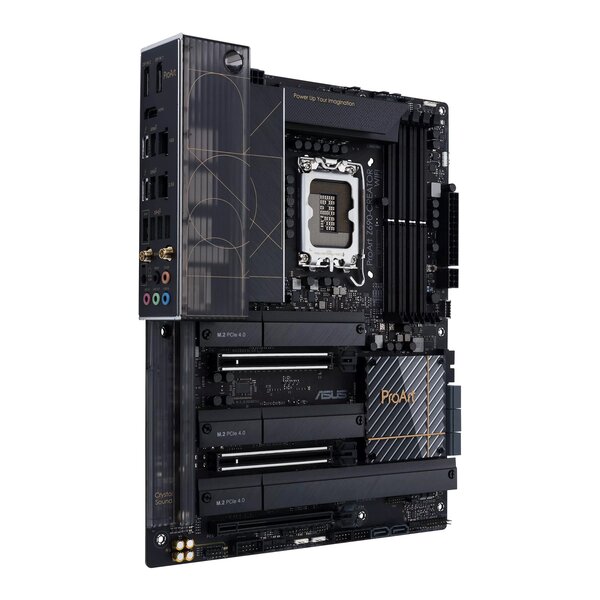

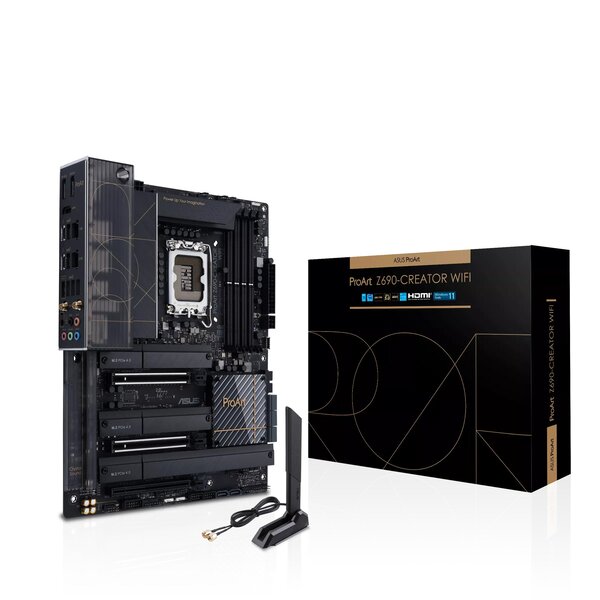

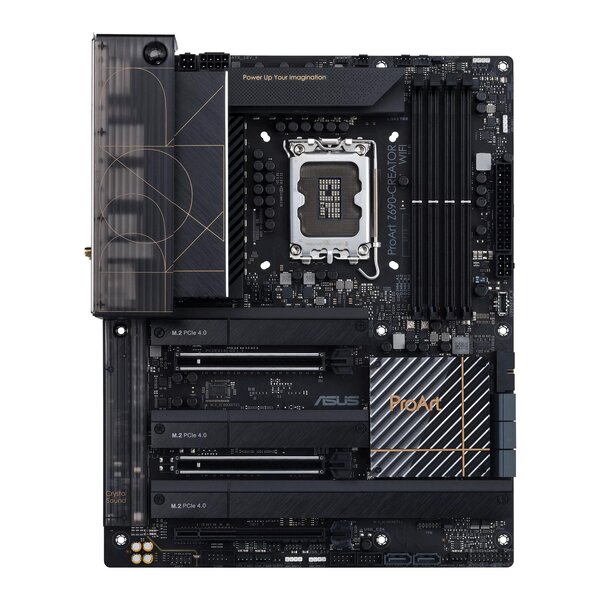

Asus ProArt Z690 Creator Wifi Motherboard
Features
- Intel® Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Future-proofed connectivity: Two Thunderbolt™ 4 Type-C® ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, four PCIe® 4.0 M.2 slots and a USB 3.2 Gen 2×2 front panel connector with Quick Charge 4+
- Next-gen performance: 16+1 power stages rated for 70 amps, PCIe 5.0 ready, and a DDR5 speed boost
- Intelligent optimization: ASUS-exclusive software and firmware that simplify setup and improve performance: AI Overclocking, AI Cooling, CreationFirst and Two-Way AI Noise-Cancelation Asus ProArt Z690 Creator Wifi
- Comprehensive thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, seven 4-pin PWM fan headers and an AIO pump header Asus ProArt Z690 Creator Wifi
- Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express Asus ProArt Z690 Creator Wifi
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability Asus ProArt Z690 Creator Wifi
Overview:
Your Powerhouse for Creativity
Asus ProArt Z690 Creator Wifi empowers creators of all levels by maximizing the performance of 12th Gen Intel® Core™ processors with powerful hardware and software, efficient cooling and lightning-fast connectivity including Thunderbolt™ 4, onboard 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E. Asus ProArt Z690 Creator Wifi
Next-Gen Performance
Asus ProArt Z690 Creator Wifi With tailored CPU power delivery and support for the latest high-performance memory, ProArt Z690-Creator WiFi easily handles the demands of the latest 12th Gen Intel® Core™ processors. It features an intelligent VRM design that’s rated for 70 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation, video rendering, and software compiling.
Comprehensive Cooling Design
Asus ProArt Z690 Creator Wifi Maintaining system stability under heavy loads is of paramount importance, so ProArt Z690-Creator WiFi features comprehensive cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Integrated premium components and multiple fan headers are also vital design elements that provide the best foundation for content creation systems. Asus ProArt Z690 Creator Wifi
Perfect for Content Creation
Asus ProArt Z690 Creator Wifi ProArt exclusive software utilities deliver intuitive system monitoring and networking enhancements that enable a smoother workflow. Industry-Leading Security Asus ProArt Z690 Creator Wifi
Trusted Stability
Asus ProArt Z690 Creator Wifi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.
Specifications
| CPU | Intel LGA1700 CPU |
| Chipset | Intel® Z690 Chipset |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s |
| Graphics | 1 x HDMI® port** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort*** and Thunderbolt™ video outputs**** |
| Expansion Slots | Intel® 12th Gen Processors* 2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel® Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) |
| Storage | Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s port |
| Ethernet | 1 x Intel® 2.5Gb Ethernet 1 x Marvell® 10Gb Ethernet ASUS LANGuard |
| Wi-Fi | Intel® Wi-Fi 6E Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 hardware ready** |
| USB | Rear USB:Total 8 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* – Impedance sense for front and rear headphone outputs – Internal audio Amplifier to enhance the highest quality sound for headphone and speakers – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback*” Audio Features – Power pre-regulator reduces power input noise to ensure consistent performance – Premium Japanese audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® port(s) 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) 2 x DisplayPort (Input only) 1 x HDMI® port 1 x ASUS Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 1 x Intel® 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack™ button |
| BIOS | 256 Mb |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
| Form Factor | ATX 30.5cm x 24.5cm |
| Warranty | 3 Years |
