Asus Prime Z690M Plus D4 Motherboard

18,889 (Inclusive of GST)

Available Models: PRIME-Z690M-PLUS-DDR4
Brand:

Out of stock

Email when back in stock

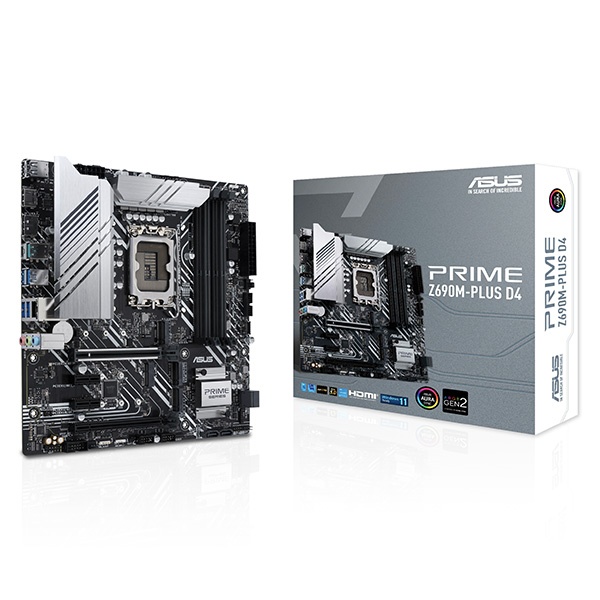

Asus Prime Z690M Plus D4 Motherboard



Asus Prime Z690M Plus D4

Features

Intel® Z690 (LGA 1700) mATX motherboard with PCIe® 5.0, three M.2 slots, 10+1 DrMOS, DDR4, HDMI®, DisplayPort™, Intel® 1 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header and Aura Sync RGB lighting
  • Intel® LGA 1700 socket: Ready for 12th gen Intel® processors
  • Enhanced power solution: 10+1 DrMOS, 4-pin+8-pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: DDR4, PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen 2×2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header

Specifications

CPUIntel LGA1700 CPU
ChipsetIntel® Z690 Chipset
Memory4 x DIMM, Max. 128GB, DDR4
Graphics1 x DisplayPort
1 x HDMI® port
Expansion Slots1 x PCIe 5.0/4.0/3.0 x16 slot
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
StorageSupports 3 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1 slot (Key M), type 2242/2260/2280
M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Ethernet1 x Intel® 1Gb Ethernet
Wi-FiM.2 slot only (Key E, CNVi & PCIe)
*Wi-Fi module is sold separately
USBRear USB:Total 8 ports
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)Front USB:Total 7 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports*
* USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
AudioRealtek 7.1 Surround Sound High
Back Panel I/O Ports1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Intel® 1Gb Ethernet port
3 x Audio jacks
BIOS192 (128+64) Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
Operating SystemWindows® 11 64-bit, Windows® 10 64-bit
Form FactormicroATX
24.4cm x 24.4cm
Warranty3 Years

Additional information

Weight5 kg
Brand

Asus

Socket

LGA1700

Chipset

Z690

Form Factor

M-ATX

Memory Slot

4 Slot

Platfrom

Intel

Available Models

PRIME-Z690M-PLUS-DDR4

EAN/UPC

4711081466062

Memory Slot Type

DDR4
