Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB 384 Bit Gaming Graphics Card
- 2nd Gen Ray Tracing Cores
- 3rd Gen Tensor Cores
- HoloBlack Design
- SPECTRA 2.0 RGB Lighting (compatible with external LED strip)
- IceStorm 2.0 Advanced Cooling
- Advanced Cooling with FREEZE Fan Stop
- Dual BIOS
- Metal RGB LED Backplate
- FireStorm Utility (Download HERE)
- NVIDIA NVLink (SLI-ready), VR Ready
The new ultimate is here with the Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB . Focused with function over form, the top-tier AMP Extreme Holo is equipped with the award-winning HoloBlack design and the most powerful lceStorm cooling system from ZOTAC GAMING.
GET FASTER PERFORMANCE WITH NVIDIA DLSS
MAX FPS MAX QUALITY. POWERED BY AI.
Get a performance boost with NVIDIA DLSS (Deep Learning Super Sampling). Al-specialized Tensor Cores on GeForce RTX.GPUs give your games a speed boost with uncompromised image quality. This lets you crank up the settings and resolution for an even better visual experience.
MAX FPS. MAX OUALITY. POWERED BY AI.
Ray tracing simulates how light behaves in the real world to produce the most realistic and immersive graphics for gamers and creators. Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB has 2nd generation RT Cores for maximum ray-tracing performance.
A more refined IceStorm 2.0 cooling system is purpose-built for wider coverage to keep the GPU cooler and running stronger, with enhancements in the visible and in what lies underneath.
More airflow exit routes across the GPU design including a direct pass-thru airflow vent, engineered possible with a tailor made short PCB, enables faster heat exhaust, reduces trapped heat, and reduces airflow turbulence for overall improved noise and thermal performance.

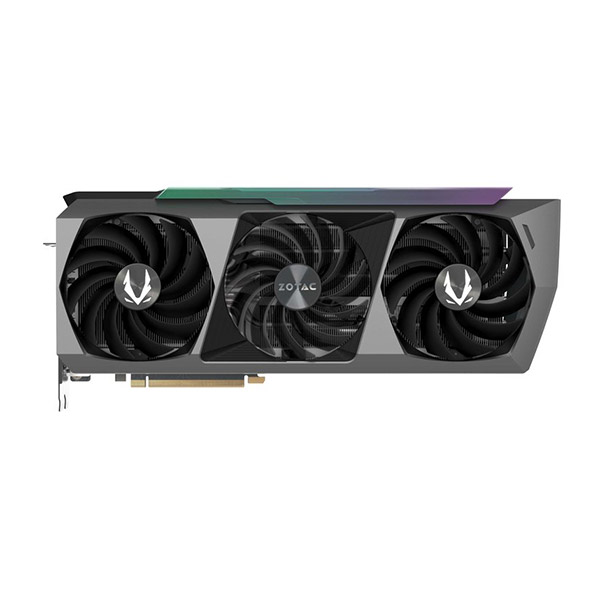

The Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB features the largest ever set of fans used with three 100mm fans for maximum airflow dynamics.
The 11-blade fan design of Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB increases static pressure and airflow by up to 10% compared to previous generation design.
DESIGNED TO COVER
A wider aluminum fin-stack array heatsink paired with up to eight copper heat pipes span beyond the length of the graphics card board to extract and distribute more heat, more efficiently for maximum cooling performance.
MORE SURFACE GONTACT
The heatpipes shift into a vertical layout as it crosses over the large aluminumn surface area baseplate which contact the GPU core. The vertical layout increases heatpipe to cold-block surface area contact by up to 72%, pushing for even more heat extraction.
The Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB features 8 precision machined copper heatpipes, the highest count of heatpipes used on ZOTAC GAMING GPUs, combined with a vapor chamber to ensure full coverage of the GPU surface area for maximum heat extraction.
Each copper heatpipe is made of composite layers consisting of a thicker envelope and a grooved wick with a multi-channel working fluid.
Sitting at a 3.5-slot GPU, the overall heatsink thickness increases 20% for even more surface area and stronger heat dissipation.
CRITICAL COMPONENT CONTACT
Memory and VRM modules make contact with the heatsink via premium thermal pads for cooling beyond just the GPU.
The design of the Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB underlines durability with a metal backplate with a retention mount to increase the overall card rigidity and reinforced support!
UNLEASH THE AURORA
The unique HoloBlack design feature on Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB embraces an iridescent holographic finish and exudes an aurora like glow. The design captivates your eyes with the dynamic SPECTRA 2.0 RGB lighting paths underneath.
SPECTRA 2.0 enables beautiful lighted colors and expressive animated options with powerful Addressable RGB LEDs. Set different lighting modes and colors for specific independent lighting zones, or as a synchronized whole. Tap into the ZOTAC GAMING FireStorm software to make the Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB graphics card yours with just a few clicks.
LIGHT IN HARMONY
A featured 3-pin RGB header on Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB enables an external RGB LED strip” to sync with the graphics card lighting.
*RGB strip not included
Switch between the dual BIOS for your preferred fan profile. Utilize the ZOTAC GAMING FireStorm utility to switch between the dual BIOS and select QUIET for lower noise performance with slightly warmer temperatures or AMPLIFY for lower temperatures with slightly higher noise levels.
18-3 POWER PHASE
Power design for extreme performance and stability. Spreading the load to 18 power phases means that no one power phase is overworked and building up too much heat. With more distribution of power, experience unparalleled stability.
FREEZE FAN STOP
Stopping the fans when the GPU is idle ensures efficient and quieter cooling. The smart control results in lower noise levels and reduces wear and tear on the fan system, extending fan longevity.
ACTIVE FAN CONTROL
Users have more control over the fans when using the FireStorm utility. Adjust fan rotations independently and apply ,increased airflow only to where and when it’s needed. On triple fan models, the LEFT and CENTER fans are grouped together and will spin at the same RPMs
With a sinmple and intuitive minimal interface, the ZOTAC GAMING FireStorm Utility provides simple tools to transform fine-tuning your Zotac RTX 3090 Ti AMP Extreme Core Holo 24GB into a simple task. Monitor your GPU, control the fan speed, adjust the SPECTRA supported RGB lighting, and many more options.
|GPU||GeForce RTX 3090 Ti|
|Video Memory||24GB GDDR6X|
|Engine Clock||Boost: 1860 MHz|
|Memory Clock||21 Gbps|
|PCI Express||4.0 16x|

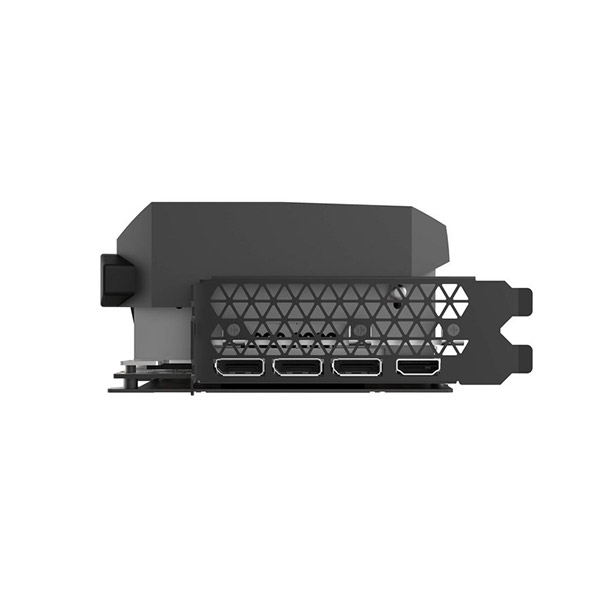

|Display Outputs||3 x DisplayPort 1.4a (up to 7680×4320@60Hz)|
1 x HDMI® Connector*
*Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1 Specification
|Multi Display Capability||Quad Display|
|Recommended Power Supply||850W|
|Power Input||PCI-e 5.0 12+4-pin (12-pin compatible)|
|Slot Size||3.5 slot|
|Supported OS||Windows 11 / 10 (64-bit, April 2018 update or later)|
|Card Length||355.9mm x 149.7mm x 63.9mm / 14″ x 5.89″ x 2.52″|
|Accessories||ZOTAC GAMING RGB GPU Support Bracket|
3-pin RGB Header Cable
3 x 8-pin to 12-pin cable
|Warranty||3 Years + 2 Years Extended (On Registration)|
Register your Warranty Here!
