Zotac RTX 3070 Ti AMP Extreme Holo 8GB 256 bit Gaming Graphics Card
- 2nd Gen Ray Tracing Cores
- 3rd Gen Tensor Cores
- HoloBlack Design
- SPECTRA 2.0 RGB Lighting (compatible with external LED strip)
- IceStorm 2.0 Advanced Cooling
- Active Fan Control with FREEZE Fan Stop
- Metal RGB LED Backplate
- Dual BIOS
- FireStorm Utility (Download HERE)
- VR Ready
The ultimate Zotac RTX 3070 Ti AMP Extreme Holo 8GB is here with the AMP Extreme Holo. Redesigned with function over form, the Zotac RTX 3070 Ti AMP Extreme Holo 8GB is the culmination of all current 30 Series features and design shifted towards performance.
A more refined lceStorm 2.0 cooling system is purpose-built for wider coverage to keep the GPU cooler and running stronger, with enhancements in the visible and in what lies underneath.
More airflow exit routes across the GPU design including a direct pass-thru airflow vent, which enables faster heat exhaust, reduces trapped heat, and reduces airflow turbulence for overall improved noise and thermal performance.

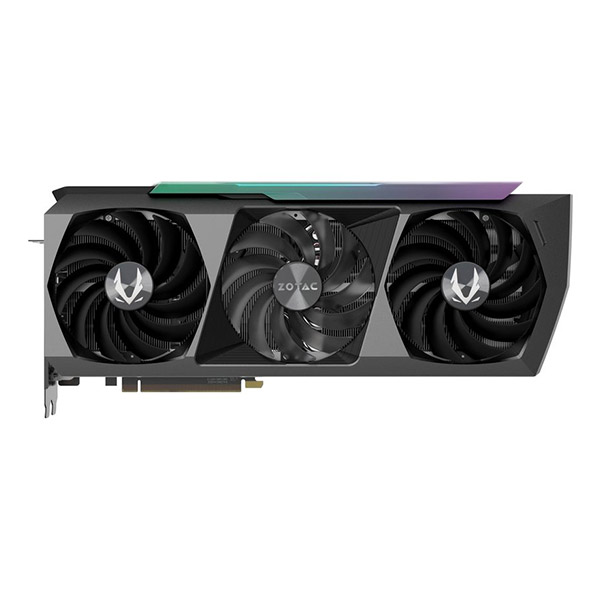

The Zotac RTX 3070 Ti AMP Extreme Holo 8GB features the largest ever set of fans used with 3 100mm fans for maximum airflow dynamics.
The 11-blade fan design in Zotac RTX 3070 Ti AMP Extreme Holo 8GB increases static pressure and airflow by up to 10% compared to previous generation design.
DESIGNED TO COVER
A wider aluminum fin-stack array heatsink sectioned in up to 3 groups, paired with up to eight copper heat pipes span beyond the length of the graphics card board to extract and distribute more heat, more efficiently for maximum cooling performance.
The optimized heatsink structure is sectioned into 3 distinct partitions to fully enfold the heatpipes for overall increased contact points with the aluminum heatsink fin-array.
A large copper surface baseplate ensure full coverage of the GPU surface area.
MORE SURFACE CONTACT
The heatpipes shift into a vertical layout as it crosses over the large aluminum surface area baseplate which contact the GPU core. The vertical layout increases heatpipe toa cold-block surface area contact by up to 72% pushing-for even more heat extraction.
The Zotac RTX 3070 Ti AMP Extreme Holo 8GB features 8 precision machined copper heatpipes. The highast count of heatpipes used in the history of ZOTAC GAMING GPUS to ensure maximum heat extraction.
Each copper heatpipe is made of composite layers consisting of a thicker envelope and a grooved wick whit a multi-channel working fluid.
Sitting at a 3-slot GPU, the overall heatsink thickness of Zotac RTX 3070 Ti AMP Extreme Holo 8GB increases 10% for even more surface area and stronger heat dissipation.
CRITICAL COMPONENT CONTACT
Memory and VRM modules make contact with the heatsink via premium thermal pads for cooling beyond just the GPU.

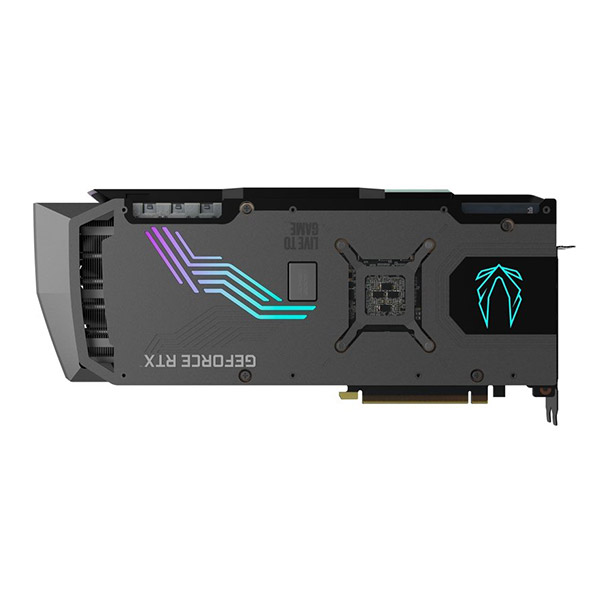

The design of the Zotac RTX 3070 Ti AMP Extreme Holo 8GB underlines durability with a metal backplate with a retention mount to increase the overall card rigidity and reinforced support.
UNLEASH THE AURORA

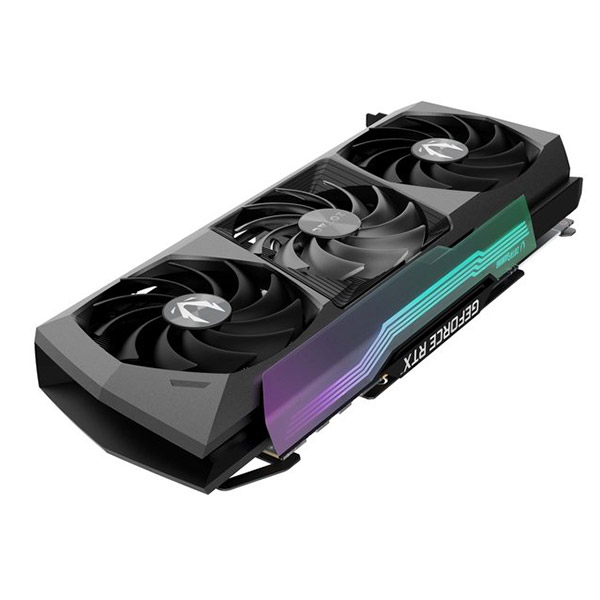

The unique HoloBlack design feature embraces an iridescent holographic finish and exudes an aurora like glow. The design captivates your eyes with the dynamic SPECTRA 2.0 RGB lighting paths underneath.
SPECTRA 2.0 enables beautiful lighted colors and expressive animated options with powerful Addressable RGB LEDs. Set different lighting modes and colors for specific independent lighting zones, or as a synchronized whole. Tap into the ZOTAC GAMING FireStorm software to make the Zotac RTX 3070 Ti AMP Extreme Holo 8GB graphics card yours with just a few clicks.
LIGHT IN HARMONY
A featured 3-pin RGB header enables an external RGB LED strip” to sync with the graphics card lighting.
*RGB strip not included
Switch between the dual BIOS for your preferred fan profile. Utilize the ZOTAC GAMING FireStorm utility to switch between the dual BIOS and select QUIET for lower noise performance with slightly warmer temperatures or AMPLIFY for lower temperatures with slightly higher noise levels.
16+2 POWER PHASE
Power design for extreme performance and stability. Spreading the load to 16 power phases means that no one power phase is overworked and building up too much heat. With more distribution of power, experience unparalleled stability.
A control chip providing live electrical current regulation and instant electrical deviation responses. POWERBOOST reduces ripple noise, minimizes power fluctuations, and has a high temperature tolerance, resulting ina longer lasting longevity.
FREEZE FAN STOP
Automatically enable efficient and quieter cooling by stopping the fans when the Zotac RTX 3070 Ti AMP Extreme Holo 8GB GPU is idle. The smart control results in lower noise levels and reduces wear and tear on the fan system, extending fan longevity.
ACTIVE FAN CONTROL
Users have more control over the fans when using the FireStorm utility. Adjust fan rotations independently and apply increased airflow only to where and when it’s needed.
*On triple fan models, the LEFT and CENTER fans are grouped together and will spin at the same RPMs
Ray tracing is the holy grail of gaming graphics.simulátiher the phiystdal behavior of laht to bring real-time, cinematic-quality rendering to even.the most visually intense games.
DLSS AI ACCELERATION
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS is groundbreaking AI rendering that boosts frame rates by 1.5X* or more with uncompromised image quality using the dedicated Al processing Tensor cores on GeForce RTX. This gives you the performance headroom to crank up settings and resolutions for an incredible visual experience. The Al revolution has arrived to gaming.
AI-POWERED PERFORMANCE BOOST
AI rendering on dedicated Tensor Cores gives you incredible performance, pushing up frame rates and giving you the headroom needed to maximize graphics settings and resolution, even up to 8K.
With a simple and intuitive minimal interface, the ZOTAC GAMING FireStorm Utility provides simple tools to transform fine-tuning your Zotac RTX 3070 Ti AMP Extreme Holo 8GB GPU into a simple task. Monitor your Zotac RTX 3070 Ti AMP Extreme Holo 8GB GPU, control the fan speed, adjust the SPECTRA supported RGB lighting, and many more options.
|GPU||GeForce RTX 3070 Ti|
|Video Memory||8GB GDDR6X|
|Engine Clock||Boost: 1890 MHz|
|Memory Clock||19 Gbps|
|PCI Express||4.0 16x|

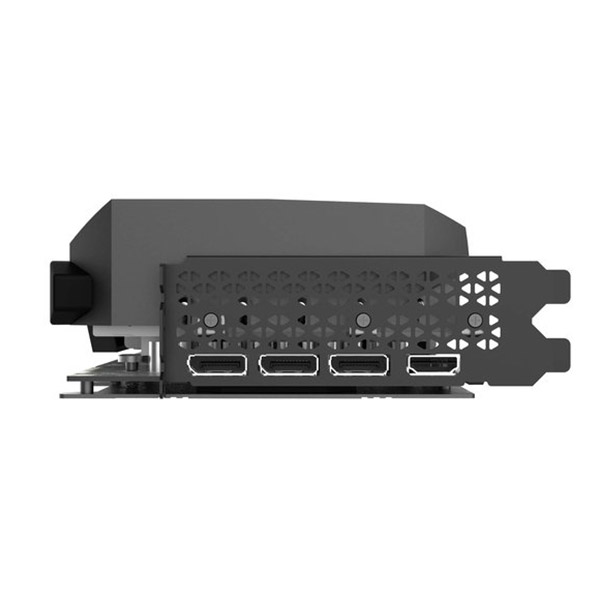

|Display Outputs||3 x DisplayPort 1.4a (up to 7680×[email protected])|
HDMI 2.1* (up to 7680×[email protected])
*Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS
|Multi Display Capability||Quad Display|
|Recommended Power Supply||750W|
|Power Input||2 x 8-pin, 1 x 6-pin|
|Slot Size||3 slot|
|Supported OS||Windows 10 64-bit (build 2004 or later)|
|Card Length||355.9mm x 145.7mm x 59.7mm / 14″ x 5.7″ x 2.4″|
|Accessories||ZOTAC GAMING RGB GPU Support Bracket|
3-pin RGB Header Cable
|Warranty||3 Years + 2 Years Extended (On Registration)|
