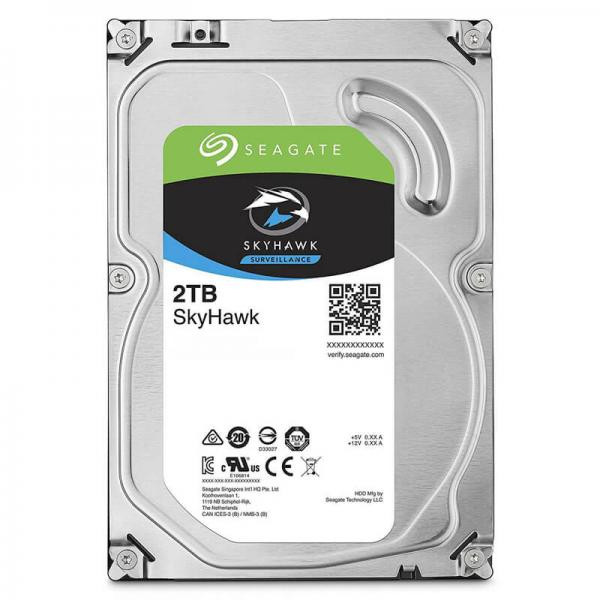

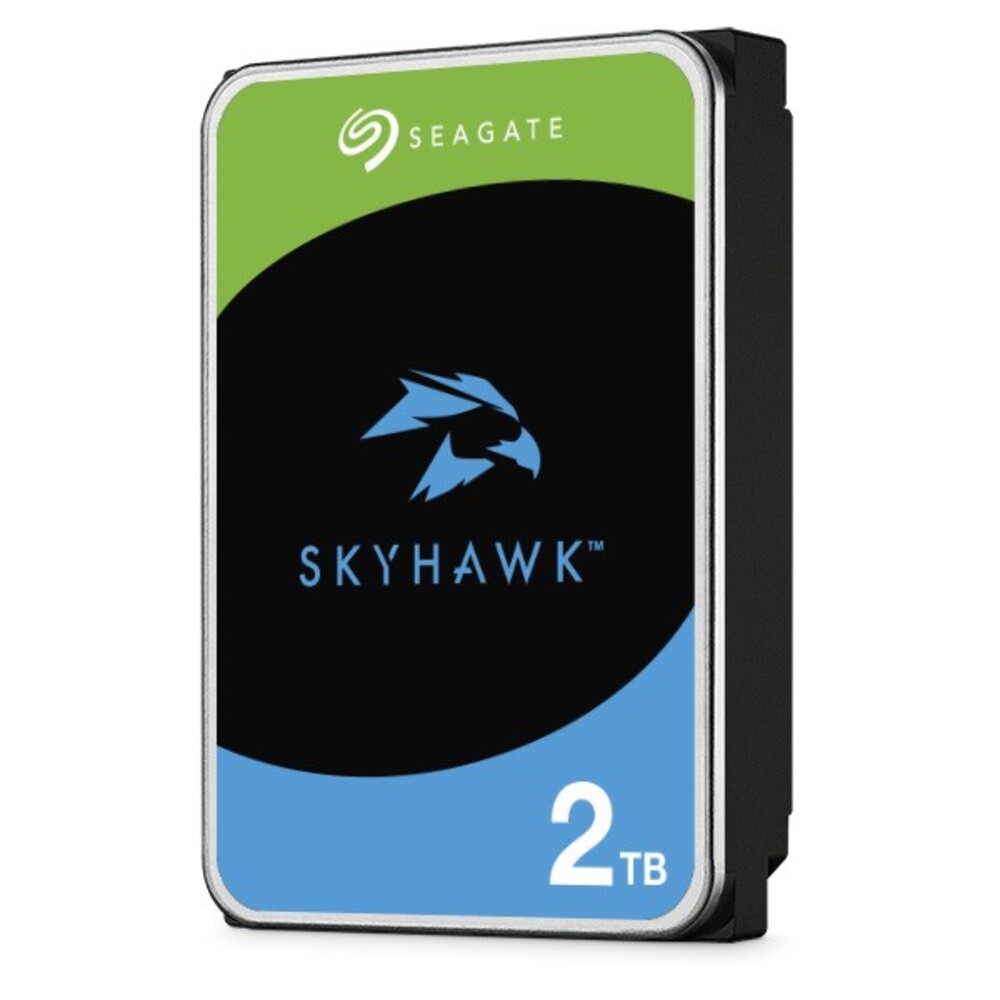

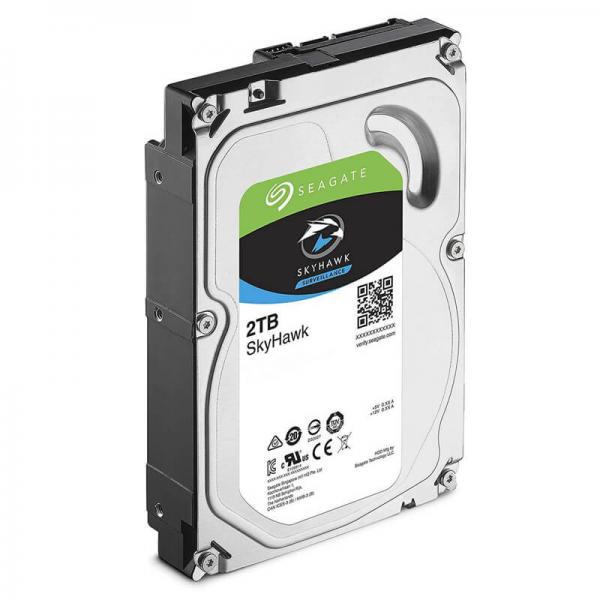

Seagate 2TB SkyHawk Surveillance 3.5 inch Hard Drive

4,399 (Inclusive of GST)

Key Advantages
ImagePerfect™ firmware is designed to ensure seamless video footage capture in
24×7 surveillance workloads
Included is RAID
RapidRebuild™, which provides 3× faster volume rebuilds over traditional RAID
rebuilds.
1 M hours MTBF, 3-year limited warranty

Brand:

Out of stock

Email when back in stock

SPECIFICATIONS

Model NumberST2000VX007
Formatted capacity (512 bytes/sector)2000GB (2TB)
Guaranteed sectors3,907,029,168
Heads2
Disks1
Bytes per sector (emulated at 512-byte sectors)4096 (physical)
Default sectors per track63
Default read/write heads16
Default cylinders16,383
Recording density (max)2294 kB/in
Track density (avg)540 ktracks/in
Areal density (avg)1203 Gb/in2
SATA interface transfer rate600 MB/s
Maximum data transfer rate180 MB/s
ATA data-transfer modes supportedPIO modes: 0 to 4
Multiword DMA modes: 0 to 2
Ultra DMA modes 0 to 6
Height (max)20.20mm / 0.795 in
Width (max)101.6mm (± 0.25) / 4.0 in (± 0.010)
Length (max)146.99mm / 5.787 in
Average latency6.0 ms
Standby to ready (typ)9.0s
Startup current (typical) 12V1.1A
Voltage tolerance (including noise)5V ±5% / 12V ±10%
Non-Operating (Ambient °C)–40° to 70°
Operating ambient temperature (min °C)
Operating temperature (drive case max °C)70°†
Temperature gradient20°C per hour max (operating)
30°C per hour max (non-operating)
Relative humidity5% to 90% (operating)
5% to 95% (non-operating)
Relative humidity gradient (max)30% per hour
Wet bulb temperature (max)30°C max (operating)
40°C max (non-operating)
Altitude, operating–304m to 3048m
(–1000 ft to 10,000 ft)
Altitude, non-operating
(below mean sea level, max)
–304m to12,192m
(–1000 ft to 40,000+ ft)
Operational shock (max)80 Gs (read) / 70 Gs (write) at 2ms
Non-operational shock (max)350 Gs at 2ms
Vibration, operating10Hz to 22Hz: 0.25 Gs, Limited displacement
22Hz to 350Hz: 0.50 Gs
350Hz to 500Hz: 0.25 Gs
Vibration, non-operating5Hz to 22Hz: 3.0 Gs
22Hz to 350Hz: 3.0 Gs
350Hz to 500Hz: 3.0 Gs
Idle***1.8 bels (typical)
1.9 bels (max)
Seek2.0 bels (typical)
2.1 bels (max)
Non-recoverable read errors1 per 1014 bits read
Load/unload cycles300,000 at 25°C, 50% rel. humidity
Supports hotplug operation per the
Serial ATA Revision 3.2 specification
Yes
Warranty3 Years



FEATURES



• 1M hour MTBF – designed for high write duty cycle across SkyHawk Lite
• ATA AV Command support – streaming video command support across SkyHawk Lite
• Best-in-class acoustic performance means virtually silent operation
• Built-in error recovery for non-stop video streaming
• Compliant with RoHS requirements in China and Europe
• Full-track multiple-sector transfer capability without local processor intervention
• Idle3 power mode support
• Low activity power
• Low-RPM spindle speed
• Native Command Queuing with command ordering to increase performance in demanding applications
• Performance-tuned for seamless video applications
• Reliability for 24×7 video surveillance applications
• SeaTools diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
• State-of-the-art cache and on-the-fly error-correction algorithms
• Streaming video optimization – consistent command completion times & ERC support across SkyHawk Lite
• Support for S.M.A.R.T. drive monitoring and reporting
• Supports up to 2 drive bays
• Supports ATA8 streaming commands
• Supports latching SATA cables and connectors
• Supports up to 32 HD cameras for recording and playback
• TGMR recording technology provides the drives with increased areal density.
• Thermal monitoring and reporting for 24×7 operations
• Transient power on management – <=1.1A spin-up current
• Uncompromising reliability supports flexible surveillance design with case temperatures up to 70ºC
• Workload ratings of 120TB/year
• Worldwide Name (WWN) capability uniquely identifies the drive

Additional information

Weight1 kg
Brand

Seagate

Form Factor

3.5 Inch

Series

Skyhawk

Capacity

2 TB

EAN/UPC

613310740797
