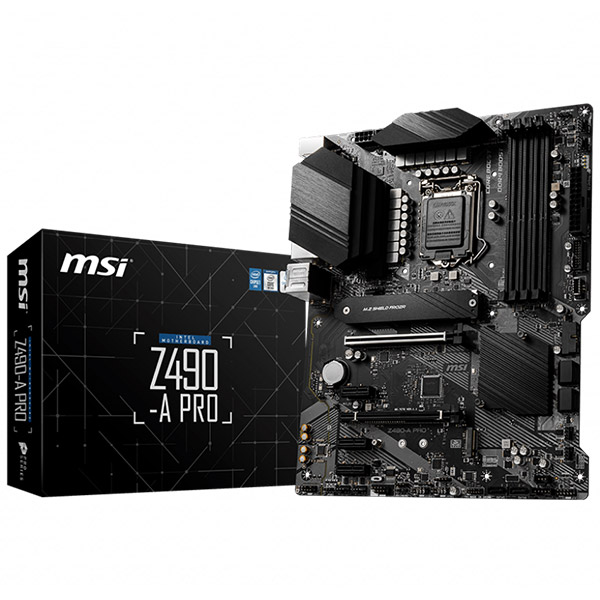

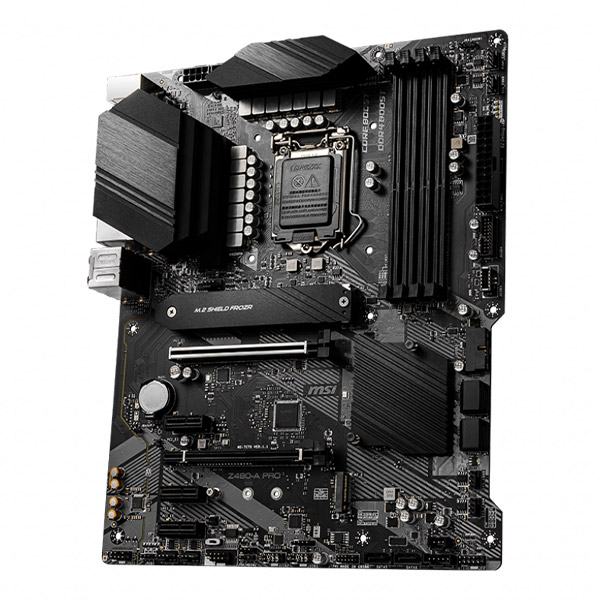

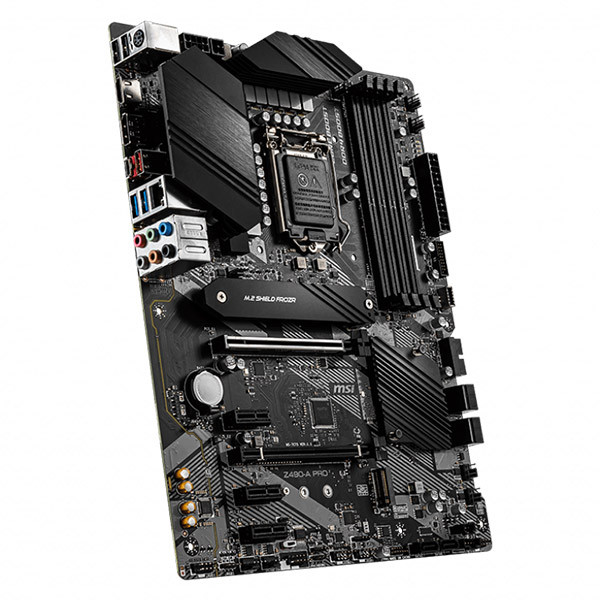

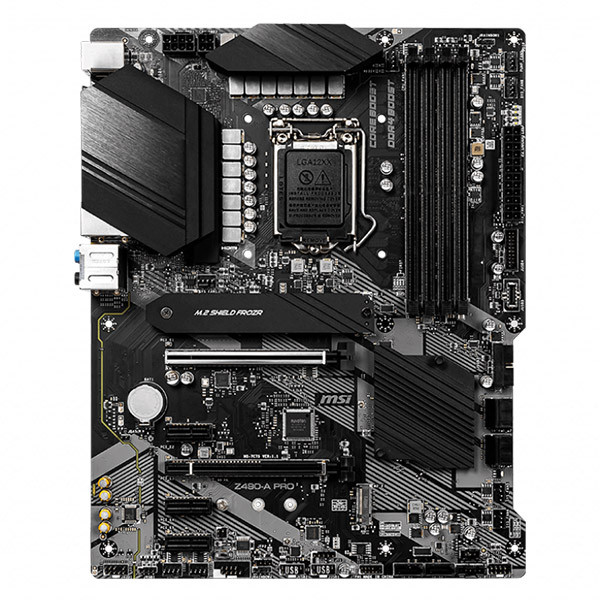

MSI Z490 A-Pro INTEL 10TH GENERATION Z490 ATX LGA 1200 Socket Gaming Motherboard
Overview :
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5000(OC) MHz
- Ready 4 the Future: Support Lightning Gen 4 Solution for the future
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- Multi-GPU: With Steel armor PCI-E slots. Supports 2-Way AMD Crossfire™
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.
M.2 SHIELD FROZR
Onboard M.2 thermal solution to keep M.2 SSDs safe while
preventing throttling, making them run cooler & faster.
8+4 Pin power supply
By providing 8+4 pin connectors to ensure adequate power
supply to unleash ultimate multi-core CPU performance.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better
network experience.
Core Boost
With premium layout and fully digital power design to support
more cores and provide better performance.
EZ Debug LED
Easiest way to troubleshoot.
Audio Boost
Reward your ears with studio grade sound quality for the most
immersive audio experience.
DDR4 Boost
Advanced technology to deliver pure data signals for the best
gaming performance and stability.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® Z490 Chipset |
| DDR4 MEMORY | 5000(OC)/ 4800(OC)/ 4600(OC)/ 4533(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) /2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 4 |
| MAX MEMORY (GB) | 128 |
| PCI-E X16 | 2 |
| PCI-E GEN | Gen3 |
| PCI-E X1 | 3 |
| SATAIII | 6 |
| M.2 SLOT | 2 |
| RAID | 0/1/5/10 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® RTL8125B 2.5G LAN |
| USB 3.2 PORTS (FRONT) | 1(Gen 1, Type C), 4(Gen 1, Type A) |

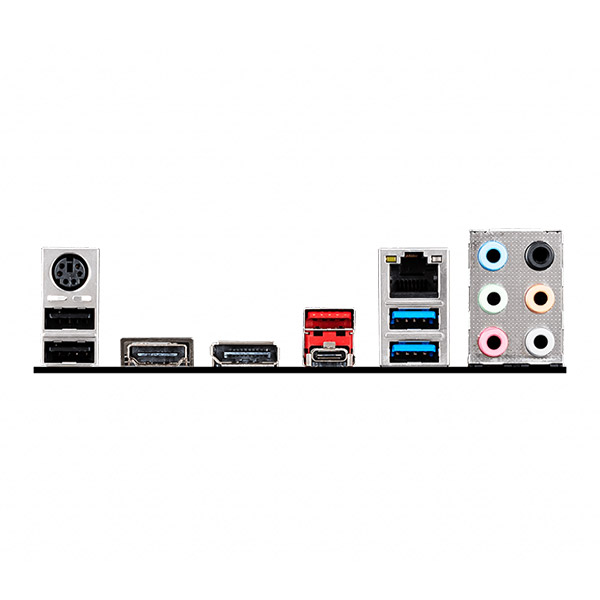

| USB 3.2 PORTS (REAR) | 1(Gen 2, Type C), 1(Gen 2, Type A), 2(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC892/ALC897 Codec |
| DISPLAYPORT | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | ATX |
| CROSSFIRE | Y |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
