MSI RTX 3080 SUPRIM X 10GB LHR GDDR6X 320-BIT GAMING GRAPHICS CARD
Features :
The MSI RTX 3080 SUPRIM X 10GB LHR delivers the ultra performance that gamers crave, powered by Ampere—NVIDIA’s 2nd gen RTX architecture. It’s built with enhanced RT Cores and Tensor Cores, new streaming multiprocessors, and superfast G6X memory for an amazing gaming experience.
- This GeForce RTX 3080 graphics card with LHR (lite hash rate) delivers 43 MH/s ETH hash rate (est.).
Boost Clock / Memory Speed
- 1905 MHz (GAMING & SILENT Mode) / 19 Gbps
- 10GB GDDR6X

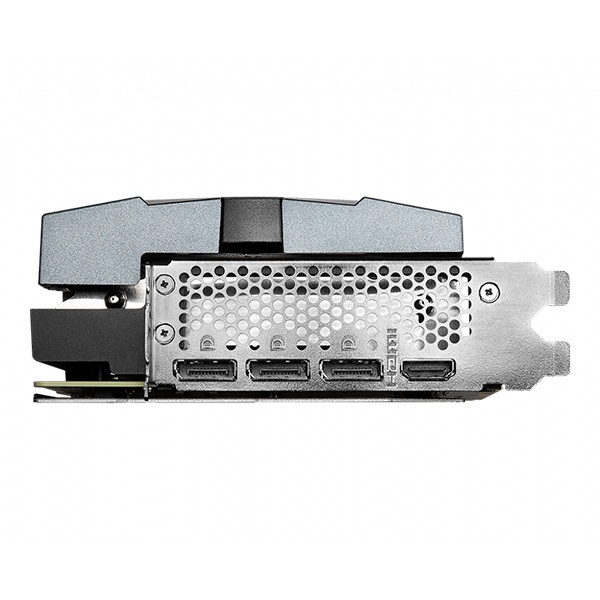

- DisplayPort x 3 (v1.4a)
HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1)
TRI FROZR 2S Thermal Design
- TORX Fan 4.0: A masterpiece of teamwork, fan blades work in pairs to create unprecedented levels of focused air pressure.
- Core Pipe: Precision-machined heat pipes ensure max contact to the GPU and spread heat along the full length of the heatsink.
- Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.
- Close Quarters Heatpipe & Heatsink: Memory modules have their own close quarters heatpipe and heatsink for dedicated cooling.
- Copper Baseplate: A solid nickel-plated copper baseplate transfers heat from the GPU to all the heatpipes.
Dual BIOS
- Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
MSI Center
- The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Mystic Light
- Controls lighting for both MSI and compatible third-party RGB products.
Overview :
CHANGE THE GAME
20 YEARS IN THE MAKING
While striving for the SUperior gaming experience, our PRofound journey across decades took us to destinations previously thought IMpossible. Across years of high-performance circuit design, MSI is proud to bring its latest masterpiece to life.
MSI RTX 3080 SUPRIM X 10GB LHR is the next leap in graphic cards design.
CHISELED TO PERFECTION
Built upon two decades of award-winning graphics cards, the time to evolve beyond Gaming has come. A new design philosophy takes shape to pave the way for a new prestigious series.
TRI FROZR 2S
NEVER LOSE YOUR COOL
TRI FROZR 2S stays cool in style. Thermals are kept in check in masterful ways under a sculpted MSI RTX 3080 SUPRIM X 10GB LHR exterior, letting you focus on enjoying your games in all their glory.
FOCUS ON WHAT’S IMPORTANT
TORX FAN 4.0 is a masterpiece built on teamwork, with pairs of fan blades linked together with a revolutionary ring design to focus airflow and air pressure into the heatsink.
VIP COOLING TREATMENT
Dedication yields results. The memory modutes get the private treatrment with their own dedicated close quarters heatpipe that runs to a dedicated heatsink.
FACING THE HEAT HEAD-ON
Heat from the MSI RTX 3080 SUPRIM X 10GB LHR GPU is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heatpipes. This widening of the thermal transfer systems with highly efficient mechanisms starting at the base improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-machined for maximum contact over the MSI RTX 3080 SUPRIM X 10GB LHR GPU and spread the heat along the full length of the heatsink for optimal cooling.
MASTERY OF EVERY DETAIL
Scrupulous attention to detail and an ability to adapt are key to conquering any challenge.
FROZEN IN PLACE
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.
UTTERLY UNSTOPPABLE
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions in zero noise.
THE FINISHING TOUCH
An abundance of thermal pads provide additional heat dissipation for board components.
COOL ALL AROUND

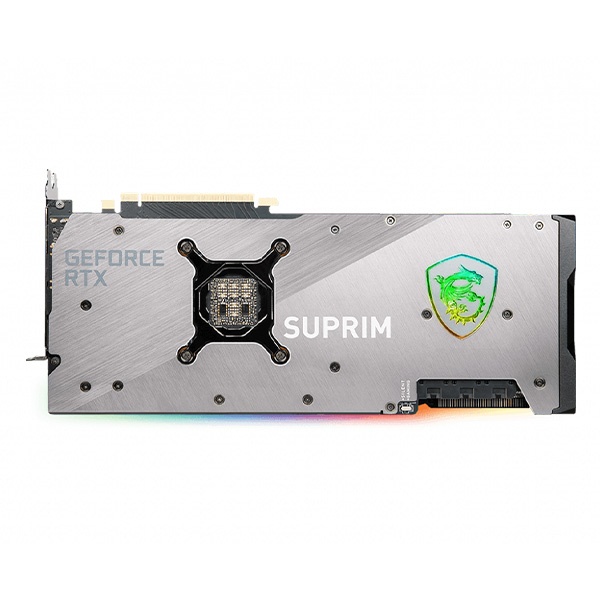

There’s more than meets the eye. Thermal pads beneath the sturdy brushed-finish metal backplate provide additional cooling.
TRUE POWER LIES WITHIN
From its foundations, MSI RTX 3080 SUPRIM X 10GB LHR is designed to withstand and channel raw power into glorious moments.
POWERING EVERY ADVENTURE
Go Big or Go Stealthy
Dual BIOS in MSI RTX 3080 SUPRIM X 10GB LHR gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
Hardened Defenses
MSI RTX 3080 SUPRIM X 10GB LHR has Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Upgraded Foundations
MSI RTX 3080 SUPRIM X 10GB LHR has thickened copper layer inside the PCB increases conductivity which improves heat dissipation and high-performance reliability.
DEFYING GRAVITY
Solid build quality in key areas is strengthened with a rigid metal anti-bending strap.
UNYIELDING SUPPORT
A bundled support holder provides additional graphics card reinforcement.
Specification :
| MODEL NAME | MSI RTX 3080 Suprim X 10GB LHR |
| GRAPHICS PROCESSING UNIT | NVIDIA® GeForce RTX™ 3080 |
| INTERFACE | PCI Express® Gen 4 |
| CUDA® CORES | 8704 Units |
| CORE CLOCKS | Extreme Performance: 1920 MHz (MSI Center) Boost: 1905 MHz (GAMING & SILENT Mode) |
| MEMORY SPEED | 19 Gbps |
| MEMORY | 10GB GDDR6X |
| MEMORY BUS | 320-bit |
| OUTPUT | DisplayPort x 3 (v1.4a) HDMI x 1 (Supports 4K@120Hz as specified in HDMI 2.1) |
| HDCP SUPPORT | Y |
| POWER CONSUMPTION | 370W |
| POWER CONNECTORS | 8-pin x 3 |
| RECOMMENDED PSU | 850 W |
| CARD DIMENSION (MM) | 336 x 140 x 61 mm |
| WEIGHT (CARD / PACKAGE) | 1882g / 3178g |
| DIRECTX VERSION SUPPORT | 12 API |
| OPENGL VERSION SUPPORT | 4.6 |
| MAXIMUM DISPLAYS | 4 |
| VR READY | Y |
| G-SYNC® TECHNOLOGY | Y |
| ADAPTIVE VERTICAL SYNC | Y |
| DIGITAL MAXIMUM RESOLUTION | 7680 x 4320 |
| WARRANTY | 3 Years |
