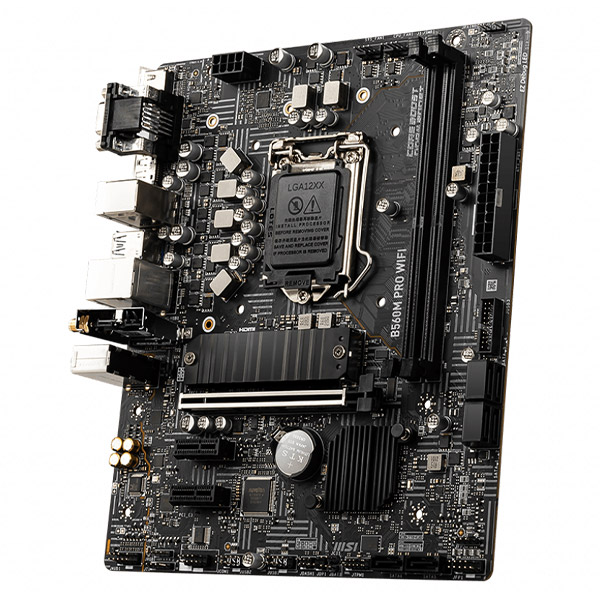

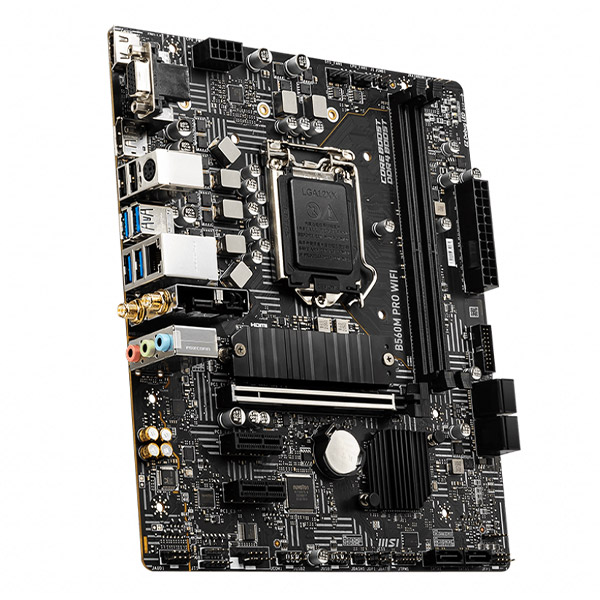

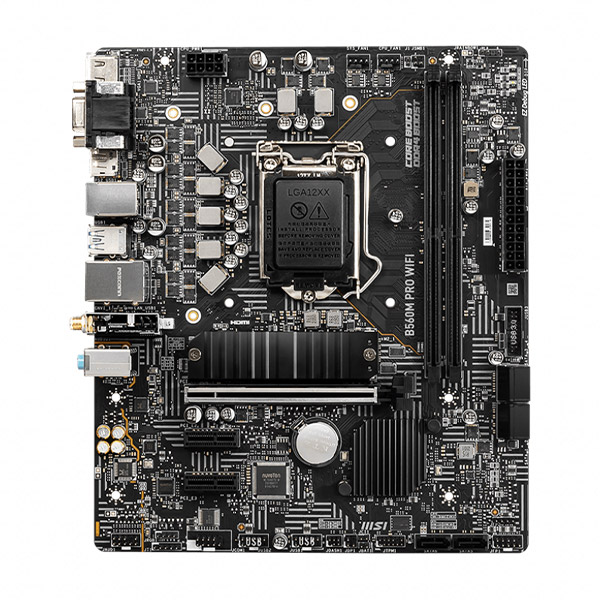

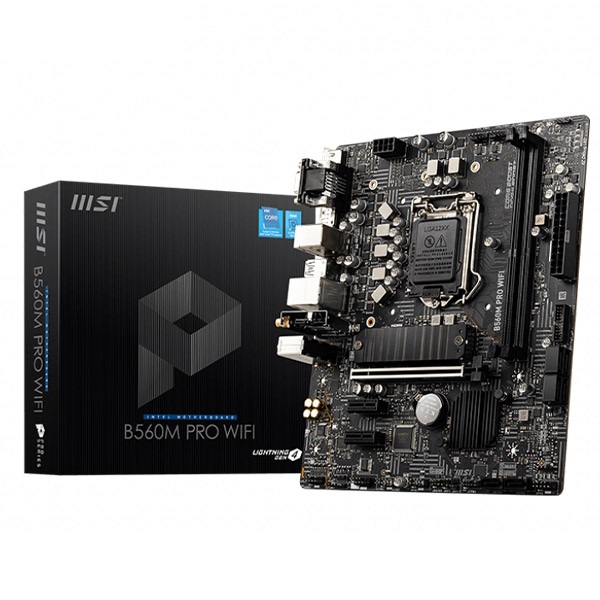

MSI B560M Pro WiFi INTEL 11TH GENERATION B560 ATX LGA 1200 Socket Gen4 Support Gaming Motherboard
Overview :
- Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
- Supports DDR4 Memory, up to 5200(OC) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance in MSI B560M Pro WiFi.
- DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
- Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- 2.5G LAN with LAN Manager and Intel Wi-Fi 6 AX Solution : Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost : Reward your ears with studio grade sound quality
- Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.
Lightning Gen4 Solution
The latest Gen4 PCI-E solution provided in MSI B560M Pro WiFi with up to 64GB/s bandwidth for maximum transfer speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
DDR4 Boost
MSI B560M Pro WiFi has advanced technology to deliver pure data signals for the best gaming performance and stability.
EZ Debug LED
Easiest way to troubleshoot.
2.5G Network Solution
Featuring premium 2.5G LAN with LAN manager to deliver better network experience.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Core Boost
MSI B560M Pro WiFi has premium layout and fully digital power design to support more cores and provide better performance.
Specifications :
| CPU (MAX SUPPORT) | i9 |
| SOCKET | 1200 |
| CHIPSET | Intel® B560 Chipset |
| DDR4 MEMORY | 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4533(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(JEDCE & POR) / 3000(JEDCE & POR) / 2933(JEDCE & POR) / 2800(JEDCE & POR) / 2666(JEDCE & POR) / 2400(JEDCE & POR) / 2133(JEDCE & POR) MHz |
| MEMORY CHANNEL | Dual |
| DIMM SLOTS | 2 |
| MAX MEMORY (GB) | 64 |
| PCI-E X16 | 1 |
| PCI-E GEN | Gen4 |
| PCI-E X1 | 2 |
| SATAIII | 6 |
| M.2 SLOT | 1 |
| TPM (HEADER) | 1 |
| LAN | 1x Realtek® 8125B 2.5Gbps LAN controller |
| WIFI & BLUETOOTH | Intel® Wi-Fi 6 AX201, Bluetooth 5.1 |

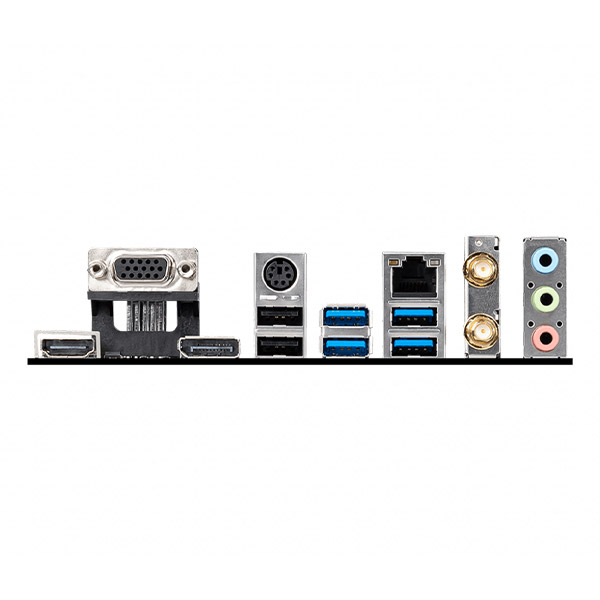

| USB 3.2 PORTS (FRONT) | 2(Gen 1, Type A) |
| USB 3.2 PORTS (REAR) | 4(Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) | 4 |
| USB 2.0 PORTS (REAR) | 2 |
| SERIAL PORTS(FRONT) | 1 |
| AUDIO PORTS (REAR) | Realtek® ALC897 Codec |
| DISPLAYPORT | 1 |
| VGA | 1 |
| HDMI | 1 |
| DIRECTX | 12 |
| FORM FACTOR | MATX |
| OPERATING SYSTEM | Support for Windows® 10 64-bit |
