Gigabyte Nvidia GeForce RTX 5070 Eagle OC SFF 12GB GDDR7 Triple Fan Graphics Card :
Overview :
The Gigabyte Nvidia GeForce RTX 5070 Eagle OC SFF 12GB GDDR7 Triple Fan Graphics Card is a compact yet powerful GPU designed for small form factor builds. Powered by NVIDIA’s Blackwell architecture and DLSS 4, Gigabyte Nvidia GeForce RTX 5070 Eagle OC SFF 12GB GDDR7 Triple Fan Graphics Card delivers exceptional graphics performance and AI-enhanced capabilities. The WINDFORCE cooling system with triple Hawk fans ensures optimal thermal performance, while the sleek design with customizable RGB lighting adds aesthetic appeal. Gigabyte Nvidia GeForce RTX 5070 Eagle OC SFF 12GB GDDR7 Triple Fan Graphics Card Features like Dual BIOS, reinforced structure, and a versatile VGA holder enhance durability and user experience.
Key Features :
GPU Architecture: NVIDIA Blackwell with DLSS 4 support
Memory: 12GB GDDR7, 192-bit interface
Cooling System: WINDFORCE with triple Hawk fans and vapor chamber
Lighting: RGB with 16.7M customizable colors
BIOS: Dual BIOS (Performance/Silent modes)
Build: Reinforced structure with metal backplate
Specifications :
| GPU | NVIDIA GeForce RTX 5070 (Blackwell architecture) |
| CUDA Cores | 6144 |
| Base Clock | 2325 MHz |
| Boost Clock | 2587 MHz |
| Memory | 12GB GDDR7 |
| Memory Interface | 192-bit |
| Memory Speed | 28 Gbps |
| Memory Bandwidth | 672 GB/s |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| PCI Express | PCIe 5.0 x16 |

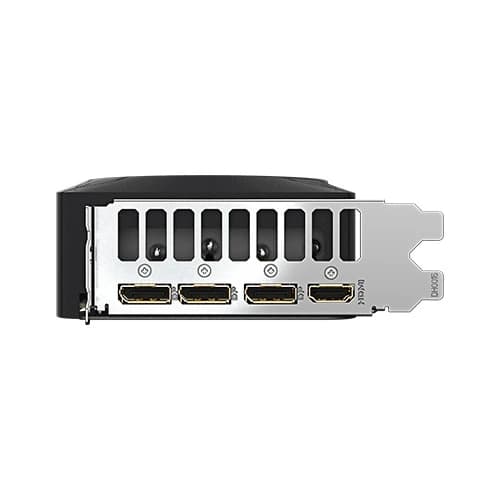

| Outputs | 3 x DisplayPort 2.1a, 1 x HDMI 2.1b |
| Max Resolution | 7680 x 4320 |
| Power Connectors | 1 x 16-pin (12VHPWR) |
| TDP | 250W |
| Recommended PSU | 750W |
| Dimensions (L x W x H) | 290 x 120 x 50 mm (Dual-slot) |
| Cooling System | WINDFORCE with triple Hawk fans and vapor chamber |
| RGB Lighting | 16.7M customizable colors |
| BIOS Modes | Dual BIOS (Performance/Silent) |
| Warranty | 3 years |
