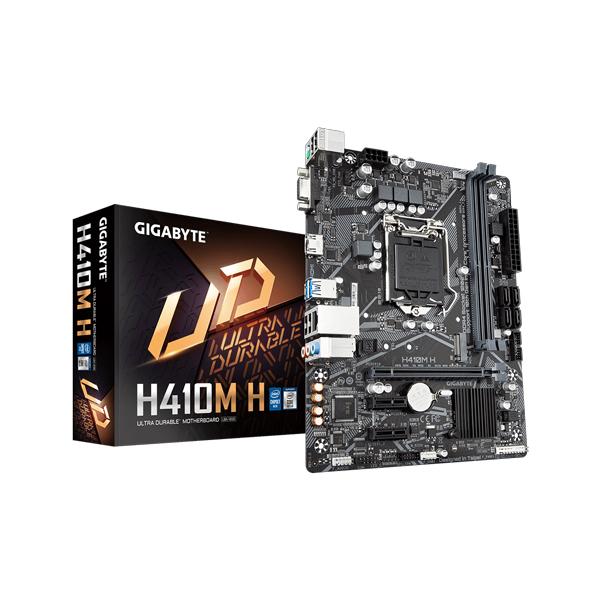

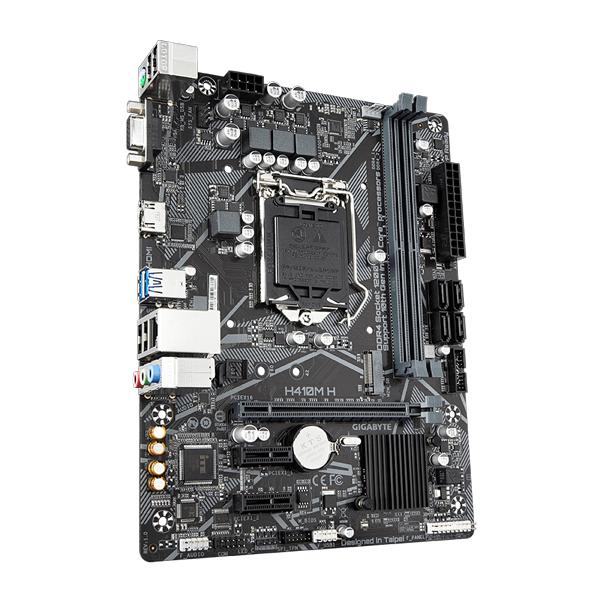

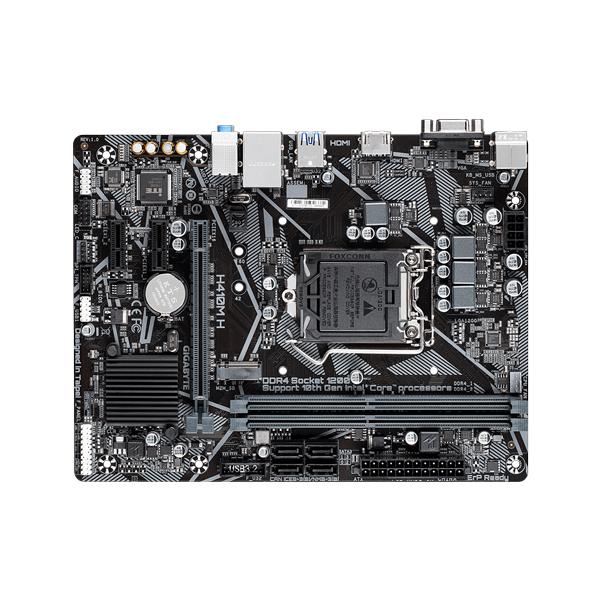

Gigabyte H410M H Motherboard

5,899 (Inclusive of GST)

Available Models: H410M-H
Brand:

Out of stock

Email when back in stock

Gigabyte H410M H Motherboard :

Features :

Intel® H410 Ultra Durable Motherboard with GIGABYTE 8118 Gaming LAN, Anti-Sulfur Resistor, Smart Fan 5
  • Supports 10th Gen Intel®Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

Specifications :

  • CPU
    1. Support for 10th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)

  • Chipset
    1. Intel® H410 Express Chipset
  • Memory
    1. Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    2. Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer “Memory Support List” for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    2. 1 x HDMI ports, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.

    Maximum shared memory of 512 MB

  • Audio
    1. Realtek® audio codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE’s website for details on configuring the audio software.
  • LAN
    1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
    2. 2 x PCI Express x1 slots
      (The PCI Express slots conform to PCI Express 3.0 standard.)

    Supports up to ASPM L1.2 power management protocols.

  • Storage Interface
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
      * Refer to “1-7 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.

  • USB

    Chipset:

    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x RGB LED strip header
    6. 4 x SATA 6Gb/s connectors
    7. 1 x M.2 Socket 3 connector
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x USB 3.2 Gen 1 header
    11. 1 x USB 2.0/1.1 header
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 1 x serial port header
    14. 1 x Clear CMOS jumper

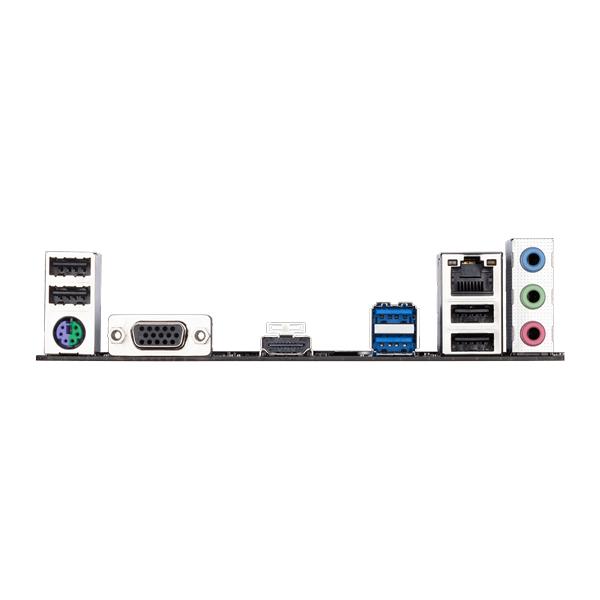

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 2 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    1. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 22.6cm x 17.4cm

Additional information

Weight5 kg
Brand

Gigabyte

Socket

LGA1200

Chipset

H410

Form Factor

M-ATX

Memory Slot

2 Slot

Platfrom

Intel

Available Models

H410M-H

EAN/UPC

4719331808884

Memory Slot Type

DDR4

Q & A

Is it compatible with i3-10105 10th Gen Generation and Adata XPG Spectrix RGB D60G 8GB 3200MHz DDR4 RAM? Please Answer. Swanit Sagar asked on February 3, 2022

Hello Mr Swanit,
Yes this motherboard support Intel i3-10105 Processor and XPG Memory
depending on you cpu limit you memory will run on 2133 or 2666 Mhz

Umar Gigani answered on February 3, 2022
