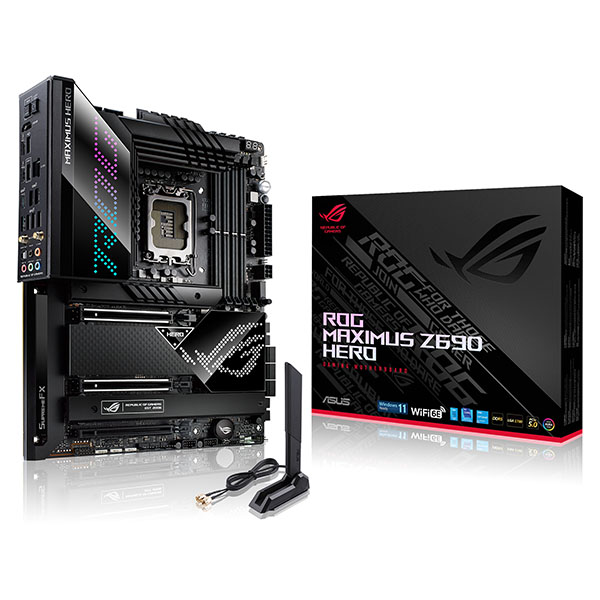

Asus ROG Maximus Z690 Hero MotherboarD
Features
Intel® Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2×2 front-panel connector, Dual Thunderbolt™ 4, PCIe® 5.0, Onboard WiFi 6E and Aura Sync RGB lighting
- Asus ROG Maximus Z690 Hero Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration
- Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
- Optimized Thermal Design: Cold forged heatsink, enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, penta M.2 heatsinks and dual with embedded backplates and ROG Water-Cooling Zone
- High Performance Networking: Onboard Wi-Fi 6E, Marvell® AQtion 10Gb, Intel® 2.5Gb Ethernet, and ASUS LANGuard
- Fastest Gaming Connectivity: PCIe® 5.0, Gen 5 M.2 slots, USB 3.2 Gen 2×2 front-panel connector with Thunderbolt™ 4 support, rear triple USB Type-C® ports
- Industry Leading Immersive Audio: Asus ROG Maximus Z690 Hero SupremeFX ALC4082 codec with ESS® ES9018Q2C DAC for high-fidelity audio
- Unmatched Personalization: AniMe Matrix™ LED display, 2” LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY Friendly Design: Pre-mounted I/O shield, PCIe slot Q-release, V-Latch switch, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, M.2 Q-Latch, SafeSlot, ROG Glavis and ROG graphics card holder
- Renowned Software: Asus ROG Maximus Z690 HeroBundled 1-year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Specifications
CPU | Intel LGA1700 CPU |
Chipset | Intel® Z690 Chipset |
Memory | 4 x DIMM, Max. 128GB, DDR5 |
Graphics | 1 x HDMI® port** 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt |
Expansion Slots | 2 x PCIe 5.0 x16 slots 1 x PCIe 4.0 x16 slot |
Storage | Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports |
Ethernet | 1 x Intel® 2.5Gb Ethernet |
Wireless & Bluetooth | Intel® Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Bluetooth v5.2 |
USB | Rear USB: Total 11 ports 2 x Thunderbolt™ 4 ports (2 x USB Type-C®) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 9 ports 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® ports 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | ATX 30.5cm x 24.4cm |
Warranty | 3 Years |
