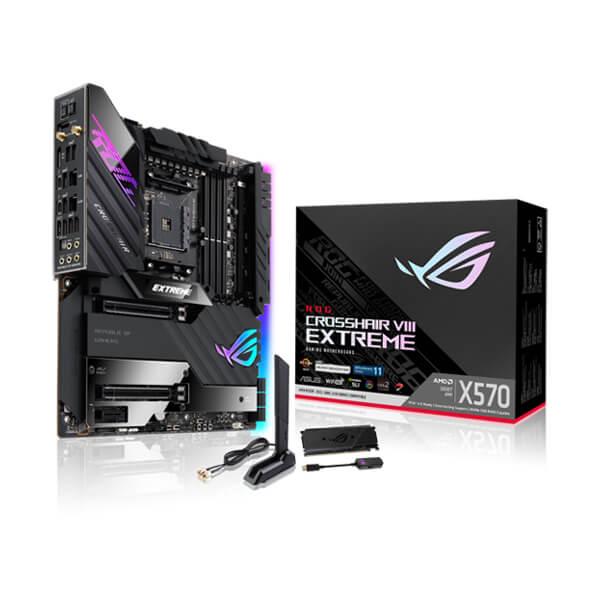

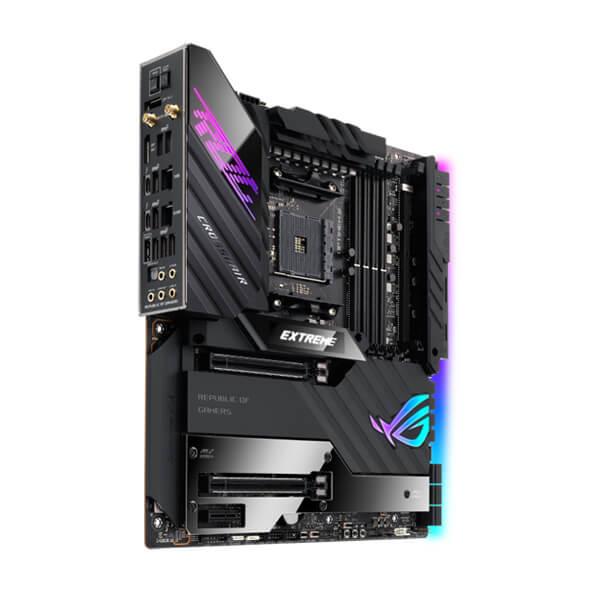

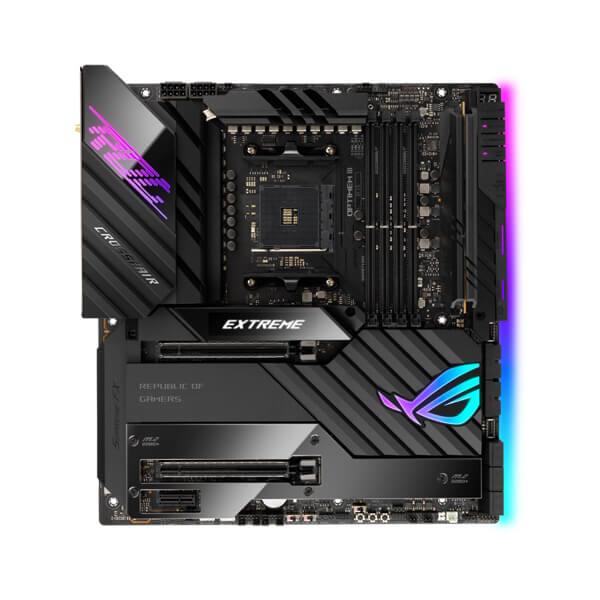

Asus ROG Crosshair VIII Extreme Wi-Fi Motherboard
Features:
- AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors; also supports up to two M.2 drives and features USB 3.2 Gen 2 and AMD StoreMI to maximize connectivity and speed
- Comprehensive thermal design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, five M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone.
- Robust power delivery: 18+2 power stages rated for 90 A, ProCool II power connectors, microfine alloy chokes and 10K Japanese-made black metallic capacitors
- High-performance connectivity: USB 3.2 Gen 2×2 front-panel with PD3.0 60W fast charging, onboard WiFi 6E, Marvell® AQtion 10 Gb Ethernet, Intel® 2.5 Gb Ethernet, and ASUS LANGuard.
- Industry-leading gaming audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC and the bundled ROG Clavis USB digital-to-analog converter for high-fidelity sound.
- Unmatched personalization: 2ʺ LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
- DIY-friendly design: Bundled ROG Fan Controller, pre-mounted I/O shield, V_Latch switch, BIOS FlashBack™, M.2 Q-Latch, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
- Renowned software: Bundled 1-year AIDA64 Extreme subscription
Overview:
PERFORMANCE
ASUS Advanced engineering and menacing power lay the foundation for the ROG Crosshair VIII Extreme to thrive where others choke. Asus ROG Crosshair VIII Extreme Wi-Fi
COOLING
Heavyweight cooling keeps onboard components and high-performance M.2 drives chilled without requiring direct airflow to deal with the thermal onslaught. Asus ROG Crosshair VIII Extreme Wi-Fi
CONNECTIVITY
Advanced connectivity features including WiFi 6E and two Ethernet ports provide all the bandwidth needed for smooth online and LAN gameplay. File transfers and load times get a boost as well, thanks to a front-panel USB 3.2 2×2 header. The header also supports PD 3.0 60-watt power delivery for charging devices. Additionally, there’s onboard SupremeFX audio for rich, premium sound. Asus ROG Crosshair VIII Extreme Wi-Fi
OPTIMIZATION
The ROG Crosshair VIII Extreme provides all the tools needed to quickly and easily optimize any system. Asus ROG Crosshair VIII Extreme Wi-Fi
Specifications:
| Model | ROG CROSSHAIR VIII EXTREME |
| CPU | AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors AMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors* |
| Chipset | X570 |
| Memory | AMD Ryzen™ 5000 and 3000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory AMD Ryzen™ 5000 G-Series and 4000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory AMD Ryzen™ 2000 Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors 4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory Dual Channel Memory Architecture OptiMem III Asus ROG Crosshair VIII Extreme Wi-Fi |
| Graphics | 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs |
| Expansion Slots | AMD Ryzen™ 5000 and 3000 Series Desktop Processors 2 x PCIe 4.0 x16 SafeSlots (support x16, x8/x8) AMD Ryzen™ 5000 G-Series, 4000 G-Series and 2000 series Desktop Processors 2 x PCIe 3.0 x16 SafeSlots (support x16, x8/x8) AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors 1 x PCIe 3.0 x16 SafeSlot (supports x8) AMD X570 chipset 1 x PCIe 3.0 x1 Asus ROG Crosshair VIII Extreme Wi-Fi |
| Multi-GPU Support | NVIDIA 2-Way SLI® Technology* * Support varies with different graphics cards |
| Storage | Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports AMD Ryzen™ 5000 and 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 & SATA modes) M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 4.0 x4 mode) AMD Ryzen™ 5000 G-Series. 4000 G-Series, 2000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes) M.2_2/3 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 mode) AMD Ryzen™ 3000 G-Series and 2000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280, (supports PCIe 3.0 x4 & SATA modes) AMD X570 chipset DIMM.2_1/2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 6 x SATA 6Gb/s ports Asus ROG Crosshair VIII Extreme Wi-Fi |
| Ethernet | 1 x Intel® 2.5Gb Ethernet 1 x Marvell® 10Gb Ethernet 1 x Intel® I225-V 2.5Gb Ethernet 1 x Marvell® AQtion AQC113CS 10Gb Ethernet ASUS LANGuard Asus ROG Crosshair VIII Extreme Wi-Fi |
| Wireless & Bluetooth | Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulations may vary between countries, and function will be ready in Windows 11 or later. Asus ROG Crosshair VIII Extreme Wi-Fi |
| USB | Rear USB: Total 10 ports Total 10 ports AMD Ryzen™ 5000, 5000 G-Series, 4000 G-Series and 3000 Series Desktop Processors 4 x USB 3.2 Gen 2 ports (4 x Type-A) AMD Ryzen™ 3000 G-Series, 2000 Series and 2000 G-Series Desktop Processors 4 x USB 3.2 Gen 1 ports (4 x Type-A) AMD X570 chipset 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support 4 x USB 3.2 Gen 2 ports (4 x Type-A) Total 10 ports 1 x USB 3.2 Gen 2×2 connector(s) (support(s) USB Type-C®, PD 3.0 up to DC 5V/3A 60W fast charging technology)* 1 x USB 3.2 Gen 2 Front Panel connector(s) (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports *Please connect the 6-pin PCIe Graphics Card/ PD 3.0 connector to get the full power delivery up to 20V/3A Asus ROG Crosshair VIII Extreme Wi-Fi |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – ESS® SABRE9018Q2C DAC/AMP – LED-illuminated audio jacks – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Audio cover” Asus ROG Crosshair VIII Extreme Wi-Fi |
| Back Panel I/O Ports | 2 x Thunderbolt™ 4 USB Type-C® port(s) 2 x DisplayPort IN ports for Thunderbolt™ 4 8 x USB 3.2 Gen 2 port(s) (8 x Type-A) 1 x ASUS Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 1 x Marvell® AQtion AQC113CS 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
| Internal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) 2 x 4-pin Radiator Fan header(s) 2 x W_PUMP+ header(s) 1 x WB_SENSOR header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card/ PD 3.0 connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (support(s) USB Type-C®, PD 3.0 up tp DC 5V/3A 60W fast charging technology) 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x AURA Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 6 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD switch 2 x RSVD header 1 x V_Latch 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
| Special Features | Extreme OC Kit – FlexKey button – LN2 Mode – Probelt – ReTry button – Safe boot button – Start button – Slow Mode Extreme Engine Digi+ – 10K Black Metallic Capacitors – MicroFine Alloy Choke ASUS Q-Design – M.2 Q-Latch – Q-Code – Q-Connector – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – M.2 heatsink backplate – M.2 heatsink – VRM heatsink design ASUS EZ DIY – BIOS FlashBack™ button – Clear CMOS button – ProCool II – Pre-mounted I/O shield – SafeSlot AURA Sync – ROG AURA sync backplate – AURA RGB header(s) – Addressable Gen 2 RGB header(s) Asus ROG Crosshair VIII Extreme Wi-Fi Dual BIOS OLED 2″ ASUS HYDRANODE – 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) – 2 x USB 2.0 port support* (USB_EP1, USB_EP3) * Visit ASUS Website for the latest compatibility list. Asus ROG Crosshair VIII Extreme Wi-Fi |
| Software Features | ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate – AIDA64 Extreme (1 year full version) – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation – OLED Display AI Suite 3 – 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ Power Control Fan Xpert 4 Turbo app DAEMON Tools MyAsus WinRAR UEFI BIOS ASUS EZ DIY Asus ROG Crosshair VIII Extreme Wi-Fi – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode Dynamic OC Switcher Asus ROG Crosshair VIII Extreme Wi-Fi |
| BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables 1 x 1-to-3 ARGB splitter cable 2 x 1-to-4 fan splitter cable 1 x RGB extension cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controlle r 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape Asus ROG Crosshair VIII Extreme Wi-Fi 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 ROG CLAVIS DAC 1 x ROG CLAVIS DAC 1 x CLAVIS DAC manual Miscellaneous 1 x ASUS Wi-Fi moving antennas 2 x M.2 SSD screw package(s) 1 x Q-connector 1 x ROG key chain 1 x ROG Graphics card holder 1 x ROG logo plate stickers 1 x ROG screwdriver 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User manual Asus ROG Crosshair VIII Extreme Wi-Fi |
| Operating System | Windows 10 64bit Windows® 11 ready Windows® 10 64bit Asus ROG Crosshair VIII Extreme Wi-Fi |
| Form Factor | Extended ATX 30.5cm x 27.7cm |
| Warranty | 3 Years |
